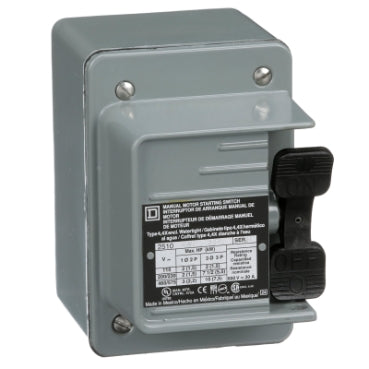

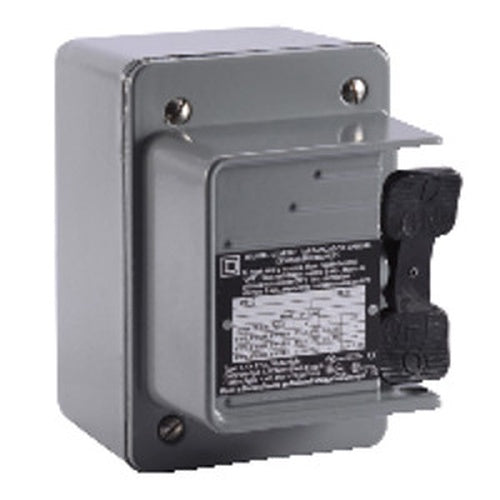

2510KW1 | Single Unit Manual Switch, 30A, NEMA 4, 2-Pole, Toggle Operated, No Indicator, 600VAC | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 2510KW1
Overview
Details for 2510KW1
Single Unit Manual Switch, 30A, NEMA 4, 2-Pole, Toggle Operated, No Indicator, 600VAC
Single Unit Manual Switch- Line Rated Current: 30A
- Motor Power HP: 3 HP at 460V AC; 2 HP at 230V AC, 115V AC; 3 HP at 575V AC; 1 HP at 90V DC; 2 HP at 115V DC, 1.5 HP at 230V DC
- System Voltage: 600V AC, 230V DC
- Poles Description: 2-Pole
- Control Type: Toggle Switch
- Number of Phases: 1-Phase
- Local Signaling: No Indicator
- Motor Starter Type: Non-Reversing
- Electrical Connection: Screw Clamp Terminals
Specifications
- Product
- Single Unit Manual Switch
- Type
- K
- Current Rating
- 20 A
- Cable Entry
- 0.75 NPT (bottom)
- Horsepower Rating
- 2 hp 115 V AC;2 hp 230 V AC;3 hp 460 V AC;3 hp 575 V AC;1 hp 90 V DC;2 hp 115 V DC;1.5 hp 230 V DC
- Maximum Voltage Rating
- 600 V AC;230 V DC
- Number of Poles
- 2P
- Control Unit Type
- Toggle
- Number of Phases
- 1 phase
- Pilot Light
- No indicator
- Starter Type
- Non reversing
- Electrical Connection
- Screw clamp terminals
- Wire Gauge
- AWG 14...AWG 10 copper
- Height
- 4.38 in (111.25 mm)
- Width
- 3 in (76.20 mm)
- Depth
- 4.25 in (107.95 mm)
- Certifications
- UL listed file E42243 CCN NLRV;CSA LR25490 class 3211 05
- NEMA Enclosure Rating
- NEMA 4 die cast zinc alloy standard size
- Category
- 21102-2510;2511;2512 K
- Discount Schedule
- CP1
- GTIN
- 785901554714
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.70 in (9.4 cm)
- Package 1 Width
- 4.80 in (12.2 cm)
- Package 1 Length
- 5.39 in (13.7 cm)
- Package 1 Weight
- 2.91 lb(US) (1.32 kg)
- Warranty
- 18 months
