O10-1419 | TEMPERATURE CONTROL O10-1419 RANCO TEMPERATU | Ranco / Robertshaw
The Ranco® Wide Range O Series Temperature Controls provide a wide selection of controls customized to allow users exact adjustments within manufacturers' limits. The Ranco O Series features heavy-duty plated steel frames, non-conductive covers with front-located captive cover screws, raised screw terminals for fully accessible wiring, and large easy-to-read scales. Recognizing the need for flexibility in design of refrigeration equipment, these controls offer a wide selection for such products as self-contained refrigerators, freezers, coolers, walk-in units, and refrigeration display cases.

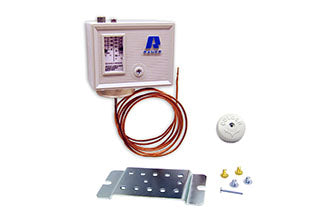

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to O10-1419
Documents and manuals
Robertshaw O10-1419 Documents
Electrical Rating Diagram O Series2019 Uni-Line Product Catalog in English2019 Uni-Line Product Catalog in Spanish2018 Uni-Line Product Catalog in Portuguese2019 Uni-Line Product Catalog in French2018 Uni-Line Product Catalog in German2018 Uni-Line Product Catalog in ItalianRobertshaw Comprehensive Global SolutionsRobertshaw Soluciones Integrales GlobalesRobertshaw Soluções globais abrangentes More Info
Overview
Details for O10-1419
O Series Temperature Controls
The Ranco® Wide Range O Series Temperature Controls provide a wide selection of controls customized to allow users exact adjustments within manufacturers' limits. The Ranco O Series features heavy-duty plated steel frames, non-conductive covers with front-located captive cover screws, raised screw terminals for fully accessible wiring, and large easy-to-read scales. Recognizing the need for flexibility in design of refrigeration equipment, these controls offer a wide selection for such products as self-contained refrigerators, freezers, coolers, walk-in units, and refrigeration display cases.Features and Benefits
- Maximum adjustment accuracy with 7 revolution range adjustment screws
- NEMA 1 enclosure with non-conductive cover
- Universal mounting and compact design
- Laser-welded bellows for extended life
- Wide range adjustable differential
The O60 Series have these additional features:
- 10 times setting sensitivity of most other wide range controls (O60 series only)
- Gas-filled, nonposition-sensitive bulb (O60 series only)
Specifications
Item Number | O10-1419 |
Brand | Robertshaw |
010-1044 | RANCO |
010-1048 | RANCO |
010-1419-070 | RANCO |
010-1419 | RANCO |
010-1470 | RANCO |
010-1875 | RANCO |
010-1938 | RANCO |
010-2015 | RANCO |
0101419 | RANCO |
016-5921 | RANCO |
3516166 | DELFIELD (ALCO FOOD) |
3830 | INTERNATIONAL COLD |
44969-1 | RHEEM SCIENTIFIC PRO |
5058472 | TYLER REFRIGERATION |
511010-A | UNIVERSAL COOLER CO. |
66201392237 | UNI-LINE |
7A7067 | MCCRAY REFRIG.CO. |
92237 | UNI-LINE |
9997-207 | UNI-LINE |
B-6876-1 | RHEEM SCIENTIFIC PRO |
C-18142 | PERLICK CO. |
Capillary Length | 72" |
Comments | Differential at low end of range is 6 to 25 |
Differential | 3°F to 20°F |
G2-1228 | RANCO |
O10-1044 | RANCO |
O10-1048 | RANCO |
O10-1419-070 | Invensys Climate Controls |
O10-1470 | RANCO |
O10-1875 | RANCO |
O10-1938 | RANCO |
O10-2015 | RANCO |
O101419 | RANCO |
O16-5921 | RANCO |
Series Application | Extra Low Temperature Controls |
Switch | SPST-Opens Low |
Temperature Range | -35°F to 15°F |
