O10-1418 | TEMPERATURE CONTROL O10-1418 RANCO TEMPERATU | Ranco / Robertshaw
The Ranco® Wide Range O Series Temperature Controls provide a wide selection of controls customized to allow users exact adjustments within manufacturers' limits. The Ranco O Series features heavy-duty plated steel frames, non-conductive covers with front-located captive cover screws, raised screw terminals for fully accessible wiring, and large easy-to-read scales. Recognizing the need for flexibility in design of refrigeration equipment, these controls offer a wide selection for such products as self-contained refrigerators, freezers, coolers, walk-in units, and refrigeration display cases.

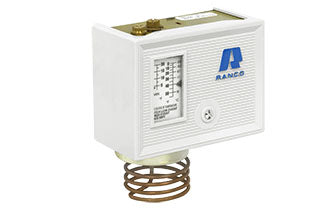

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to O10-1418
Documents and manuals
Robertshaw O10-1418 Documents
Electrical Rating Diagram O Series2019 Uni-Line Product Catalog in English2019 Uni-Line Product Catalog in Spanish2018 Uni-Line Product Catalog in Portuguese2019 Uni-Line Product Catalog in French2018 Uni-Line Product Catalog in German2018 Uni-Line Product Catalog in ItalianRobertshaw Comprehensive Global SolutionsRobertshaw Soluciones Integrales GlobalesRobertshaw Soluções globais abrangentesRobertshaw Commercial Catalog 150-2634 More Info
Overview
Details for O10-1418
O Series Temperature Controls
The Ranco® Wide Range O Series Temperature Controls provide a wide selection of controls customized to allow users exact adjustments within manufacturers' limits. The Ranco O Series features heavy-duty plated steel frames, non-conductive covers with front-located captive cover screws, raised screw terminals for fully accessible wiring, and large easy-to-read scales. Recognizing the need for flexibility in design of refrigeration equipment, these controls offer a wide selection for such products as self-contained refrigerators, freezers, coolers, walk-in units, and refrigeration display cases.Features and Benefits
- Maximum adjustment accuracy with 7 revolution range adjustment screws
- NEMA 1 enclosure with non-conductive cover
- Universal mounting and compact design
- Laser-welded bellows for extended life
- Wide range adjustable differential
The O60 Series have these additional features:
- 10 times setting sensitivity of most other wide range controls (O60 series only)
- Gas-filled, nonposition-sensitive bulb (O60 series only)
- Cap included on all Australia temperature controls. Optional for all other regions
Specifications
Item Number | O10-1418 |
Brand | Robertshaw |
0-1428 | RANCO |
010-1418-070 | RANCO |
010-1418 | RANCO |
010-1428 | RANCO |
010-1820 | RANCO |
1124189 | KELVINATOR |
1A005 | W.W. GRAINGER |
1A005A | W.W. GRAINGER |
219-4231 | WESTWARD |
66201392236 | UNI-LINE |
92236 | UNI-LINE |
9997-206 | UNI-LINE |
B10-521 | JOHNSTONE SUPPLY |
Capillary Length | Air Coil with Remote Bulb |
Comments | IP44 part number: NA |
Differential | 3°F to 20°F (-16.11°C to -6.67°C) |
L-59T169 | ITT/GENERAL CONTROL |
O-1428 | RANCO |
O10-1418-070 | Invensys Climate Controls |
O10-1428 | RANCO |
O10-1820 | RANCO |
Packaging | Bulk (25 pcs) |
Region | NA |
Series Application | Medium Temperature Control |
Switch | SPST |
Temperature Range | 0°F to 55°F (-17.77°C to 12.78°C) |
