O10-1010 | TEMPERATURE CONTROL O10-1010 RANCO TEMPERATU | Ranco / Robertshaw
The Ranco® Wide Range O Series Temperature Controls provide a wide selection of controls customized to allow users exact adjustments within manufacturers' limits. The Ranco O Series features heavy-duty plated steel frames, non-conductive covers with front-located captive cover screws, raised screw terminals for fully accessible wiring, and large easy-to-read scales. Recognizing the need for flexibility in design of refrigeration equipment, these controls offer a wide selection for such products as self-contained refrigerators, freezers, coolers, walk-in units, and refrigeration display cases.

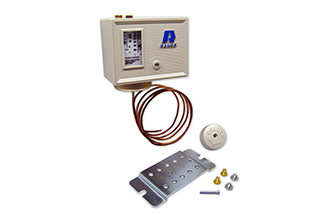

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to O10-1010
Documents and manuals
Robertshaw O10-1010 Documents
Electrical Rating Diagram O Series2019 Uni-Line Product Catalog in English2019 Uni-Line Product Catalog in Spanish2018 Uni-Line Product Catalog in Portuguese2019 Uni-Line Product Catalog in French2018 Uni-Line Product Catalog in German2018 Uni-Line Product Catalog in ItalianRobertshaw Comprehensive Global SolutionsRobertshaw Soluciones Integrales GlobalesRobertshaw Soluções globais abrangentes More Info
Overview
Details for O10-1010
O Series Temperature Controls
The Ranco® Wide Range O Series Temperature Controls provide a wide selection of controls customized to allow users exact adjustments within manufacturers' limits. The Ranco O Series features heavy-duty plated steel frames, non-conductive covers with front-located captive cover screws, raised screw terminals for fully accessible wiring, and large easy-to-read scales. Recognizing the need for flexibility in design of refrigeration equipment, these controls offer a wide selection for such products as self-contained refrigerators, freezers, coolers, walk-in units, and refrigeration display cases.Features and Benefits
- Maximum adjustment accuracy with 7 revolution range adjustment screws
- NEMA 1 enclosure with non-conductive cover
- Universal mounting and compact design
- Laser-welded bellows for extended life
- Wide range adjustable differential
The O60 Series have these additional features:
- 10 times setting sensitivity of most other wide range controls (O60 series only)
- Gas-filled, nonposition-sensitive bulb (O60 series only)
Specifications
Item Number | O10-1010 |
Brand | Robertshaw |
010-1010-070 | RANCO |
010-1010 | RANCO |
010-2215 | RANCO |
0101010 | RANCO |
1354-0507-01 | TRANE |
13540786-01 | TRANE |
13540786-02 | TRANE |
1397004-2 | CARRIER/AIR COND.CO. |
425-0123 | TRANE |
66201392228 | UNI-LINE |
92228 | UNI-LINE |
9997-197 | UNI-LINE |
99979 | NORLAKE |
Capillary Length | 48" |
Differential | 7°F to 55°F |
O10-1010-070 | Invensys Climate Controls |
O10-2215 | RANCO |
O101010 | RANCO |
Series Application | Medium Temperature Controls |
SP-64-23 | HEILWEIL J.P. IND. |
Switch | SPST-Opens Low |
Temperature Range | 0°F to 55°F |
X13540786-01 | TRANE |
X13540786-02 | TRANE |
