ZB2BE102 | Harmony, 22mm Push Button, add on contact block, 1 NC, screw clamp terminal | Schneider Electric (Square D)

Schneider Electric (Square D) | ZB2BE102

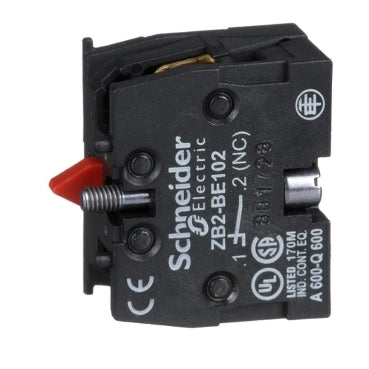

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ZB2BE102

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) ZB2BE102 Documents

More Info

Overview

Details for ZB2BE102

Precise Contact Control: Schneider Electric (Square D) ZB2BE102 1 N.C. Contact BlockThe Schneider Electric (Square D) ZB2BE102 is a reliable and precise 1 normally closed (N.C.) contact block designed for use with pushbuttons and other control devices. This contact block offers dependable performance, ensuring accurate and efficient switching operations. Compact Design: Its compact size makes it suitable for applications where space is limited. Durable Construction: Built with high-quality materials, this contact block is designed to withstand demanding industrial environments, providing long-term reliability. Easy Installation: Designed for quick and hassle-free installation, minimizing downtime during maintenance or upgrades. Applications:The ZB2BE102 is ideal for various industrial applications, including: - Machine control systems - Industrial automation - Process control panels - Emergency stop circuits - Control panels Enhance your control systems with the Schneider Electric (Square D) ZB2BE102 1 N.C. Contact Block. Trust our HVAC supply store for the best prices and fast shipping on industrial electrical supplies! Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Specifications

Range of Product: Harmony XAC
Product or Component Type: Contact block
Component name: ZB2
Electrical circuit type: Control circuit
Contact block application: Single speed
Contact block type: Single
Type of operator: Spring return
Product Compatibility: XACA, XB4, XB5
Contacts type and composition: 1 NC
Mounting of block: Front mounting
Contact operation: Slow-break
connections - terminals: Screw clamps terminals, 1 x 2.5 mm² with or without cable end, Screw clamps terminals, 2 x 1.5 mm² with or without cable end
Mechanical durability: 1000000 cycles
contact code designation: A600 AC-15, Ue = 240 V, Ie = 3 A IEC 947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 947-5-1 appendix A
[Ithe] conventional enclosed thermal current: 10 A
[Ui] rated insulation voltage: 600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-1
Maximum resistance across terminals: 25 MOhm
Operating force: 13…15 N
short-circuit protection: 10 A fuse protection cartridge gG (gl)
rated operational power in W: 40 W DC-13 1000000 cycles 3600 cyc/h 120 V 0.5 IEC 60947-5-1, 48 W DC-13 1000000 cycles 3600 cyc/h 48 V 0.5 IEC 60947-5-1, 65 W DC-13 1000000 cycles 3600 cyc/h 24 V 0.5 IEC 60947-5-1
Terminals description ISO n°1: (11-12)NC
Net Weight: 0.04 lb(US) (0.02 kg)
standards: EN/IEC 60204-32, EN/IEC 60947-5-1, CSA C22.2 No 14, UL 508
Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
vibration resistance: 15 gn 10…500 Hz)IEC 60068-2-6
shock resistance: 100 gn IEC 60068-2-27
electrical shock protection class: Class II IEC 61140
Category: 22466-PUSHBUTTON, ACCESSORIES
Discount Schedule: CS2
GTIN: 3389110612615
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.57 in (4 cm)
Package 1 Width: 5.51 in (14 cm)
Package 1 Length: 3.94 in (10 cm)
Package 1 Weight: 0.53 oz (15 g)
Unit Type of Package 2: BAG
Number of Units in Package 2: 10
Package 2 Height: 1.57 in (4 cm)
Package 2 Width: 5.51 in (14 cm)
Package 2 Length: 3.94 in (10 cm)
Package 2 Weight: 5.54 oz (157 g)
Unit Type of Package 3: S01
Number of Units in Package 3: 200
Package 3 Height: 5.91 in (15 cm)
Package 3 Width: 5.91 in (15 cm)
Package 3 Length: 15.75 in (40 cm)
Package 3 Weight: 7.60 lb(US) (3.449 kg)
Warranty: 18 months
