Brand: Schneider Electric (Square D)SKU: XALK188H7

List Price
~~$770.00~~

$256.69

Availability: This product is currently available to purchase

Orders over $999 ship FREE*

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

XALK188H7 | Harmony XALK Complete Control Station, Yellow with 1 Red Mushroom Head Pushbutton, 40mm Key Release, 1 NC, NEMA 13/4X | Schneider Electric (Square D)

Schneider Electric (Square D) | XALK188H7

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XALK188H7

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) XALK188H7 Documents

More Info

Overview

Details for XALK188H7

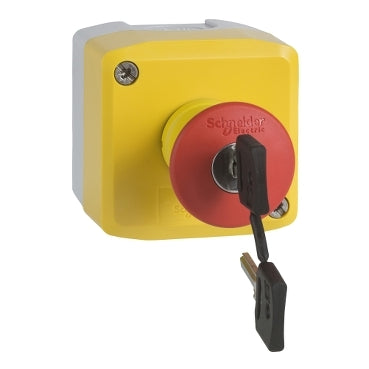

Schneider Electric (Square D) XALK188H7 Yellow Station with 1 Red Mushroom Push ButtonThe Schneider Electric (Square D) XALK188H7 Yellow Station with 1 Red Mushroom Push Button is a vital component for industrial control systems. This station combines a durable enclosure with a high-visibility red mushroom push button for emergency stop or system reset applications. Key Features: Compact design for easy integration into control panels Yellow enclosure for high visibility and quick identification in hazardous situations Red mushroom push button with a spring-return mechanism for quick and intuitive operation Rugged construction for reliable performance in demanding industrial environments Simple installation and wiring for efficient setup Benefits: Provides a clear visual indicator for emergency stop or system reset, enhancing safety in industrial settings Protects critical systems from damage or malfunction in the event of an emergency Ensures quick and reliable system response during critical situations Simplifies installation and maintenance, saving time and resources Applications: Industrial manufacturing Material handling systems Mining and heavy equipment Hazardous and emergency response environments Any application requiring an easily identifiable emergency stop or system reset device Shop our HVAC supply store today for the best prices and fast shipping on the Schneider Electric (Square D) XALK188H7 Yellow Station with 1 Red Mushroom Push Button. We offer a wide selection of industrial control components to meet your specific needs.

Specifications

Range of Product: Harmony XALK
Product or Component Type: Complete control station
device short name: XALK
product destination: For XB5 Ø 22 mm control and signalling units
control station application: Emergency stop function;Emergency switching off function
colour of base of enclosure: Light grey RAL 7035)
colour of cover: Yellow RAL 1021)
Material: Polycarbonate
operator profile: 1 mushroom head push-button
operators description: Red unmarked 1 NC
Reset: Key release
control station composition: 1 mushroom head Ø 40 mm push-button;red 1 NC unmarked
contact operation: Slow-break
cable entry: 1 knock-out for cable entry 0.00…0.55 in (0…14 mm);2 knock-outs for Pg 13 cable gland and ISO M20 0.00…0.47 in (0…12 mm)
Net Weight: 0.41 lb(US) (0.188 kg)
resistance to high pressure washer: 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
key number: 455
positive opening: With EN/IEC 60947-5-1 appendix K
operating travel: 0.06 in (1.5 mm) NC changing electrical state);0.17 in (4.3 mm) total travel)
operating force: 44 N
mechanical durability: 300000 cycles
connections - terminals: Screw clamp terminals;<= 2 x 1.5 mm² with cable end EN/IEC 60947-1;Screw clamp terminals;>= 1 x 0.22 mm² without cable end EN/IEC 60947-1
tightening torque: 7.08…10.62 lbf.in (0.8…1.2 N.m) EN/IEC 60947-1
shape of screw head: Cross Philips no 1;Cross pozidriv No 1;Slotted flat Ø 4 mm;Slotted flat Ø 5.5 mm
contacts material: Silver alloy (Ag/Ni)
short-circuit protection: 10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage: 600 V 3)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV EN/IEC 60947-1
[Ie] rated operational current: 3 A 240 V;AC-15;A600 EN/IEC 60947-5-1;6 A 120 V;AC-15;A600 EN/IEC 60947-5-1;0.1 A 600 V;DC-13;Q600 EN/IEC 60947-5-1;0.27 A 250 V;DC-13;Q600 EN/IEC 60947-5-1;0.55 A 125 V;DC-13;Q600 EN/IEC 60947-5-1;1.2 A 600 V;AC-15;A600 EN/IEC 60947-5-1
electrical durability: 1000000 cycles;AC-15;2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
electrical reliability: Λ < 10exp(-6) 5 V;1 mA EN/IEC 60947-5-4;Λ < 10exp(-8) 17 V;5 mA EN/IEC 60947-5-4
protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -40…158 °F (-40…70 °C)
overvoltage category: Class II IEC 60536
IP degree of protection: IP66 IEC 60529;IP67;IP69;IP69K
NEMA degree of protection: NEMA 13;NEMA 4X
IK degree of protection: IK03 EN 50102
Standards: EN/IEC 60947-5-1;EN/ISO 13850;JIS C 4520;EN/IEC 60947-5-5;EN/IEC 60947-5-4;CSA C22.2 No 14;UL 508;IEC 60364-5-53;EN/IEC 60947-1;EN/IEC 60204-1
Product Certifications: UL Listed;CSA
vibration resistance: 5 gn 12…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27;50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category: 22475-WALL STATIONS
Discount Schedule: CS2
GTIN: 3606480502736
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.78 in (9.6 cm)
Package 1 Width: 2.76 in (7.0 cm)
Package 1 Length: 2.76 in (7.0 cm)
Package 1 Weight: 6.63 oz (188.0 g)
Warranty: 18 months
