XALK188EH7 | Yellow station - 1 red mushroom head pushbutton Ø40 key release 1NO+1NC | Schneider Electric (Square D)

Schneider Electric (Square D) | XALK188EH7

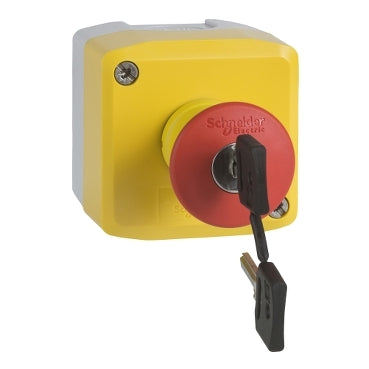

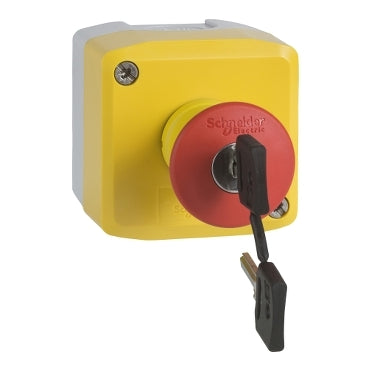

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XALK188EH7

Jump to: Overview Specifications Reviews

Overview

Details for XALK188EH7

Schneider Electric (Square D) XALK188EH7 Control Station: Empowering Industrial Efficiency The XALK188EH7 Control Station from Schneider Electric (Square D) offers a reliable and robust solution for industrial applications, empowering engineers and maintenance professionals to enhance their operations. Featuring one normally open and one normally closed contact, this control station provides versatile control options in electrical systems. Constructed with high-quality materials, it ensures long-lasting performance in demanding environments. Its compact design allows for easy integration into tight spaces. This control station is designed for ease of installation and maintenance, allowing for quick and efficient setup. Its intuitive operation simplifies usage, ensuring seamless integration into your industrial processes. Shop our HVAC supply store for the best prices and fast shipping on the XALK188EH7 Control Station. With our extensive inventory and commitment to customer satisfaction, we are your trusted partner for industrial electrical equipment.

Specifications

Range of Product: Harmony XALK
Product or Component Type: Complete control station
device short name: XALK
product destination: For XB5 Ø 22 mm control and signalling units
control station application: Emergency stop function;Emergency switching off function
colour of base of enclosure: Light grey RAL 7035)
colour of cover: Yellow RAL 1021)
Material: Polycarbonate
operator profile: 1 mushroom head push-button
operators description: Red unmarked 1 NO + 1 NC
Reset: Key release
control station composition: 1 mushroom head Ø 40 mm push-button;red 1 NO + 1 NC unmarked
contact operation: Slow-break
cable entry: 1 knock-out for cable entry 0.00…0.55 in (0…14 mm);2 knock-outs for Pg 13 cable gland and ISO M20 0.00…0.47 in (0…12 mm)
Net Weight: 0.41 lb(US) (0.188 kg)
resistance to high pressure washer: 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
key number: 455
positive opening: With EN/IEC 60947-5-1 appendix K
operating travel: 0.06 in (1.5 mm) NC changing electrical state);0.10 in (2.6 mm) NO changing electrical state);0.17 in (4.3 mm) total travel)
operating force: 44 N NC + NO changing electrical state
mechanical durability: 300000 cycles
connections - terminals: Screw clamp terminals;<= 2 x 1.5 mm² with cable end EN/IEC 60947-1;Screw clamp terminals;>= 1 x 0.22 mm² without cable end EN/IEC 60947-1
tightening torque: 7.08…10.62 lbf.in (0.8…1.2 N.m) EN/IEC 60947-1
shape of screw head: Cross Philips no 1;Cross pozidriv No 1;Slotted flat Ø 4 mm;Slotted flat Ø 5.5 mm
contacts material: Silver alloy (Ag/Ni)
short-circuit protection: 10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage: 600 V 3)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV EN/IEC 60947-1
[Ie] rated operational current: 3 A 240 V;AC-15;A600 EN/IEC 60947-5-1;6 A 120 V;AC-15;A600 EN/IEC 60947-5-1;0.1 A 600 V;DC-13;Q600 EN/IEC 60947-5-1;0.27 A 250 V;DC-13;Q600 EN/IEC 60947-5-1;0.55 A 125 V;DC-13;Q600 EN/IEC 60947-5-1;1.2 A 600 V;AC-15;A600 EN/IEC 60947-5-1
electrical durability: 1000000 cycles;AC-15;2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
electrical reliability: Λ < 10exp(-6) 5 V;1 mA EN/IEC 60947-5-4;Λ < 10exp(-8) 17 V;5 mA EN/IEC 60947-5-4
protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient air temperature for operation: -40…158 °F (-40…70 °C)
overvoltage category: Class II IEC 60536
IP degree of protection: IP66 IEC 60529;IP67;IP69;IP69K
NEMA degree of protection: NEMA 13;NEMA 4X
IK degree of protection: IK03 EN 50102
Standards: EN/IEC 60947-5-5;EN/ISO 13850;UL 508;EN/IEC 60204-1;EN/IEC 60947-1;EN/IEC 60947-5-4;JIS C 4520;CSA C22.2 No 14;EN/IEC 60947-5-1;IEC 60364-5-53
Product Certifications: UL Listed;CSA
vibration resistance: 5 gn 12…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27;50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Category: 22475-WALL STATIONS
Discount Schedule: CS2
GTIN: 3389119413992
Returnability: No
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.82 in (9.7 cm)
Package 1 Width: 2.76 in (7.0 cm)
Package 1 Length: 2.76 in (7.0 cm)
Package 1 Weight: 7.02 oz (199.0 g)
Warranty: 18 months
