QOU360 | 3P 60A 240V CIRCUIT BREAKER | Schneider Electric (Square D)

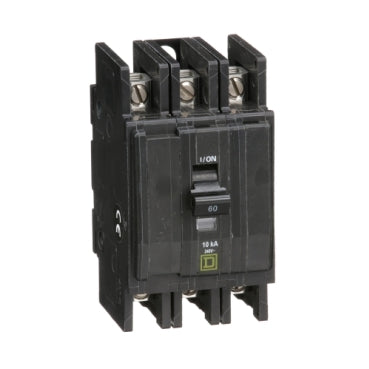

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QOU360

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) QOU360 Documents

More Info

Overview

Details for QOU360

3P 60A 240V QOU360 Circuit Breaker by Schneider Electric (Square D)The QOU360 is a three-pole, 60-amp, 240-volt circuit breaker manufactured by Schneider Electric (Square D). It is designed for use in commercial and industrial electrical systems to protect against overcurrents and short circuits. The QOU360 is a plug-in type circuit breaker, making it easy to install and replace. It features a thermal-magnetic trip mechanism that provides both overload and short-circuit protection. The QOU360 has a maximum interrupting capacity of 10,000 amps. It is UL listed and meets the requirements of the National Electrical Code (NEC). Our HVAC supply store offers the best prices and fast shipping on all Schneider Electric products. Shop now! QO™ and QOU Miniature Circuit Breakers, QOU360, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers provide a means to manually open a circuit.

Specifications

Product or Component Type: Miniature circuit-breaker
Range of Product: QOU
circuit breaker type: Standard
circuit breaker application: HACR rated
Line Rated Current: 60 A
electrical connection: Slotted box lugs;line side;Slotted box lugs;load side
[Ue] rated operational voltage: 120/240 V AC;240 V AC;120 V AC;48 V DC
Mounting Mode: Unit mount
AWG gauge: AWG 14...AWG 2 aluminium/copper
Height: 4.05 in (102.87 mm)
Width: 2.25 in (57.15 mm)
Depth: 2.95 in (74.93 mm)
tightening torque: 45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
Product Certifications: IEC;CSA;UL Listed
Category: 00900-QOU BREAKERS & SWITCH
Discount Schedule: DE2
GTIN: 785901060291
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.60 in (9.144 cm)
Package 1 Width: 4.70 in (11.938 cm)
Package 1 Length: 2.60 in (6.604 cm)
Package 1 Weight: 18.40 oz (521.631 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 20
Package 2 Height: 3.50 in (8.89 cm)
Package 2 Width: 13.50 in (34.29 cm)
Package 2 Length: 20.40 in (51.816 cm)
Package 2 Weight: 23.20 lb(US) (10.523 kg)
Warranty: 18 months
