PJL36120U44A | MOLDED CASE CIRCUIT BREAKER 600V, 3P, 1200A | Schneider Electric (Square D)

Schneider Electric (Square D) | PJL36120U44A

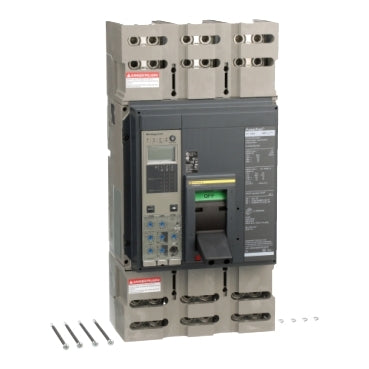

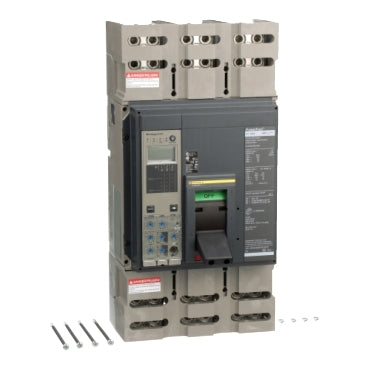

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PJL36120U44A

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) PJL36120U44A Documents

More Info

Overview

Details for PJL36120U44A

The Schneider Electric (Square D) PJL36120U44A is a 600V 1200A circuit breaker designed for electrical protection in industrial applications. It effectively safeguards circuits from high currents that can cause damage to electrical equipment and potential hazards. This circuit breaker features a robust design to handle the demands of industrial settings and ensure reliable operation. Its key features include: - High Amperage Rating: Its 1200A rating makes it suitable for applications requiring high current protection. - Durable Construction: Designed with rugged materials to withstand industrial environments and ensure longevity. - Quick Response: Provides fast tripping to prevent damage in case of electrical faults. - Easy Installation: Simplifies installation process with its user-friendly design. - Safety Compliance: Meets electrical safety standards for industrial applications. For your industrial electrical protection needs, trust the PJL36120U44A circuit breaker from Schneider Electric (Square D). Shop our HVAC supply store today - We offer the best prices and fast shipping for your products! This PowerPact P, circuit breaker has a rated currrent of 1200A and a rated operational current of 600VAC with a breaking capacity of 25 kA@600VAC. This unit mounted breaker is a 3-pole and has a continuous current rating of 80 %. This breaker has an electronic trip unit technology and a Micrologic 6.0 A trip unit. Dimensions for this product are 16.16 in (H), 8.05 in (W), 8.27 in (D). This product comes with an 18 month warranty.

Specifications

range: PowerPact
product name: PowerPact P
Product or Component Type: Circuit breaker
Device Application: Distribution
Line Rated Current: 1200 A
Number of Poles: 3P
Control Type: Toggle
breaking capacity code: J
breaking capacity: AIR 100 kA 240 V AC 50/60 Hz UL 489;AIR 65 kA 480 V AC 50/60 Hz UL 489;AIR 25 kA 600 V AC 50/60 Hz UL 489;Icu 65 kA 240 V AC 50/60 Hz IEC 60947-2;Icu 50 kA 380/415 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage: 600 V AC 50/60 Hz UL 489
Network Frequency: 50/60 Hz
[Ics] rated service breaking capacity: 35 kA 240 V AC 50/60 Hz IEC 60947-2;25 kA 380/415 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage: 8 kV IEC 60947-2
trip unit technology: Electronic;ammeter;Micrologic 6.0 A;LSIG
continuous current rating: 80 %
[Ui] rated insulation voltage: 750 V IEC 60947-2
trip unit name: Micrologic 6.0 A
suitability for isolation: Yes IEC 60947-2
utilisation category: Category A
AWG gauge: 4 x AWG 3/0...500 kcmil aluminium/copper
local signalling: Overload 1 1 LED amber);1 flag green);Trip causes 4 trip indicator red)
mounting mode: Unit mount lug)
Mounting Support: Lug
electrical connection: Lugs line;Lugs load
terminal identifier: AL1200P25K
long time pick-up adjustment range: 0.4...1 x Ir
tightening torque: 442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (4 x AWG 3/0...500 kcmil);8.85…11.51 lbf.in (1.0…1.3 N.m)
number of slots: 2 auxiliary switch OF plug-in);1 alarm switch SD plug-in);1 overcurrent trip switch SDE plug-in);1 voltage release MN or MX plug-in)
Power wire stripping length: 1.18 in (30 mm)
Height: 16.16 in (410.46 mm)
Width: 8.27 in (210.06 mm)
Depth: 8.05 in (204.47 mm)
Net Weight: 32 lb(US) (14.51 kg)
Quantity per Set: 1
circuit breaker application: HACR rated
quality labels: CE
Standards: UL;CSA;NEMA;NOM-003-SCFI-2000;IEC 60947-2
product certifications: UL;CSA;NOM
IP degree of protection: Front cover IP40
pollution degree: 3 IEC 60947-1
Ambient Air Temperature for Operation: 28…158 °F (-2…70 °C)
Ambient Air Temperature for Storage: -58…185 °F (-50…85 °C)
operating altitude: < 6561.68 ft (2000 m) without derating;13123.36 ft (4000 m) with derating
Category: 01215-PG;H;J;K;L;N UNIT MT BREAKERS
Discount Schedule: DE2
GTIN: 00785901863731
Returnability: No
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 12.50 in (31.75 cm)
Package 1 Width: 12.00 in (30.48 cm)
Package 1 Length: 20.50 in (52.07 cm)
Package 1 Weight: 39.00 lb(US) (17.69 kg)
Warranty: 18 months
