NF454L2 | NF Pnlbrd Interior 250A, 3 PH, 4 Wire, 54 CCT, Mn Lug, Al | Schneider Electric (Square D)

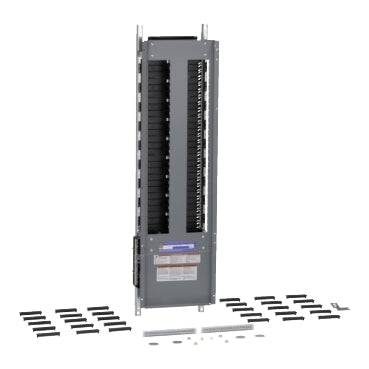

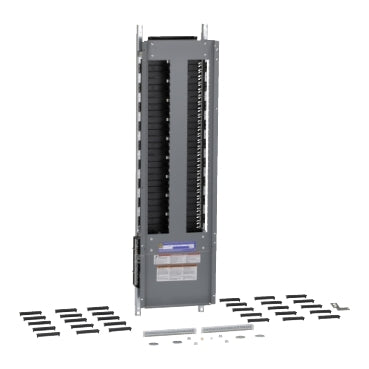

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NF454L2

Jump to: Overview Specifications Reviews

Overview

Details for NF454L2

Schneider Electric (Square D) NCO-NF454L2 250AMP Panel Board The Schneider Electric (Square D) NCO-NF454L2 is a 250AMP Panel Board ideal for electrical distribution in industrial and commercial applications. Its compact design and rugged construction make it an excellent choice for demanding environments. Key Features: * 250AMP rating * 54 circuit capacity * Compatible with standard circuit breakers * Surface or flush mountable * UL listed Benefits: * Reliable power distribution for your critical loads * Expandable to meet your growing needs * Easy to install and maintain * Safety and code compliance Applications: * Electrical distribution in industrial settings * Commercial and institutional buildings * Data centers * Manufacturing facilities Our HVAC supply store offers the best prices and fast shipping on the Schneider Electric (Square D) NCO-NF454L2 250AMP Panel Board. Contact us today for a quote! NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These interiors provide protection for commercial and industrial applications. NF Panelboards feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards are field convertible to top or bottom feed. NF Panelboards are convertible from main lug to main breaker. NF Panelboards can provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. The main lugs are rated at 250A 600Y/347 VAC 3 phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 54 spaces and has an aluminum bus bar. Interior is for EDB, EDG, and EDJ branch circuit breakers. Line lug connections will accept 6 AWG to 350 kcmil aluminum wire. The interior is 45 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified.

Specifications

Panelboard Type: Main lugs
Branch Circuit Breaker Type: EDB/EDG/EDJ
Busbar Material: Aluminium
number of spaces: 54
Enclosure Nominal Height: 56 in (1422.40 mm)
Enclosure Nominal Width: 20 in (508.00 mm)
Enclosure Nominal Depth: 5.75 in (146.05 mm) NEMA 1;6.5 in (165.10 mm) NEMA 3R/5/12
Line Rated Current: 250 A
[Iu] rated interrupted current: 65 kA
wiring configuration: 4-wire
Number of Phases: 3 phase
Voltage Rating: 600Y/347 V AC
connections - terminals: Lug line AWG 6...350 kcmil aluminium;Lug neutral AWG 6...350 kcmil aluminium
tightening torque: 40.01…50.01 lbf.in (4.52…5.65 N.m) 0.02…0.10 in² (13.30…67.43 mm²) (AWG 6...AWG 2/0);100.01 lbf.in (11.3 N.m) 0.02…0.10 in² (13.30…67.43 mm²) (AWG 6...AWG 2/0);274.99 lbf.in (31.07 N.m) 0.02…0.27 in² (13.30…177.3 mm²) (AWG 6...350 kcmil);274.99 lbf.in (31.07 N.m) 0.02…0.20 in² (13.30…126.7 mm²) (AWG 6...250 kcmil);274.99 lbf.in (31.07 N.m) 0.17…0.24 in² (107.2…152 mm²) (AWG 4...300 kcmil)
Height: 45 in (1143.00 mm)
Width: 10.44 in (265.18 mm)
Net Weight: 27.01 lb(US) (12.25 kg)
Standards: UL 67;CSA C22.2
Category: 08350-NF MLO INTERIOR RTA
Discount Schedule: PE1A
GTIN: 785901401193
Returnability: No
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 6.18 in (15.7 cm)
Package 1 Width: 14.21 in (36.1 cm)
Package 1 Length: 49.41 in (125.5 cm)
Package 1 Weight: 27.00 lb(US) (12.247 kg)
Warranty: 18 months
