MVF461H15-3 | Magnetic, 1/2" Valve, 2-way, 3.5 Cv, 0 to 10V control, w/o Flange Kits | Siemens Building Technology

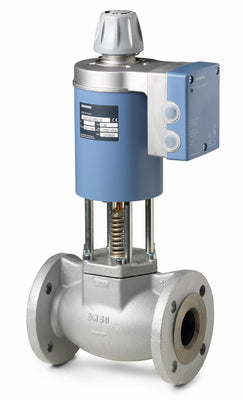

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MVF461H15-3
Documents and manuals
Siemens Building Technology MVF461H15-3 Documents
Datasheet(Modulating control valves. PN16. MVF461H..)Datasheet(MVF461H Series Modulating Control Valves with Magnetic. Positioning Control and Position Feedback for Hot Water and Steam Technical Instructions)Declaration of conformity(CE declaration MVF461H..)Declaration of conformity(RCM Supplier's Declarationof conformity MVF461H…)Declaration of conformity(Test report EN 10204 (type 2.2))Declaration of conformity(Electromagnetic valve actuators MVF461H..)Environmental Declaration(Modulationg control valves. PN16. . MVF461H..)Mounting instruction(Modulating control valves. PN16. MXG461B... MXG462S... MVF461H..)Mounting instruction(Replacement electronic. ASE12)Dimension Drawings(2-port valve. MVF461H... DN 15. 2D drawings. dxf/dwg format)Dimension Drawings(2-port valve. MVF461H... DN 15. 3D drawings. dwg format)Dimension Drawings(2-port valve. MVF461H... DN 15. 3D drawings. stp format) More Info
Overview
Details for MVF461H15-3
1/2" MAG VLV STEAM 3.5Cv (MVF461H15-3)
The Siemens Building Technology MVF461H15-3 is a 1/2" solenoid-operated steam valve designed for precise flow control in various HVAC and industrial applications. This robust valve features a stainless steel body for enhanced durability and a brass plug for long-lasting performance. With a pressure rating of up to 250 psi and a temperature range of 32°F to 356°F, the MVF461H15-3 can handle demanding steam applications. Its 3.5 Cv flow coefficient ensures efficient flow control, making it suitable for use in both large and small systems. The valve's compact design allows for easy installation in tight spaces. Whether you're looking to control steam flow in a heating system, boilers, or process equipment, the Siemens Building Technology MVF461H15-3 is a reliable and efficient solution.
Shop our HVAC supply store for the best prices and fast shipping on all your HVAC and industrial products!
Specifications
- Ambient temperature, operation
- -5…45 °C
- Degree of protection
- IP31
- kvs
- 3 m³/h
- Leakage rate
- 0.05 % of kvs
- Material, inside set
- CrNi steel
- Material, valve body
- Nodular cast iron EN-GJS-400-18-LT
- Medium temperature
- 1…180 °C; 34…356 ºF
- Mounting position
- Upright to horizontal
- Nominal pressure
- PN 16
- Operating voltage
- 24 VAC, 24 VDC
- Permissible operating pressure
- Liquid, max: 1300 kPa; Steam, max: 900 kPa
- Position feedback
- DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA
- Positioning signal
- DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA, DC 0...20 V Phs
- Positioning time
- 2 s
- Power consumption
- 33 VA
- Spring return function
- A-> AB closed
- Valve characteristic
- Equal-percentage , Linear
- Δpmax
- 1000 kPa
- Δps
- 1000 kPa
- Operating range
- DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
- Absolute pressure p1 steam
- 900 kPa abs
- Medium
- Steam , Water , Saturated steam
- Stroke resolution ΔH/H100
- 1:1000
- Material, valve body
- Cast iron EN-GJS-400-18-LT
- Dimensions (W x H x D)
- 7.13 x 15.26 x 3.98 in
- DN
- 15
