M3P80FY | Magnetic, 3" Valve, floating, 93 Cv, 0 to 10V control, w/o Flange kits | Siemens Building Technology

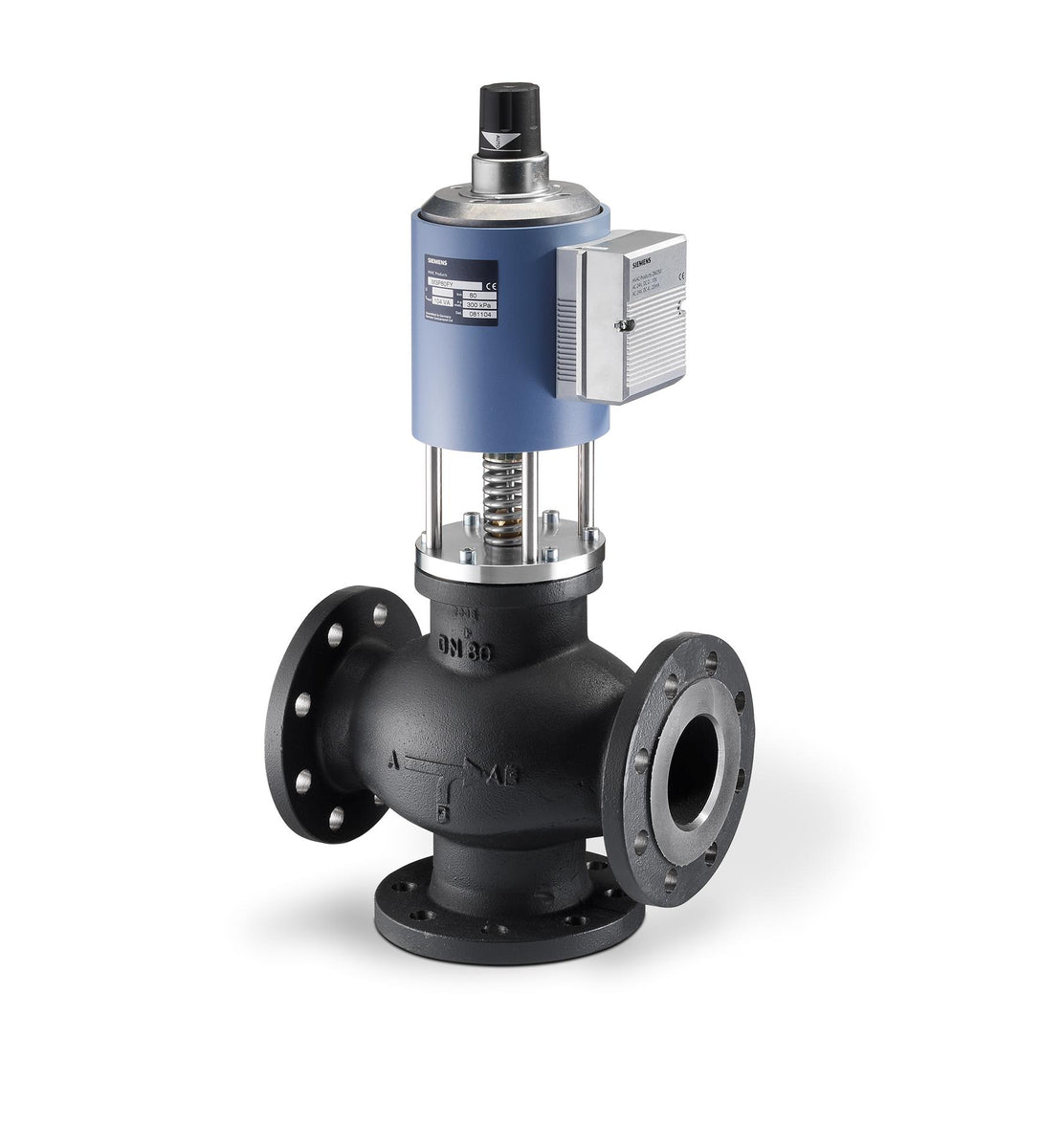

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to M3P80FY
Documents and manuals
Siemens Building Technology M3P80FY Documents
Datasheet(Modulating control valves with magnetic actuator. PN16. M3P..FY. M3P..FYP)Datasheet(M3P…FY Series Modulating Control Valve Technical Instructions)Declaration of conformity(CE declaration M3P..)Declaration of conformity(Test report EN 10204 (type 2.2))Declaration of conformity(Electromagnetic valve actuators M3P..)Environmental Declaration(Stetige Regelventile mit Magnetantrieb M3P..FY)Mounting instruction(Valve stem gland replacement / Austausch Spindeldurchführung M3P..FY..)Mounting instruction(Mounting instructions / Montageanleitung M3P...FY)Other datasheet(Modulating control valves. PN16. MXG461... MXF461..)Other datasheet(Modulating control valves with magnetic actuator)Dimension Drawings(2/3-port valve. M3P... DN 80. 2D drawings. dxf/dwg format)Dimension Drawings(2/3-port valve. M3P... DN 80. 3D drawings. dwg format)Dimension Drawings(2/3-port valve. M3P... DN 80. 3D drawings. stp format) More Info
Overview
Details for M3P80FY
3" VALVE W/PILOT POS 93cv from Siemens Building Technology
The M3P80FY 3" Valve is a highly reliable and durable valve system designed to meet the demanding requirements of industrial applications. Manufactured by Siemens Building Technology, this valve features a robust construction that ensures long-lasting performance even in harsh environments.
Key Features:
* 3" nominal size for efficient flow control
* Pilot-operated design for precise actuation
* Pos 93cv control for versatile applications
* Rugged construction for extended service life
Benefits:
* Accurate flow regulation and control
* Enhanced durability and reliability
* Suitable for a wide range of industrial processes
* Backed by the expertise of Siemens Building Technology
Applications:
* Process industries: Chemical, petrochemical, and pharmaceutical
* Manufacturing: Automotive, aerospace, and electronics
* Energy sector: Oil and gas, power generation
* Water treatment and distribution systems
For industrial engineers and maintenance professionals seeking high-quality valve solutions, the M3P80FY 3" Valve offers a combination of performance, durability, and versatility. Trust our HVAC supply store for exceptional prices and swift shipping on all your industrial supply needs!
Specifications
- Operating range
- DC 0…10 V
- Leakage rate bypass
- 2 % of kvs
- Medium
- Water
- Stroke resolution ΔH/H100
- 1:1000
- Material, valve body
- Cast iron EN-GJL-HB215
- Δps
- 300 kPa
- Ambient temperature, operation
- 2…50 °C
- Degree of protection
- IP31
- Leakage rate
- 0.05 % of kvs
- Material, inside set
- CrNi steel/brass
- Material, valve body
- EN-GJL-HB215
- Medium temperature
- 2…120 °C; 35…248 ºF
- Mounting position
- Upright to horizontal
- Nominal pressure
- PN 16
- Operating voltage
- 24 VAC
- Position feedback
- DC 0…10 V
- Positioning signal
- DC 0...10 V, DC 4...20 mA
- Positioning time
- Close:2 s
- Power consumption
- 80 VA
- Spring return function
- 1->3 closed
- Valve characteristic
- Linear
- Δpmax
- 300 kPa
- Dimensions (W x H x D)
- 12.2 x 25.51 x 7.87 in
- kvs
- 80 m³/h
- DN
- 80
