LX1D8G7 | 120V COIL FOR LC1D150 | Schneider Electric (Square D)

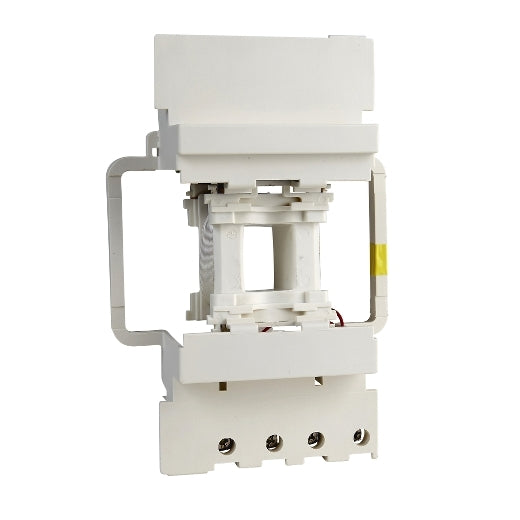

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LX1D8G7
Overview
Details for LX1D8G7
120V Coil for LC1D150: The Schneider Electric LX1D8G7The Schneider Electric LX1D8G7 is a 120V coil specifically designed for use with the LC1D150 contactor. This coil is essential for energizing the contactor, allowing it to control the flow of electricity to connected devices.
Crafted with high-quality materials, this coil ensures reliable operation and long-lasting performance. It offers precise control over electrical circuits, making it an ideal choice for a wide range of industrial applications, including motor control, lighting systems, and automation processes.
The LX1D8G7 coil is designed to meet industry standards and is compatible with other LC1D series contactors. Its compact size makes it easy to integrate into existing electrical systems, while its durable construction withstands demanding industrial environments.
Our HVAC supply store is your trusted source for all your industrial supply needs. We offer competitive prices, fast shipping, and expert customer support. Order your Schneider Electric LX1D8G7 120V Coil today and experience the difference!
Specifications
- Range
- TeSys
- Product or component type
- Contactor coil
- device short name
- LX1D8
- Control circuit type
- AC at 50/60 Hz
- [Uc] control circuit voltage
- 120 V AC 50/60 Hz
- Average resistance
- 4377 Ohm at 20 °C
- Inductance of closed circuit
- 109.69 H
- Product compatibility
- LC1D150
LC1D115 - Mechanical durability
- 8 Mcycles
- Maximum operating rate
- 1200 cyc/h 60 °C
- Coil technology
- Without built-in suppressor module
- Control circuit voltage limits
- Drop-out: 0.3...0.5 Uc at 50/60 Hz (at <55 °C)
Operational: 0.8...1.15 Uc at 50/60 Hz (at <55 °C) - Inrush power in VA
- 280…350 VA 60 Hz cos phi 0.9 (at 20 °C)
280…350 VA 50 Hz cos phi 0.9 (at 20 °C) - Hold-in power consumption in VA
- 2…18 VA 60 Hz cos phi 0.9 (at 20 °C)
2…18 VA 50 Hz cos phi 0.9 (at 20 °C) - Heat dissipation
- 3…4.5 W at 50/60 Hz
- Ambient air temperature for operation
- -5…60 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.2 cm
- Package 1 Width
- 11.5 cm
- Package 1 Length
- 17.0 cm
- Package 1 Weight
- 280.0 g
- Warranty
- 18 months
