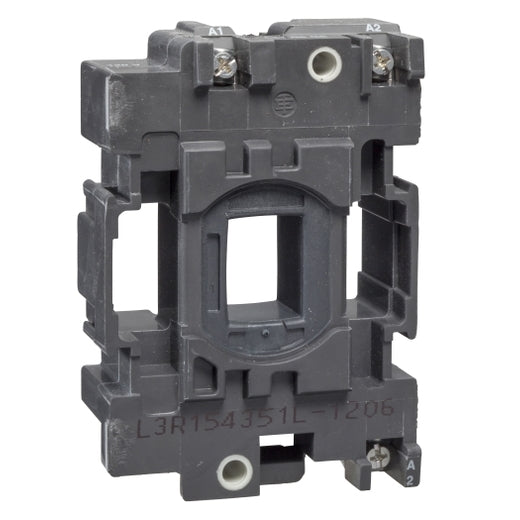

LX1D6L6 | TeSys D Contactor Coil, 208V AC 60 Hz | Schneider Electric (Square D)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LX1D6L6

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) LX1D6L6 Documents

Datasheet

Overview

Details for LX1D6L6

LX1D6L6 Contactor: Reliable Control for Industrial Applications Schneider Electric's LX1D6L6 contactor is a high-performance electromechanical device designed to control electrical loads in industrial applications. This contactor features a robust design with a voltage rating of 208 Vac, making it ideal for a wide range of electrical systems. The LX1D6L6 offers dependable operation with a long service life, ensuring optimal performance in demanding industrial environments. Key Features: * Voltage Rating: 208 Vac * Current Rating: 6 Amps * Number of Poles: 3 * Coil Voltage: 24 Vdc * Compact Design for Space-Saving Installation Benefits: * Reliable control of electrical loads in industrial applications * Durable construction for long-lasting performance * Easy installation and maintenance * Versatile operation with a wide voltage range Applications: The LX1D6L6 contactor is commonly used in industrial automation systems, motor control circuits, lighting control, and other applications that require reliable switching of electrical loads. It is suitable for use in various industries, including manufacturing, energy, and transportation. Shop our HVAC supply store for the Best Prices and Fast Shipping!

Specifications

Range: TeSys
Product or component type: Contactor coil
device short name: LX1D6
Control circuit type: AC at 60 Hz
[Uc] control circuit voltage: 208 V AC 60 Hz
Average resistance: 86 Ohm at 20 °C
Inductance of closed circuit: 4.3 H
Product compatibility: LC1D40
LC1D50
LC1D65...D95
Mechanical durability: 4 Mcycles
Maximum operating rate: 3600 cyc/h 60 °C
Coil technology: Without built-in suppressor module
Control circuit voltage limits: Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C)
Operational: 0.8...1.1 Uc at 50 Hz (at <55 °C)
Operational: 0.85...1.1 Uc at 60 Hz (at <55 °C)
Inrush power in VA: 220 VA 60 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA: 22 VA 60 Hz cos phi 0.3 (at 20 °C)
Heat dissipation: 6…10 W at 50/60 Hz
Ambient air temperature for operation: -5…60 °C
Net weight: 0.28 kg
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 8.8 cm
Package 1 Width: 12.6 cm
Package 1 Length: 5.5 cm
Package 1 Weight: 320.0 g
Unit Type of Package 2: S02
Number of Units in Package 2: 4
Package 2 Height: 15.0 cm
Package 2 Width: 30.0 cm
Package 2 Length: 40.0 cm
Package 2 Weight: 1.735 kg
Warranty: 18 months
