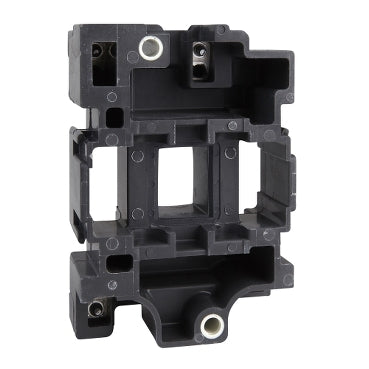

LX1D6F7 | TeSys Deca - contactor coil - LX1D6 - 110 V AC 50/60 Hz for 80 & 95 A contactor | Schneider Electric (Square D)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LX1D6F7

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) LX1D6F7 Documents

More Info

Overview

Details for LX1D6F7

110V Contact Coil for Contactors (LX1D6F7) by Schneider Electric (Square D)The LX1D6F7 is a 110V contact coil for contactors, manufactured by Schneider Electric (Square D). It is designed to provide reliable switching and control of electrical circuits in industrial and commercial applications. This coil is compatible with Square D contactors, enabling the creation of custom control systems tailored to specific requirements. Technical Specifications: - Voltage: 110V AC - Coil Type: Contact Coil - Compatible with: Square D Contactors - Application: Switching and control of electrical circuits The LX1D6F7 contact coil is an essential component for engineers and maintenance professionals seeking high-quality electrical control solutions. It offers the durability, reliability, and performance expected from Schneider Electric (Square D), a trusted leader in electrical equipment. Our HVAC supply store offers competitive prices and fast shipping on the LX1D6F7 contact coil and a wide range of electrical products. Trust us for your industrial and commercial electrical supply needs. TeSys D replacement AC coil 110V 50/60Hz for TeSys D contactors. To be used with 3 and 4-pole contactors LC1 D40 to D95. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys
Product or Component Type: Contactor coil
Device short name: LX1D6
control circuit type: AC 50/60 Hz
[Uc] control circuit voltage: 110 V AC 50/60 Hz
average resistance: 26 Ohm 68 °F (20 °C)
Inductance of closed circuit: 1.7 H
Product Compatibility: LC1D40, LC1D50, LC1D65...D95
Mechanical durability: 4 Mcycles
maximum operating rate: 3600 cyc/h 140 °F (60 °C)
Coil technology: Without built-in suppressor module
control circuit voltage limits: Drop-out 0.3...0.6 Uc 50/60 Hz 131 °F (55 °C)), Operational 0.8...1.1 Uc 50 Hz 131 °F (55 °C)), Operational 0.85...1.1 Uc 60 Hz 131 °F (55 °C))
inrush power in VA: 245 VA 60 Hz 0.75 68 °F (20 °C)), 245 VA 50 Hz 0.75 68 °F (20 °C))
hold-in power consumption in VA: 26 VA 60 Hz 0.3 68 °F (20 °C)), 26 VA 50 Hz 0.3 68 °F (20 °C))
heat dissipation: 6…10 W 50/60 Hz
Ambient Air Temperature for Operation: 23…140 °F (-5…60 °C)
Net Weight: 0.62 lb(US) (0.28 kg)
Category: 22341-CONTACTOR,D,K,&F ACCESS
Discount Schedule: I12
GTIN: 3389110233377
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.76 in (7 cm)
Package 1 Width: 3.15 in (8 cm)
Package 1 Length: 6.30 in (16 cm)
Package 1 Weight: 11.11 oz (315 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 16
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 12.09 lb(US) (5.482 kg)
Warranty: 18 months
