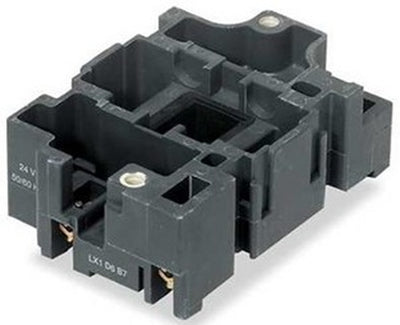

LX1D6B7 | Contactor + Relay Coil 24VAC IEC | Schneider Electric (Square D)

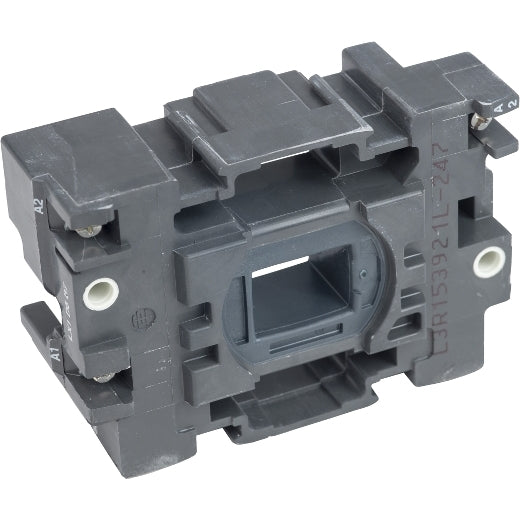

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LX1D6B7

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) LX1D6B7 Documents

Datasheet More Info

Overview

Details for LX1D6B7

LX1D6B7: 24V COIL from Schneider Electric (Square D) The LX1D6B7 coil is a vital component for industrial electrical systems, providing an efficient and reliable way to control electrical circuits. With its 24V coil voltage, this coil is designed for use in low-voltage applications, delivering dependable performance in a compact and durable package. Crafted from high-quality materials, the LX1D6B7 coil features a robust construction, ensuring longevity and resistance to wear and tear in demanding industrial environments. Its compact design makes it ideal for applications where space is limited, allowing for easy installation and maintenance. Key Features: - 24V coil voltage for low-voltage applications - Compact and durable construction - Easy installation and maintenance - Trusted Schneider Electric (Square D) brand Our HVAC supply store offers the best prices and fast shipping on this essential electrical component. Upgrade your electrical systems with the LX1D6B7 24V COIL from Schneider Electric (Square D) today!

Specifications

Range: TeSys
Product or component type: Contactor coil
device short name: LX1D6
Control circuit type: AC at 50/60 Hz
[Uc] control circuit voltage: 24 V AC 50/60 Hz
Average resistance: 1.22 Ohm at 20 °C
Inductance of closed circuit: 0.08 H
Product compatibility: LC1D40
LC1D50
LC1D65...D95
Mechanical durability: 4 Mcycles
Maximum operating rate: 3600 cyc/h 60 °C
Coil technology: Without built-in suppressor module
Control circuit voltage limits: Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C)
Operational: 0.8...1.1 Uc at 50 Hz (at <55 °C)
Operational: 0.85...1.1 Uc at 60 Hz (at <55 °C)
Inrush power in VA: 245 VA 60 Hz cos phi 0.75 (at 20 °C)
245 VA 50 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA: 26 VA 60 Hz cos phi 0.3 (at 20 °C)
26 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat dissipation: 6…10 W at 50/60 Hz
Ambient air temperature for operation: -5…60 °C
Net weight: 0.28 kg
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 7.0 cm
Package 1 Width: 8.0 cm
Package 1 Length: 16.0 cm
Package 1 Weight: 317.0 g
Unit Type of Package 2: S02
Number of Units in Package 2: 16
Package 2 Height: 30.0 cm
Package 2 Width: 30.0 cm
Package 2 Length: 40.0 cm
Package 2 Weight: 5.506 kg
Warranty: 18 months
