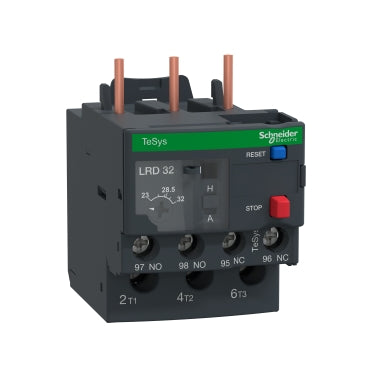

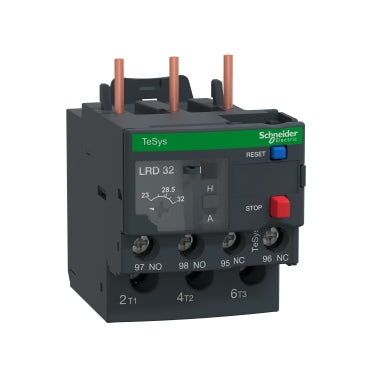

LRD32 | Overload Relay: TeSys D, Class 10 with Single Phase Sensor, Trip 23A to 32A, For use with LC1D25 thru LC1D32 | Schneider Electric (Square D)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LRD32

Jump to: Overview Specifications Reviews

Overview

Details for LRD32

23-32a Thermal Overload Relay The Schneider Electric (Square D) LRD32 is a thermal overload relay designed to protect motors from overloads and short circuits. It is ideal for use in industrial applications where reliable and efficient protection is required. Key Features:- Provides protection against overloads and short circuits- Adjustable trip setting for precise protection- Manual or automatic reset options- Compact design for easy installation- Complies with UL, CSA, and IEC standards Applications:- Industrial motors- Pumps- Fans- Compressors- Conveyors- Other industrial equipment Specifications:- Trip Current: 23-32A- Voltage Rating: 600V AC- Frequency: 50/60Hz- Number of Poles: 3- Mounting: DIN rail or panel mount- Dimensions: 3.5" x 2.2" x 1.8" Our HVAC supply store offers the best prices and fast shipping on the Schneider Electric (Square D) LRD32 thermal overload relay. TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 16 to 24 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Specifications

range: TeSys;TeSys Deca
product name: TeSys LRD;TeSys Deca
Product or Component Type: Differential thermal overload relay
device short name: LRD
relay application: Motor protection
Product Compatibility: LC1D32;LC1D25;LC1D38
network type: AC;DC
thermal overload class: Class 10A IEC 60947-4-1
thermal protection adjustment range: 23…32 A
[Ui] rated insulation voltage: Power circuit 600 V CSA;Power circuit 600 V UL;Power circuit 690 V IEC 60947-4-1
Network Frequency: 0...400 Hz
mounting support: Plate;with specific accessories;Rail;with specific accessories;Under contactor
tripping threshold: 1.14 +/- 0.06 Ir IEC 60947-4-1
auxiliary contact composition: 1 NO + 1 NC
[Ith] conventional free air thermal current: 5 A signalling circuit
permissible current: 1.5 A 240 V AC-15 signalling circuit;0.1 A 250 V DC-13 signalling circuit
[Ue] rated operational voltage: 690 V AC 0...400 Hz power circuit IEC 60947-4-1
associated fuse rating: 4 A gG signalling circuit;4 A BS signalling circuit
[Uimp] rated impulse withstand voltage: 6 kV
phase failure sensitivity: Tripping current 130 % of Ir on two phase;the last one at 0
control type: Red push-button stop;Blue push-button reset
temperature compensation: -4…140 °F (-20…60 °C)
connections - terminals: Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) solid;Power circuit screw clamp terminals 1 0.00…0.02 in² (1.5…10 mm²) flexible without cable end;Power circuit screw clamp terminals 1 0.00…0.01 in² (1…6 mm²) flexible with cable end;Power circuit screw clamp terminals 1 0.00…0.02 in² (1.5…10 mm²) solid
tightening torque: Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals;Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals
Height: 2.60 in (66 mm)
Width: 1.77 in (45 mm)
Depth: 2.76 in (70 mm)
Net Weight: 0.27 lb(US) (0.124 kg)
climatic withstand: IACS E10
IP degree of protection: IP20 conforming to IEC 60529
ambient air temperature for operation: -4…140 °F (-20…60 °C) without derating IEC 60947-4-1
Ambient Air Temperature for Storage: -76…158 °F (-60…70 °C)
flame retardance: V1 conforming to UL 94
mechanical robustness: Vibrations6 Gn IEC 60068-2-6;Shocks15 Gn for 11 ms IEC 60068-2-7
dielectric strength: 1.89 kV 50 Hz IEC 60947-1
Standards: EN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;UL 60947-5-1;CSA C22.2 No 60947-4-1;CSA C22.2 No 60947-5-1;GB/T 14048.4;GB/T 14048.5;EN 50495
Product Certifications: IEC;UL;CSA;CCC;EAC;BV;RINA;DNV-GL;LROS (Lloyds register of shipping);ATEX INERIS;UKCA
Category: 22347-CONTACTOR;D-LINE;OVERLOADS-NEW
Discount Schedule: I12
GTIN: 3389110346855
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.17 in (5.500 cm)
Package 1 Width: 2.80 in (7.100 cm)
Package 1 Length: 3.15 in (8.000 cm)
Package 1 Weight: 4.94 oz (140.000 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 24
Package 2 Height: 5.91 in (15.000 cm)
Package 2 Width: 11.81 in (30.000 cm)
Package 2 Length: 15.75 in (40.000 cm)
Package 2 Weight: 8.21 lb(US) (3.723 kg)
Warranty: 18 months
