LRD22 | Overload Relay (TeSys D) Class 10 with Single Phase Sens., Trip: 16A to 24A | Schneider Electric (Square D)

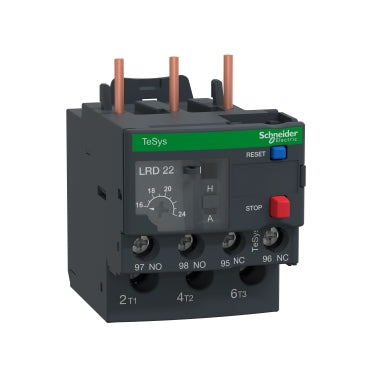

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LRD22

Jump to: Overview Specifications Reviews

Overview

Details for LRD22

Schneider Electric (Square D) LRD22 16/24A IEC Overload Relay Schneider Electric's LRD22 overload relay (SKU: LRD22) is a reliable and precise protection device designed to safeguard your electrical systems from damage caused by overloads and short circuits. This versatile relay features an adjustable tripping range of 16 to 24A, making it suitable for various applications. The LRD22 is built with robust construction and high-quality components, ensuring long-lasting performance in demanding industrial environments. It utilizes precision-engineered mechanisms to accurately detect current overloads and quickly trip the circuit to protect your equipment and wiring. Its compact design allows for easy installation in control panels or enclosures. Key Features: Adjustable tripping range: 16 to 24A IEC standard compliance Manual and automatic reset options Thermal protection against overloads Compact and robust design Applications: Motor protection in industrial machinery Control and protection of electrical circuits Overload protection for pumps, fans, and compressors Maintenance professionals and industrial engineers trust the Schneider Electric (Square D) LRD22 overload relay for its reliability, accuracy, and long service life. Choose our HVAC supply store for the best prices and fast shipping on premium products like the LRD22! TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 16 to 24 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Specifications

range: TeSys;TeSys Deca
product name: TeSys LRD;TeSys Deca
Product or Component Type: Differential thermal overload relay
device short name: LRD
relay application: Motor protection
Product Compatibility: LC1D25;LC1D32;LC1D38
network type: DC;AC
thermal overload class: Class 10A IEC 60947-4-1
thermal protection adjustment range: 16…24 A
[Ui] rated insulation voltage: Power circuit 600 V CSA;Power circuit 600 V UL;Power circuit 690 V IEC 60947-4-1
Network Frequency: 0...400 Hz
mounting support: Plate;with specific accessories;Rail;with specific accessories;Under contactor
tripping threshold: 1.14 +/- 0.06 Ir IEC 60947-4-1
auxiliary contact composition: 1 NO + 1 NC
[Ith] conventional free air thermal current: 5 A signalling circuit
permissible current: 1.5 A 240 V AC-15 signalling circuit;0.1 A 250 V DC-13 signalling circuit
[Ue] rated operational voltage: 690 V AC 0...400 Hz power circuit IEC 60947-4-1
associated fuse rating: 4 A gG signalling circuit;4 A BS signalling circuit
[Uimp] rated impulse withstand voltage: 6 kV
phase failure sensitivity: Tripping current 130 % of Ir on two phase;the last one at 0
control type: Red push-button stop;Blue push-button reset
temperature compensation: -4…140 °F (-20…60 °C)
connections - terminals: Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) solid;Power circuit screw clamp terminals 1 0.00…0.02 in² (1.5…10 mm²) flexible without cable end;Power circuit screw clamp terminals 1 0.00…0.01 in² (1…6 mm²) flexible with cable end;Power circuit screw clamp terminals 1 0.00…0.02 in² (1.5…10 mm²) solid
tightening torque: Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals;Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals
Height: 2.60 in (66 mm)
Width: 1.77 in (45 mm)
Depth: 2.76 in (70 mm)
Net Weight: 0.27 lb(US) (0.124 kg)
climatic withstand: IACS E10
IP degree of protection: IP20 conforming to IEC 60529
ambient air temperature for operation: -4…140 °F (-20…60 °C) without derating IEC 60947-4-1
Ambient Air Temperature for Storage: -76…158 °F (-60…70 °C)
flame retardance: V1 conforming to UL 94
mechanical robustness: Vibrations6 Gn IEC 60068-2-6;Shocks15 Gn for 11 ms IEC 60068-2-7
dielectric strength: 1.89 kV 50 Hz IEC 60947-1
Standards: EN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;UL 60947-5-1;CSA C22.2 No 60947-4-1;CSA C22.2 No 60947-5-1;GB/T 14048.4;GB/T 14048.5;EN 50495
Product Certifications: IEC;UL;CSA;CCC;EAC;BV;RINA;DNV-GL;LROS (Lloyds register of shipping);ATEX INERIS;UKCA
Category: 22347-CONTACTOR;D-LINE;OVERLOADS-NEW
Discount Schedule: I12
GTIN: 3389110346848
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.97 in (5.0 cm)
Package 1 Width: 2.99 in (7.6 cm)
Package 1 Length: 3.46 in (8.8 cm)
Package 1 Weight: 5.04 oz (143.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 24
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 8.23 lb(US) (3.731 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 384
Package 3 Height: 31.50 in (80.0 cm)
Package 3 Width: 31.50 in (80.0 cm)
Package 3 Length: 23.62 in (60.0 cm)
Package 3 Weight: 165.18 lb(US) (74.924 kg)
Warranty: 18 months
