LRD12 | TESYS LRD THERMAL OVERLOAD RELAYS, 5.5...8 A, CLASS 10A | Schneider Electric (Square D)

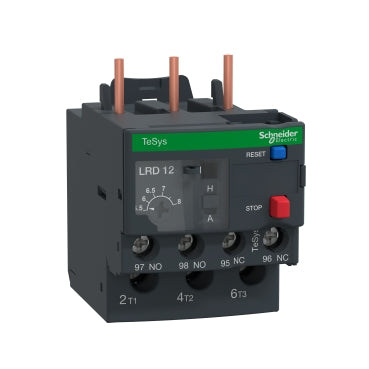

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LRD12

Jump to: Overview Specifications Reviews

Overview

Details for LRD12

Schneider Electric (Square D) NCO-LRD12 Overload Relay The Schneider Electric (Square D) NCO-LRD12 Overload Relay is a crucial component for protecting electrical equipment from damage caused by overloads or short circuits. This 5.5/8A relay is designed with precision and reliability, making it an essential investment for industrial engineers and maintenance professionals. Crafted from durable materials, the NCO-LRD12 features a sturdy construction that withstands demanding industrial environments. Its compact size enables easy installation in various electrical setups. The relay operates on a wide voltage range, ensuring compatibility with different electrical systems. The NCO-LRD12 Overload Relay offers enhanced safety and performance for your electrical equipment. Its quick response time minimizes damage to connected devices during overloads or short circuits. Additionally, its manual reset feature allows for convenient and efficient troubleshooting. Technical Specifications: * SKU: LRD12 * Amperage: 5.5/8A * Voltage Range: Wide range compatibility * Construction: Durable materials * Dimensions: Compact design for easy installation Benefits: * Protects equipment from damage caused by overloads or short circuits * Durable construction for long-lasting performance * Wide voltage range compatibility for flexibility * Quick response time for enhanced safety * Manual reset feature for easy troubleshooting Our HVAC supply store offers the NCO-LRD12 Overload Relay at competitive prices with fast shipping. Invest in this essential safety component today and safeguard your electrical equipment from potential damage. TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 5.5 to 8 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Specifications

range: TeSys;TeSys Deca
product name: TeSys LRD;TeSys Deca
Product or Component Type: Differential thermal overload relay
device short name: LRD
relay application: Motor protection
Product Compatibility: LC1D18;LC1D25;LC1D32;LC1D12;LC1D09;LC1D38
network type: DC;AC
thermal overload class: Class 10A IEC 60947-4-1
thermal protection adjustment range: 5.5…8 A
[Ui] rated insulation voltage: Power circuit 600 V CSA;Power circuit 600 V UL;Power circuit 690 V IEC 60947-4-1
Network Frequency: 0...400 Hz
mounting support: Plate;with specific accessories;Rail;with specific accessories;Under contactor
tripping threshold: 1.14 +/- 0.06 Ir IEC 60947-4-1
auxiliary contact composition: 1 NO + 1 NC
[Ith] conventional free air thermal current: 5 A signalling circuit
permissible current: 1.5 A 240 V AC-15 signalling circuit;0.1 A 250 V DC-13 signalling circuit
[Ue] rated operational voltage: 690 V AC 0...400 Hz power circuit IEC 60947-4-1
associated fuse rating: 4 A gG signalling circuit;4 A BS signalling circuit
[Uimp] rated impulse withstand voltage: 6 kV
phase failure sensitivity: Tripping current 130 % of Ir on two phase;the last one at 0
control type: Red push-button stop;Blue push-button reset
temperature compensation: -4…140 °F (-20…60 °C)
connections - terminals: Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) solid;Power circuit screw clamp terminals 1 0.00…0.02 in² (1.5…10 mm²) flexible without cable end;Power circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible with cable end;Power circuit screw clamp terminals 1 0.00…0.01 in² (1…6 mm²) solid
tightening torque: Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals;Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals
Height: 2.60 in (66 mm)
Width: 1.77 in (45 mm)
Depth: 2.76 in (70 mm)
Net Weight: 0.27 lb(US) (0.124 kg)
climatic withstand: IACS E10
IP degree of protection: IP20 conforming to IEC 60529
ambient air temperature for operation: -4…140 °F (-20…60 °C) without derating IEC 60947-4-1
Ambient Air Temperature for Storage: -76…158 °F (-60…70 °C)
flame retardance: V1 conforming to UL 94
mechanical robustness: Vibrations6 Gn IEC 60068-2-6;Shocks15 Gn for 11 ms IEC 60068-2-7
dielectric strength: 1.89 kV 50 Hz IEC 60947-1
Standards: EN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;UL 60947-5-1;CSA C22.2 No 60947-4-1;CSA C22.2 No 60947-5-1;GB/T 14048.4;GB/T 14048.5;EN 50495
Product Certifications: IEC;UL;CSA;CCC;EAC;BV;RINA;DNV-GL;LROS (Lloyds register of shipping);ATEX INERIS;UKCA
Category: 22347-CONTACTOR;D-LINE;OVERLOADS-NEW
Discount Schedule: I12
GTIN: 3389110346800
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.97 in (5 cm)
Package 1 Width: 3.11 in (7.9 cm)
Package 1 Length: 3.54 in (9 cm)
Package 1 Weight: 5.01 oz (142 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 24
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 8.73 lb(US) (3.959 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 384
Package 3 Height: 31.50 in (80 cm)
Package 3 Width: 31.50 in (80 cm)
Package 3 Length: 23.62 in (60 cm)
Package 3 Weight: 153.31 lb(US) (69.54 kg)
Warranty: 18 months
