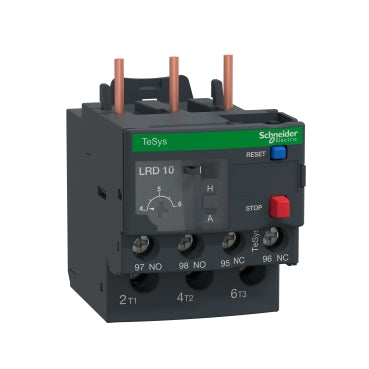

LRD10 | Overload Relay (TeSys D) Class 10 with Single Phase Sens., Trip: 4.0A to 6.0A | Schneider Electric (Square D)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LRD10

Jump to: Overview Specifications Reviews

Overview

Details for LRD10

4-6AMP Overload Relay: LRD10: Schneider Electric (Square D)The LRD10 overload relay from Schneider Electric (Square D) is a compact and reliable device designed to protect your motor from overloads and short circuits. Its compact design allows for easy integration into control panels and enclosures, while its robust construction ensures longevity in demanding industrial environments. Key Features: Compact size: Fits easily into control panels and enclosures. Robust construction: Ensures durability and reliability in industrial settings. Easy to install: Simplifies the integration process. Applications: The LRD10 overload relay is commonly used in industrial applications to protect motors from overloads and short circuits, including: Motor protection: Prevents motor damage caused by overloads and short circuits. Pump protection: Shields pumps from electrical faults and overloads. Conveyor protection: Protects conveyors from electrical issues and overloads. Benefits: Protects motors from damage: Prevents costly motor repairs and replacements. Enhances system reliability: Minimizes downtime and improves overall system performance. Compliant with industry standards: Ensures adherence to safety regulations and industry best practices. Our HVAC supply store: Your Trusted Source for Industrial ProductsOur shop provides the most competitive prices and rapid shipping on all your industrial product needs. Choose Our HVAC supply store as your partner for reliable and cost-effective industrial solutions. TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 4 to 6 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Specifications

range: TeSys;TeSys Deca
product name: TeSys LRD;TeSys Deca
Product or Component Type: Differential thermal overload relay
device short name: LRD
relay application: Motor protection
Product Compatibility: LC1D09;LC1D32;LC1D38;LC1D12;LC1D18;LC1D25
network type: DC;AC
thermal overload class: Class 10A IEC 60947-4-1
thermal protection adjustment range: 4…6 A
[Ui] rated insulation voltage: Power circuit 600 V CSA;Power circuit 600 V UL;Power circuit 690 V IEC 60947-4-1
Network Frequency: 0...400 Hz
mounting support: Plate;with specific accessories;Rail;with specific accessories;Under contactor
tripping threshold: 1.14 +/- 0.06 Ir IEC 60947-4-1
auxiliary contact composition: 1 NO + 1 NC
[Ith] conventional free air thermal current: 5 A signalling circuit
permissible current: 3 A 120 V AC-15 signalling circuit;0.22 A 125 V DC-13 signalling circuit
[Ue] rated operational voltage: 690 V AC 0...400 Hz power circuit IEC 60947-4-1
associated fuse rating: 4 A gG signalling circuit;4 A BS signalling circuit
[Uimp] rated impulse withstand voltage: 6 kV
phase failure sensitivity: Tripping current 130 % of Ir on two phase;the last one at 0
control type: Red push-button stop;Blue push-button reset
temperature compensation: -4…140 °F (-20…60 °C)
connections - terminals: Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) solid without cable end;Power circuit screw clamp terminals 1 0.00…0.02 in² (1.5…10 mm²) flexible without cable end;Power circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible with cable end;Power circuit screw clamp terminals 1 0.00…0.01 in² (1…6 mm²) solid without cable end
tightening torque: Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals;Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals
Height: 2.60 in (66 mm)
Width: 1.77 in (45 mm)
Depth: 2.76 in (70 mm)
Net Weight: 0.27 lb(US) (0.124 kg)
climatic withstand: IACS E10
IP degree of protection: IP20 conforming to IEC 60529
ambient air temperature for operation: -4…140 °F (-20…60 °C) without derating IEC 60947-4-1
Ambient Air Temperature for Storage: -76…158 °F (-60…70 °C)
flame retardance: V1 conforming to UL 94
mechanical robustness: Vibrations6 Gn IEC 60068-2-6;Shocks15 Gn for 11 ms IEC 60068-2-7
dielectric strength: 1.89 kV 50 Hz IEC 60947-1
Standards: EN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;UL 60947-5-1;CSA C22.2 No 60947-4-1;CSA C22.2 No 60947-5-1;GB/T 14048.4;GB/T 14048.5;EN 50495
Product Certifications: IEC;UL;CSA;CCC;EAC;BV;RINA;DNV-GL;LROS (Lloyds register of shipping);ATEX INERIS;UKCA
Category: 22347-CONTACTOR;D-LINE;OVERLOADS-NEW
Discount Schedule: I12
GTIN: 3389110346794
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.97 in (5 cm)
Package 1 Width: 3.07 in (7.8 cm)
Package 1 Length: 3.46 in (8.8 cm)
Package 1 Weight: 4.97 oz (141 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 24
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 8.10 lb(US) (3.674 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 384
Package 3 Height: 29.53 in (75 cm)
Package 3 Width: 23.62 in (60 cm)
Package 3 Length: 31.50 in (80 cm)
Package 3 Weight: 148.22 lb(US) (67.232 kg)
Warranty: 18 months
