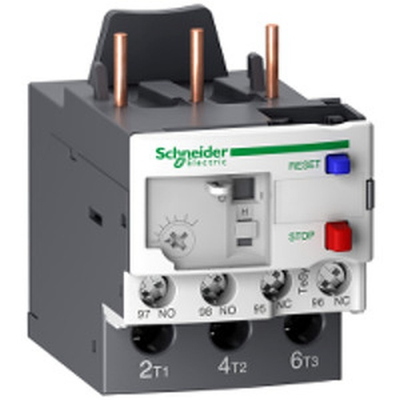

LR3D32L | TeSys LRD Thermal Overload Relays - 23...32 A - Class 20 | Schneider Electric (Square D)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LR3D32L

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) LR3D32L Documents

More Info

Overview

Details for LR3D32L

Schneider Electric (Square D) LR3D32L 600V 32AMP Overload Relay. This industrial-grade relay provides reliable protection for your electrical systems, safeguarding against overloads and ensuring safe operation. Featuring a compact design and durable construction, the LR3D32L is ideal for applications ranging from commercial buildings to manufacturing plants. Its key features include: 600V Rated Voltage: Suitable for use in high-voltage systems. 32 Amp*Maximum Current: Provides protection against excessive current draw. Manual and Automatic Reset: Offers flexibility in resetting the relay after an overload event. Compact Design: Easily fits into existing electrical panels or enclosures. Industry-Standard Mounting: Compatible with standard DIN rails for convenient installation. UL Listed: Meets stringent safety standards. Trust Schneider Electric (Square D) for reliable and efficient protection for your electrical systems. Our HVAC supply store offers the best prices and fast shipping for your industrial needs. Order today and enhance the safety and performance of your electrical systems! LR3D32L is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors 15kW@400V thanks to a thermal range 23-32A , a tripping class 20, for use with unbalanced loads. LR3D32L is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range 23-32A and tripping class 20, it protects unbalanced loads and motors 15kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection relay, bimetallic type, for use with unbalanced loads (non differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D25-D38 to form a compact starter. Light and compact, 45mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).

Specifications

range: TeSys
product name: TeSys LRD;TeSys Deca
Product or Component Type: Non differential thermal overload relay
device short name: LR3D
relay application: Motor protection
Product Compatibility: LC1D38;LC1D25;LC1D32
network type: DC;AC
thermal overload class: Class 20 IEC 60947-4-1
thermal protection adjustment range: 23…32 A
[Ui] rated insulation voltage: Power circuit 600 V CSA;Power circuit 600 V UL;Power circuit 690 V IEC 60947-4-1
Network Frequency: 0...400 Hz
mounting support: Plate;with specific accessories;Rail;with specific accessories;Under contactor
tripping threshold: 1.14 +/- 0.06 Ir IEC 60947-4-1
auxiliary contact composition: 1 NO + 1 NC
[Ith] conventional free air thermal current: 5 A signalling circuit
permissible current: 3 A 120 V AC-15 signalling circuit;0.22 A 125 V DC-13 signalling circuit
[Ue] rated operational voltage: 690 V AC 0...400 Hz power circuit IEC 60947-4-1
associated fuse rating: 4 A gG signalling circuit;4 A BS signalling circuit
[Uimp] rated impulse withstand voltage: 6 kV
phase failure sensitivity: Tripping current 130 % of Ir on two phase;the last one at 0
control type: Red push-button stop;Blue push-button reset
temperature compensation: -4…140 °F (-20…60 °C)
connections - terminals: Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) solid without cable end;Power circuit screw clamp terminals 1 0.00…0.02 in² (1.5…10 mm²) flexible without cable end;Power circuit screw clamp terminals 1 0.00…0.01 in² (1…6 mm²) flexible with cable end;Power circuit screw clamp terminals 1 0.00…0.02 in² (1.5…10 mm²) solid without cable end
tightening torque: Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals;Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals
Height: 2.60 in (66 mm)
Width: 1.77 in (45 mm)
Depth: 2.99 in (76 mm)
Net Weight: 0.32 lb(US) (0.144 kg)
climatic withstand: IACS E10
IP degree of protection: IP20 conforming to IEC 60529
ambient air temperature for operation: -4…140 °F (-20…60 °C) without derating IEC 60947-4-1
Ambient Air Temperature for Storage: -76…158 °F (-60…70 °C)
mechanical robustness: Shocks15 Gn for 11 ms IEC 60068-2-7;Vibrations3 GN IEC 60068-2-6
dielectric strength: 1.89 kV 50 Hz IEC 60947-1
Standards: EN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;UL 60947-5-1;CSA C22.2 No 60947-4-1;CSA C22.2 No 60947-5-1;EN 50495
Product Certifications: IEC;UL;CSA;EAC;ABS;ATEX INERIS;UKCA
Category: 22347-CONTACTOR;D-LINE;OVERLOADS-NEW
Discount Schedule: I12
GTIN: 3606480609756
Returnability: Yes
Country of origin: TH
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.27 in (8.3 cm)
Package 1 Width: 2.83 in (7.2 cm)
Package 1 Length: 1.77 in (4.5 cm)
Package 1 Weight: 5.08 oz (144.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 24
Package 2 Height: 15.75 in (40 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 5.91 in (15 cm)
Package 2 Weight: 7.72 lb(US) (3.5 kg)
Unit Type of Package 3: P12
Number of Units in Package 3: 768
Package 3 Height: 29.53 in (75 cm)
Package 3 Width: 31.50 in (80 cm)
Package 3 Length: 47.24 in (120 cm)
Package 3 Weight: 324.08 lb(US) (147 kg)
Warranty: 18 months
