LR3D22L | TeSys LRD Thermal Overload Relays - 17...24 A - class 20 | Schneider Electric (Square D)

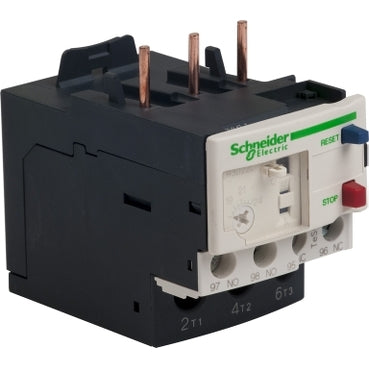

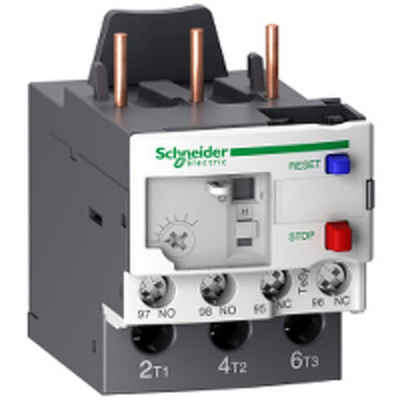

TeSys LRD Thermal Overload Relay (LR3D22L) by Schneider Electric (Square D) The TeSys LRD Thermal Overload Relay (LR3D22L) by Schneider Electric (Square D) is an essential protection device for electrical circuits, safeguarding against motor damage caused by overloads or short circuits. It features a compact design and is ideally suited for industrial applications. This thermal overload relay is designed for use with motor currents up to 24A. It provides adjustable tripping ranges to accommodate different motor power requirements. The reset button allows for quick and easy reset after a trip event. Key Features: * Thermal Overload Protection: Protects motors from overloads and short circuits * Compact Design: Space-saving construction for easy installation * Adjustable Tripping Ranges: Customizable to match motor current requirements * Reset Button: Enables quick and effortless reset after a trip event * Durable Construction: Robust design for long-lasting performance Applications: The TeSys LRD Thermal Overload Relay finds applications in various industrial settings, such as: * Motor Protection: Safeguarding motors in pumps, conveyors, fans, and other motor-driven equipment * Circuit Protection: Preventing electrical circuit damage caused by overloads or short circuits * Industrial Machinery: Ensuring reliable operation of industrial machinery and equipment Shop our HVAC supply store now for the best prices and fast shipping on the TeSys LRD Thermal Overload Relay (LR3D22L)! LR3D22L is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors 9-11kW@400V thanks to a thermal range 16-24A , a tripping class 20, for use with unbalanced loads. LR3D22L is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range 16-24A and tripping class 20, it protects unbalanced loads and motors 11kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection relay, bimetallic type, for use with unbalanced loads (non differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D25-D38 to form a compact starter. Light and compact, 45mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).
