LP1K0901BD | TeSys K Contactor, 3-Poles (3 NO), 9A, 24 DC Coil, Non-Reversing | Schneider Electric (Square D)

Schneider Electric (Square D) | LP1K0901BD

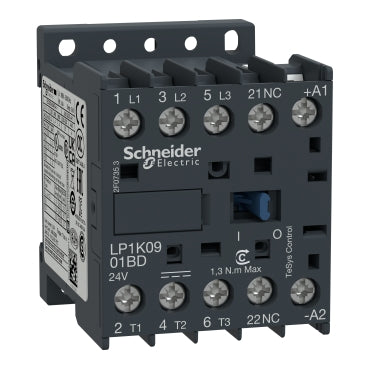

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LP1K0901BD

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) LP1K0901BD Documents

More Info

Overview

Details for LP1K0901BD

Schneider Electric (Square D) LP1K0901BD Non-Reversing Contactor: Enhance Your Control Capabilities The LP1K0901BD contactor from Schneider Electric (Square D) is an electromechanical device designed to control electrical circuits reliably. Featuring a compact size, this contactor is ideal for applications where space is limited. With a voltage rating of 24VDC and a current rating of 9A, the LP1K0901BD offers exceptional performance for switching loads within its specified range. Its 3-pole configuration allows for control of three separate circuits simultaneously, enhancing versatility. The 1 normally closed (1NC) contact configuration provides flexibility in circuit design. This contactor is constructed with high-quality materials for durability and longevity. Its silver alloy contacts minimize contact resistance and ensure reliable operation over an extended lifespan. The compact design facilitates easy installation and maintenance, reducing downtime. The LP1K0901BD contactor is commonly used in industrial automation, motor control, and lighting applications. Its ability to handle both inductive and resistive loads makes it suitable for various applications. Our HVAC supply store offers the LP1K0901BD contactor at competitive prices with fast shipping. Contact us today for expert assistance and to place your order. LP1K0901BD is a compact 3-pole TeSys K contactor from Schneider Electric for motor applications. Rated 9A AC-3 4kW@400V, it includes a 24V DC coil and 1NC auxiliary contact allowing easy integration to all control systems. LP1K0901BD is a 3-pole TeSys K contactor from Schneider Electric for simple motor applications rated up to 4kW@400V. Very compact, DIN-rail compatible, with connections by screw clamp terminals, it can be easily integrated into all control systems thanks to its 24V DC coil and 1NC built-in auxiliary contact. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine) and is certified Green Premium (RoHs/Reach). Very compact, 45mm wide, for DIN-rail and panel mounting. Ready for connection to all control systems thanks to a 24V DC control voltage and 1NC built-in auxiliary contact. Optimized for simple power applications. Can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K).

Specifications

Range of Product: TeSys K
range: TeSys
Product or Component Type: Contactor
device short name: LP1K
contactor application: Resistive load;Motor control
utilisation category: AC-1;AC-4;AC-3;AC-3e
poles description: 3P
pole contact composition: 3 NO
[Ie] rated operational current: 20 A 122 °F (50 °C)) <= 440 V AC AC-1 power circuit;9 A<= 440 V AC AC-3 power circuit;16 A 158 °F (70 °C)) 690 V AC AC-1 power circuit;9 A<= 440 V AC AC-3e power circuit
auxiliary contact composition: 1 NC
auxiliary contacts type: Instantaneous 1 NC
control circuit voltage limits: Operational 0.8...1.15 Uc 122 °F (50 °C));Drop-out 0.1...0.75 Uc 122 °F (50 °C))
[Ui] rated insulation voltage: Power circuit 600 V UL 508;Power circuit 690 V IEC 60947-4-1;Signalling circuit 690 V IEC 60947-4-1;Signalling circuit 690 V IEC 60947-5-1;Signalling circuit 600 V UL 508;Power circuit 600 V CSA C22.2 No 14;Signalling circuit 600 V CSA C22.2 No 14
[Uimp] rated impulse withstand voltage: 8 kV
overvoltage category: III
Mounting Support: Rail;Plate
flame retardance: V1 conforming to UL 94;Requirement 2 conforming to NF F 16-101;Requirement 2 conforming to NF F 16-102
tightening torque: 7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals Philips No 2;7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals flat Ø 6 mm;7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals pozidriv No 2
[Ue] rated operational voltage: Power circuit 690 V AC 50/60 Hz;Signalling circuit <= 690 V AC 50/60 Hz
[Ith] conventional free air thermal current: 20 A 122 °F (50 °C) power circuit;10 A 122 °F (50 °C) signalling circuit
Irms rated making capacity: 110 A AC power circuit NF C 63-110;110 A AC power circuit IEC 60947;110 A AC signalling circuit IEC 60947
rated breaking capacity: 110 A 415 V IEC 60947;110 A 440 V IEC 60947;80 A 500 V IEC 60947;110 A 220...230 V IEC 60947;110 A 380...400 V IEC 60947;70 A 660...690 V IEC 60947
associated fuse rating: 25 A gG <= 440 V power circuit;25 A aM power circuit;10 A gG signalling circuit IEC 60947;10 A gG signalling circuit VDE 0660
average impedance: 3 mOhm - Ith 20 A 50 Hz power circuit
inrush power in W: 3 W 68 °F (20 °C))
hold-in power consumption in W: 3 W 68 °F (20 °C)
operating time: 30...40 ms coil energisation and NO closing;10 ms coil de-energisation and NO opening
safety reliability level: B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
mechanical durability: 10 Mcycles
maximum operating rate: 3600 cyc/h
minimum switching current: 5 mA signalling circuit
minimum switching voltage: 17 V signalling circuit
insulation resistance: > 10 MOhm signalling circuit
Height: 2.28 in (58 mm)
Width: 1.77 in (45 mm)
Depth: 2.24 in (57 mm)
Net Weight: 0.50 lb(US) (0.225 kg)
Product Certifications: UL;CSA;UKCA
Ambient air temperature for operation: -13…122 °F (-25…50 °C)
Ambient Air Temperature for Storage: -58…176 °F (-50…80 °C)
operating altitude: 6561.68 ft (2000 m) without derating
Category: 22321-CTR;K-LINE;DC;OPEN;NONREV
Discount Schedule: I12
GTIN: 3389110363234
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.97 in (5.000 cm)
Package 1 Width: 2.36 in (6.000 cm)
Package 1 Length: 2.56 in (6.500 cm)
Package 1 Weight: 7.80 oz (221.000 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 40
Package 2 Height: 5.91 in (15.000 cm)
Package 2 Width: 11.81 in (30.000 cm)
Package 2 Length: 15.75 in (40.000 cm)
Package 2 Weight: 20.06 lb(US) (9.101 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 640
Package 3 Height: 29.53 in (75.000 cm)
Package 3 Width: 31.50 in (80.000 cm)
Package 3 Length: 23.62 in (60.000 cm)
Package 3 Weight: 338.67 lb(US) (153.616 kg)
Warranty: 18 months
