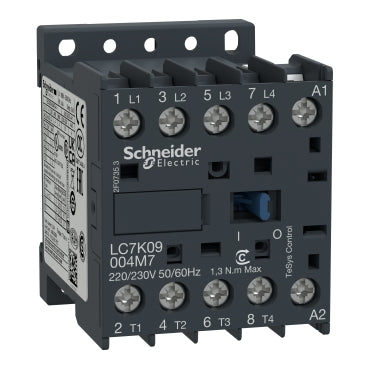

LC7K09004M7 | TeSys K Contactor, 4-Poles (4 NO), 20A, 220-230V AC Coil, Non-Reversing | Schneider Electric (Square D)

Schneider Electric (Square D) | LC7K09004M7

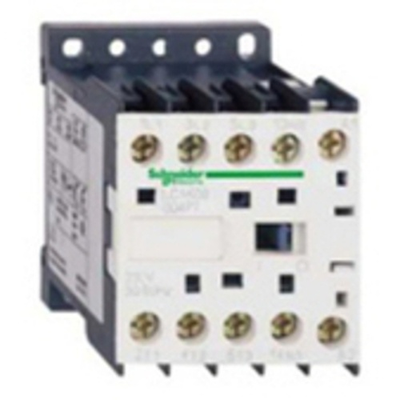

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LC7K09004M7

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) LC7K09004M7 Documents

More Info

Overview

Details for LC7K09004M7

LC7K09004M7 Contactor: Reliable and Efficient Power Control The Schneider Electric (Square D) LC7K09004M7 contactor is a robust and versatile industrial-grade device designed for reliable and efficient power control. With its compact design and advanced features, this contactor is ideal for a wide range of industrial applications, including motor control, lighting, and heating systems. The LC7K09004M7 contactor features a durable construction with 4 poles, rated for 9A current and 1.5HP @ 220V. It operates with a coil voltage of 220V AC, offering precise and efficient control. This contactor is designed with a long mechanical life of up to 10 million operations, ensuring reliable operation even under demanding industrial conditions. Key features and benefits of the LC7K09004M7 contactor include: Compact design: Allows for easy installation in tight spaces. Rugged construction: Withstands harsh industrial environments. High current capacity: Suitable for demanding applications. Long mechanical life: Ensures reliable operation over extended periods. At our HVAC supply store, we offer the LC7K09004M7 contactor at competitive prices with fast shipping. Contact us today to learn more and place your order for this high-quality component. our HVAC supply store - Your Trusted Source for Industrial Products!

Specifications

range: TeSys
Product or Component Type: Contactor
product name: TeSys K
device short name: LC7K
Device Application: Control
contactor application: Resistive load
utilisation category: AC-1
poles description: 4P
power pole contact composition: 4 NO
[Ue] rated operational voltage: Power circuit 690 V AC 50/60 Hz
[Ie] rated operational current: 20 A 122 °F (50 °C)) <= 440 V AC AC-1 power circuit;16 A 158 °F (70 °C)) 690 V AC AC-1 power circuit
control circuit type: AC 50/60 Hz silent
[Uc] control circuit voltage: 220...230 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage: 8 kV
overvoltage category: III
[Ith] conventional free air thermal current: 20 A 122 °F (50 °C) power circuit
Irms rated making capacity: 110 A AC power circuit NF C 63-110;110 A AC power circuit IEC 60947
rated breaking capacity: 110 A 415 V IEC 60947;110 A 440 V IEC 60947;80 A 500 V IEC 60947;110 A 220...230 V IEC 60947;110 A 380...400 V IEC 60947;70 A 660...690 V IEC 60947
[Icw] rated short-time withstand current: 90 A 122 °F (50 °C) - 1 s power circuit;85 A 122 °F (50 °C) - 5 s power circuit;80 A 122 °F (50 °C) - 10 s power circuit;60 A 122 °F (50 °C) - 30 s power circuit;45 A 122 °F (50 °C) - 1 min power circuit;40 A 122 °F (50 °C) - 3 min power circuit;20 A 122 °F (50 °C) - >= 15 min power circuit
associated fuse rating: 25 A gG <= 440 V power circuit;25 A aM power circuit
average impedance: 3 mOhm - Ith 20 A 50 Hz power circuit
[Ui] rated insulation voltage: Power circuit 600 V UL 508;Power circuit 690 V IEC 60947-4-1;Power circuit 600 V CSA C22.2 No 14
inrush power in VA: 3 VA 68 °F (20 °C))
hold-in power consumption in VA: 3 VA 68 °F (20 °C))
heat dissipation: 3 W
control circuit voltage limits: Operational 0.85...1.1 Uc 122 °F (50 °C));Drop-out 0.1...0.75 Uc 122 °F (50 °C))
connections - terminals: screw clamp terminals 1 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 1 0.00…0.01 in² (0.75…4 mm²)flexible without cable end;screw clamp terminals 1 0.00…0.00 in² (0.34…2.5 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 2 0.00…0.01 in² (0.75…4 mm²)flexible without cable end;screw clamp terminals 2 0.00…0.00 in² (0.34…1.5 mm²)flexible with cable end
maximum operating rate: 3600 cyc/h
signalling circuit frequency: <= 400 Hz
Mounting Support: Rail;Plate
tightening torque: 7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals Philips No 2;7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals flat Ø 6 mm;7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals pozidriv No 2
operating time: 30...40 ms coil energisation and NO closing;30 ms coil de-energisation and NO opening
safety reliability level: B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
mechanical durability: 10 Mcycles
electrical durability: 0.18 Mcycles 20 A AC-1 <= 440 V
mechanical robustness: Shocks contactor closed;on X axis10 Gn for 11 ms IEC 60068-2-27;Shocks contactor closed;on Y axis15 Gn for 11 ms IEC 60068-2-27;Shocks contactor closed;on Z axis15 Gn for 11 ms IEC 60068-2-27;Shocks contactor opened;on X axis6 Gn for 11 ms IEC 60068-2-27;Shocks contactor opened;on Y axis10 Gn for 11 ms IEC 60068-2-27;Shocks contactor opened;on Z axis10 Gn for 11 ms IEC 60068-2-27;Vibrations contactor closed4 Gn;5...300 Hz IEC 60068-2-6;Vibrations contactor opened2 Gn;5...300 Hz IEC 60068-2-6
Height: 2.28 in (58 mm)
Width: 1.77 in (45 mm)
Depth: 2.24 in (57 mm)
Net Weight: 0.50 lb(US) (0.225 kg)
standards: BS 5424;IEC 60947;NF C 63-110;VDE 0660
Product Certifications: CSA;UL;UKCA
IP degree of protection: IP2x VDE 0106
protective treatment: TC IEC 60068;TC DIN 50016
Ambient Air Temperature for Storage: -58…176 °F (-50…80 °C)
operating altitude: 6561.68 ft (2000 m) without derating
flame retardance: V1 conforming to UL 94;Requirement 2 conforming to NF F 16-101;Requirement 2 conforming to NF F 16-102
Category: 22326-CTR;K-LINE;AC;OPEN;NONREV
Discount Schedule: I12
GTIN: 3389110492699
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.56 in (6.5 cm)
Package 1 Width: 2.40 in (6.1 cm)
Package 1 Length: 1.85 in (4.7 cm)
Package 1 Weight: 7.72 oz (219.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 40
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 20.32 lb(US) (9.215 kg)
Warranty: 18 months
