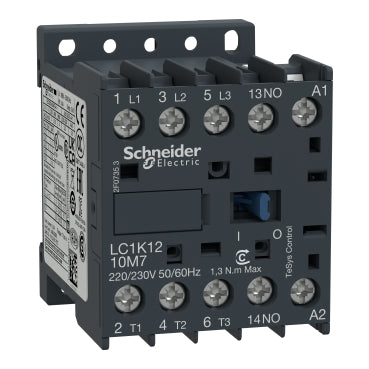

LC1K1210G7 | TeSys K Contactor, 3-Poles (3 NO), 1 NO Aux. Contact, 12A, 120V AC Coil, Non-Reversing | Schneider Electric (Square D)

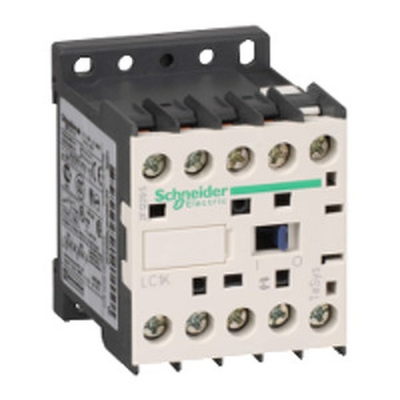

Schneider Electric (Square D) | LC1K1210G7
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LC1K1210G7

Documents and manuals

Schneider Electric (Square D) LC1K1210G7 Documents

Overview

Details for LC1K1210G7

Schneider Electric LC1K1210G7 3-Pole Contactor: Uncompromising Performance for Industrial Applications. The Schneider Electric LC1K1210G7 is a high-performance, 3-pole contactor designed to meet the demanding requirements of industrial environments. This robust contactor excels in controlling resistive loads, providing reliable switching and long service life. Engineered with precision, the LC1K1210G7 features silver-cadmium oxide (AgCdO) contacts, ensuring minimal contact resistance and excellent current-carrying capacity. Its 20A current rating makes it suitable for a wide range of applications, including motor control, lighting, and heating systems. The contactor's 120V operating voltage offers compatibility with various electrical systems. Its compact size allows for easy installation in space-constrained environments, while its DIN rail mounting design provides a secure and convenient mounting option. With its durable construction and high-quality components, the Schneider Electric LC1K1210G7 is built to withstand the rigors of industrial use. Its IP20 enclosure rating protects it from solid objects larger than 12mm, ensuring reliable operation even in challenging conditions. Our HVAC supply store offers the best prices and fast shipping on the Schneider Electric LC1K1210G7 contactor. Trust us for your industrial electrical supply needs and experience the exceptional quality and performance of Schneider Electric products. LC1K1210G7 is a compact 3-pole TeSys K contactor from Schneider Electric for motor applications. Rated 12A AC-3 5.5kW@400V, it includes a 120V 50/60Hz AC coil and 1NO auxiliary contact. LC1K1210G7 is a 3-pole TeSys K contactor from Schneider Electric for simple motor applications rated up to 5.5kW@400V. Very compact, DIN-rail compatible, with connections by screw clamp terminals, it includes a 120V 50/60Hz AC coil and 1NO built-in auxiliary contact. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine) and is certified Green Premium (RoHs/Reach). Very compact, 45mm wide, for DIN-rail and panel mounting. Provides a control circuit compatible with 50Hz and 60Hz supplies and 1NO built-in auxiliary contact. Optimized for simple power applications. Can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K).

Specifications

range
TeSys
Product or Component Type
Contactor
product name
TeSys K
device short name
LC1K
Device Application
Control
contactor application
Motor control;Resistive load
utilisation category
AC-1;AC-4;AC-3;AC-3e
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
Power circuit 690 V AC 50/60 Hz;Signalling circuit <= 690 V AC 50/60 Hz
[Ie] rated operational current
20 A 122 °F (50 °C)) <= 440 V AC AC-1 power circuit;12 A<= 440 V AC AC-3 power circuit;16 A 158 °F (70 °C)) 690 V AC AC-1 power circuit;12 A<= 440 V AC AC-3e power circuit
control circuit type
AC 50/60 Hz
[Uc] control circuit voltage
120 V AC 50/60 Hz
motor power kW
4 kW 480 V AC 50/60 Hz AC-3;4 kW 500...600 V AC 50/60 Hz AC-3;4 kW 660...690 V AC 50/60 Hz AC-3;2.2 kW 400 V AC 50/60 Hz AC-4;3 kW 220...230 V AC 50/60 Hz AC-3;5.5 kW 380...415 V AC 50/60 Hz AC-3;5.5 kW 440 V AC 50/60 Hz AC-3;4 kW 480 V AC 50/60 Hz AC-3e;4 kW 500...600 V AC 50/60 Hz AC-3e;4 kW 660...690 V AC 50/60 Hz AC-3e;3 kW 220...230 V AC 50/60 Hz AC-3e;5.5 kW 380...415 V AC 50/60 Hz AC-3e;5.5 kW 440 V AC 50/60 Hz AC-3e
auxiliary contact composition
1 NO
[Uimp] rated impulse withstand voltage
8 kV
overvoltage category
III
[Ith] conventional free air thermal current
20 A 122 °F (50 °C) power circuit;10 A 122 °F (50 °C) signalling circuit
Irms rated making capacity
110 A AC signalling circuit IEC 60947;144 A AC power circuit NF C 63-110;144 A AC power circuit IEC 60947
rated breaking capacity
110 A 440 V IEC 60947;80 A 500 V IEC 60947;70 A 660...690 V IEC 60947
[Icw] rated short-time withstand current
115 A 122 °F (50 °C) - 1 s power circuit;105 A 122 °F (50 °C) - 5 s power circuit;100 A 122 °F (50 °C) - 10 s power circuit;75 A 122 °F (50 °C) - 30 s power circuit;55 A 122 °F (50 °C) - 1 min power circuit;50 A 122 °F (50 °C) - 3 min power circuit;80 A - 1 s signalling circuit;90 A - 500 ms signalling circuit;110 A - 100 ms signalling circuit;25 A 122 °F (50 °C) - >= 15 min power circuit
associated fuse rating
25 A gG <= 440 V power circuit;25 A aM power circuit;10 A gG signalling circuit IEC 60947;10 A gG signalling circuit VDE 0660
average impedance
3 mOhm - Ith 20 A 50 Hz power circuit
[Ui] rated insulation voltage
Power circuit 600 V UL 508;Power circuit 690 V IEC 60947-4-1;Signalling circuit 690 V IEC 60947-4-1;Signalling circuit 690 V IEC 60947-5-1;Signalling circuit 600 V UL 508;Power circuit 600 V CSA C22.2 No 14;Signalling circuit 600 V CSA C22.2 No 14
insulation resistance
> 10 MOhm signalling circuit
inrush power in VA
30 VA 68 °F (20 °C))
hold-in power consumption in VA
4.5 VA 68 °F (20 °C))
heat dissipation
1.3 W
control circuit voltage limits
Operational 0.8...1.15 Uc 122 °F (50 °C));Drop-out 0.2...0.75 Uc 122 °F (50 °C))
connections - terminals
screw clamp terminals 1 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 1 0.00…0.01 in² (0.75…4 mm²)flexible without cable end;screw clamp terminals 1 0.00…0.00 in² (0.34…2.5 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 2 0.00…0.01 in² (0.75…4 mm²)flexible without cable end;screw clamp terminals 2 0.00…0.00 in² (0.34…1.5 mm²)flexible with cable end
maximum operating rate
3600 cyc/h
auxiliary contacts type
Instantaneous 1 NO
signalling circuit frequency
<= 400 Hz
minimum switching current
5 mA signalling circuit
minimum switching voltage
17 V signalling circuit
Mounting Support
Rail;Plate
tightening torque
7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals Philips No 2;7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals flat Ø 6 mm;7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals pozidriv No 2
operating time
10...20 ms coil de-energisation and NO opening;10...20 ms coil energisation and NO closing
safety reliability level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
non overlap distance
0.02 in (0.5 mm)
mechanical durability
10 Mcycles
electrical durability
0.3 Mcycles 20 A AC-1 <= 440 V;1.3 Mcycles 12 A AC-3 <= 440 V;1.3 Mcycles 12 A AC-3e <= 440 V
mechanical robustness
Shocks contactor closed;on X axis10 Gn for 11 ms IEC 60068-2-27;Shocks contactor closed;on Y axis15 Gn for 11 ms IEC 60068-2-27;Shocks contactor closed;on Z axis15 Gn for 11 ms IEC 60068-2-27;Shocks contactor opened;on X axis6 Gn for 11 ms IEC 60068-2-27;Shocks contactor opened;on Y axis10 Gn for 11 ms IEC 60068-2-27;Shocks contactor opened;on Z axis10 Gn for 11 ms IEC 60068-2-27;Vibrations contactor closed4 Gn;5...300 Hz IEC 60068-2-6;Vibrations contactor opened2 Gn;5...300 Hz IEC 60068-2-6
Height
2.28 in (58 mm)
Width
1.77 in (45 mm)
Depth
2.24 in (57 mm)
Net Weight
0.40 lb(US) (0.18 kg)
standards
BS 5424;IEC 60947;NF C 63-110;VDE 0660
Product Certifications
CSA;UL;UKCA
IP degree of protection
IP2x VDE 0106
protective treatment
TC IEC 60068;TC DIN 50016
Ambient Air Temperature for Storage
-58…176 °F (-50…80 °C)
operating altitude
6561.68 ft (2000 m) without derating
flame retardance
V1 conforming to UL 94;Requirement 2 conforming to NF F 16-101;Requirement 2 conforming to NF F 16-102
Category
22326-CTR;K-LINE;AC;OPEN;NONREV
Discount Schedule
I12
GTIN
3389110603828
Returnability
Yes
Country of origin
ID
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
1.89 in (4.8 cm)
Package 1 Width
2.44 in (6.2 cm)
Package 1 Length
2.56 in (6.5 cm)
Package 1 Weight
6.31 oz (179.0 g)
Warranty
18 months
