LC1K0910B7 | TeSys K Contactor, 3-Poles (3 NO), 1 NO Aux. Contact, 9A, 24V AC Coil, Non-Reversing | Schneider Electric (Square D)

Schneider Electric (Square D) | LC1K0910B7

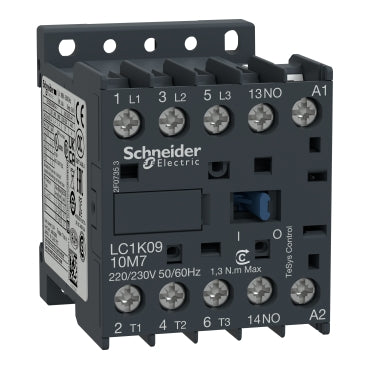

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LC1K0910B7

Jump to: Overview Specifications Reviews

Overview

Details for LC1K0910B7

LC1K0910B7 24V 3P Contactor by Schneider Electric (Square D) This industrial-grade contactor from Schneider Electric (Square D) is designed to manage high-current loads in demanding industrial applications. The LC1K0910B7 contactor features a 24V coil voltage and 3 poles, making it suitable for controlling three-phase motors. With its sturdy construction and reliable performance, this contactor ensures efficient and safe operation in various industrial environments. Key Features: * 24V coil voltage * 3 poles for controlling three-phase motors * Compact design for easy integration * High-quality materials for durability and longevity * Easy installation and maintenance Benefits: * Efficient and safe control of three-phase motors * Durable construction for demanding industrial environments * Compact design maximizes space efficiency * Easy installation and maintenance reduces downtime * Meets industry standards for reliability and performance If you need a dependable and efficient contactor for your industrial applications, the LC1K0910B7 24V 3P Contactor from Schneider Electric (Square D) is the perfect choice. Contact our HVAC supply store today for the best prices and fast shipping on all your industrial equipment needs! LC1K0910B7 is a compact 3-pole TeSys K contactor from Schneider Electric for motor applications. Rated 9A AC-3 4kW@400V, it includes a 24V 50/60Hz AC coil and 1NO auxiliary contact. LC1K0910B7 is a 3-pole TeSys K contactor from Schneider Electric for simple motor applications rated up to 4kW@400V. Very compact, DIN-rail compatible, with connections by screw clamp terminals, it includes a 24V 50/60Hz AC coil and 1NO built-in auxiliary contact. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine) and is certified Green Premium (RoHs/Reach). Very compact, 45mm wide, for DIN-rail and panel mounting. Provides a control circuit compatible with 50Hz and 60Hz supplies and 1NO built-in auxiliary contact. Optimized for simple power applications. Can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K).

Specifications

range: TeSys
Product or Component Type: Contactor
product name: TeSys K
device short name: LC1K
Device Application: Control
contactor application: Motor control;Resistive load
utilisation category: AC-3;AC-1;AC-4;AC-3e
poles description: 3P
power pole contact composition: 3 NO
[Ie] rated operational current: 20 A 122 °F (50 °C)) <= 440 V AC AC-1 power circuit;9 A<= 440 V AC AC-3 power circuit;16 A 158 °F (70 °C)) 690 V AC AC-1 power circuit;9 A<= 440 V AC AC-3e power circuit
control circuit type: AC 50/60 Hz
[Uc] control circuit voltage: 24 V AC 50/60 Hz
motor power kW: 2.2 kW 220...230 V AC 50/60 Hz AC-3;4 kW 380...415 V AC 50/60 Hz AC-3;4 kW 440 V AC 50/60 Hz AC-3;4 kW 480 V AC 50/60 Hz AC-3;4 kW 500...600 V AC 50/60 Hz AC-3;4 kW 660...690 V AC 50/60 Hz AC-3;2.2 kW 400 V AC 50/60 Hz AC-4;2.2 kW 220...230 V AC 50/60 Hz AC-3e;4 kW 380...415 V AC 50/60 Hz AC-3e;4 kW 440 V AC 50/60 Hz AC-3e;4 kW 480 V AC 50/60 Hz AC-3e;4 kW 500...600 V AC 50/60 Hz AC-3e;4 kW 660...690 V AC 50/60 Hz AC-3e
auxiliary contact composition: 1 NO
overvoltage category: III
[Ith] conventional free air thermal current: 20 A 122 °F (50 °C) power circuit;10 A 122 °F (50 °C) signalling circuit
Irms rated making capacity: 110 A AC power circuit NF C 63-110;110 A AC power circuit IEC 60947;110 A AC signalling circuit IEC 60947
rated breaking capacity: 110 A 415 V IEC 60947;110 A 440 V IEC 60947;80 A 500 V IEC 60947;110 A 220...230 V IEC 60947;110 A 380...400 V IEC 60947;70 A 660...690 V IEC 60947
associated fuse rating: 25 A gG <= 440 V power circuit;25 A aM power circuit;10 A gG signalling circuit IEC 60947;10 A gG signalling circuit VDE 0660
average impedance: 3 mOhm - Ith 20 A 50 Hz power circuit
insulation resistance: > 10 MOhm signalling circuit
inrush power in VA: 30 VA 68 °F (20 °C))
hold-in power consumption in VA: 4.5 VA 68 °F (20 °C))
heat dissipation: 1.3 W
control circuit voltage limits: Operational 0.8...1.15 Uc 122 °F (50 °C));Drop-out 0.2...0.75 Uc 122 °F (50 °C))
maximum operating rate: 3600 cyc/h
auxiliary contacts type: Instantaneous 1 NO
signalling circuit frequency: <= 400 Hz
minimum switching current: 5 mA signalling circuit
minimum switching voltage: 17 V signalling circuit
operating time: 10...20 ms coil de-energisation and NO opening;10...20 ms coil energisation and NO closing
safety reliability level: B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
non overlap distance: 0.02 in (0.5 mm)
mechanical robustness: Shocks contactor closed;on X axis10 Gn for 11 ms IEC 60068-2-27;Shocks contactor closed;on Y axis15 Gn for 11 ms IEC 60068-2-27;Shocks contactor closed;on Z axis15 Gn for 11 ms IEC 60068-2-27;Shocks contactor opened;on X axis6 Gn for 11 ms IEC 60068-2-27;Shocks contactor opened;on Y axis10 Gn for 11 ms IEC 60068-2-27;Shocks contactor opened;on Z axis10 Gn for 11 ms IEC 60068-2-27;Vibrations contactor closed4 Gn;5...300 Hz IEC 60068-2-6;Vibrations contactor opened2 Gn;5...300 Hz IEC 60068-2-6
Product Certifications: CSA;UL;UKCA
protective treatment: TC IEC 60068;TC DIN 50016
operating altitude: 6561.68 ft (2000 m) without derating
flame retardance: V1 conforming to UL 94;Requirement 2 conforming to NF F 16-101;Requirement 2 conforming to NF F 16-102
Category: 22326-CTR;K-LINE;AC;OPEN;NONREV
Discount Schedule: I12
GTIN: 3389110363623
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.77 in (4.5 cm)
Package 1 Width: 2.36 in (6 cm)
Package 1 Length: 2.56 in (6.5 cm)
Package 1 Weight: 6.35 oz (180 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 50
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 20.38 lb(US) (9.243 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 400
Package 3 Height: 17.72 in (45 cm)
Package 3 Width: 31.50 in (80 cm)
Package 3 Length: 23.62 in (60 cm)
Package 3 Weight: 180.66 lb(US) (81.944 kg)
Warranty: 18 months
