LC1K0610F7 | TeSys K Contactor, 3-Poles (3 NO), 1 NO Aux. Contact, 6A, 110V AC Coil, Non-Reversing | Schneider Electric (Square D)

Schneider Electric (Square D) | LC1K0610F7

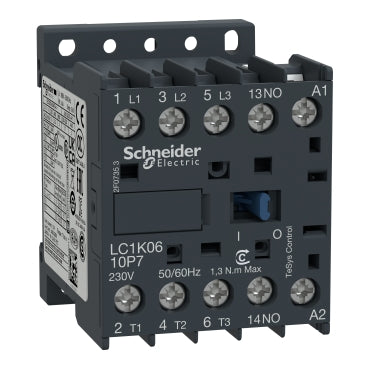

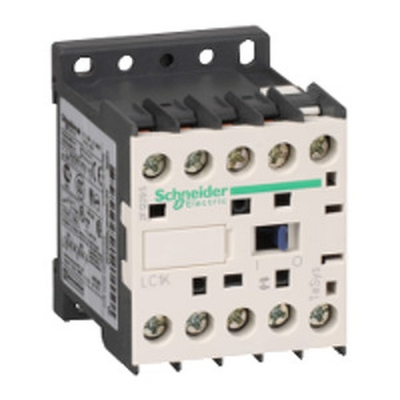

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LC1K0610F7

Jump to: Overview Specifications Reviews

Overview

Details for LC1K0610F7

Schneider Electric (Square D) LC1K0610F7 110V 6A MiniContactor with 1 Aux Contact The Schneider Electric (Square D) LC1K0610F7 is an electro-mechanical contactor designed to control power circuits in industrial applications. This 110V contactor is compact in size and features a single auxiliary contact, making it ideal for motor control, lighting, and other electrical systems. Key Features: Compact design for space-saving installation 110V AC coil voltage for direct connection to 110V power sources 6 Ampere current rating for controlling loads up to 6 Amps 1 auxiliary contact for added functionality in control circuits Easy-to-install design with screw terminals for quick and reliable connections Versatile applications in industrial control systems, including motor control, lighting, and electrical distribution Contact our HVAC supply store today for the best prices and fast shipping on electrical components. We are your trusted supplier for all your industrial needs. LC1K0610F7 is a compact 3-pole TeSys K contactor from Schneider Electric for motor applications. Rated 6A AC-3 2.2kW@400V, it includes a 110V 50/60Hz AC coil and 1NO auxiliary contact. LC1K0610F7 is a 3-pole TeSys K contactor from Schneider Electric for simple motor applications rated up to 2.2kW@400V. Very compact, DIN-rail compatible, with connections by screw clamp terminals, it includes a 110V 50/60Hz AC coil and 1NO built-in auxiliary contact. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine) and is certified Green Premium (RoHs/Reach). Very compact, 45mm wide, for DIN-rail and panel mounting. Provides a control circuit compatible with 50Hz and 60Hz supplies and 1NO built-in auxiliary contact. Optimized for simple power applications. Can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K).

Specifications

range: TeSys
Product or Component Type: Contactor
product name: TeSys K
device short name: LC1K
Device Application: Control
contactor application: Motor control
utilisation category: AC-4;AC-3;AC-3e
poles description: 3P
power pole contact composition: 3 NO
[Ue] rated operational voltage: Power circuit 690 V AC 50/60 Hz;Signalling circuit <= 690 V AC 50/60 Hz
[Ie] rated operational current: 6 A<= 440 V AC AC-3 power circuit;6 A<= 440 V AC AC-3e power circuit
control circuit type: AC 50/60 Hz
[Uc] control circuit voltage: 110 V AC 50/60 Hz
motor power kW: 1.5 kW 220...230 V AC 50/60 Hz AC-3;2.2 kW 380...415 V AC 50/60 Hz AC-3;3 kW 440 V AC 50/60 Hz AC-3;3 kW 480 V AC 50/60 Hz AC-3;3 kW 500...600 V AC 50/60 Hz AC-3;3 kW 660...690 V AC 50/60 Hz AC-3;1.5 kW 400 V AC 50/60 Hz AC-4;1.5 kW 220...230 V AC 50/60 Hz AC-3e;2.2 kW 380...415 V AC 50/60 Hz AC-3e;3 kW 440 V AC 50/60 Hz AC-3e;3 kW 480 V AC 50/60 Hz AC-3e;3 kW 500...600 V AC 50/60 Hz AC-3e;3 kW 660...690 V AC 50/60 Hz AC-3e
auxiliary contact composition: 1 NO
[Uimp] rated impulse withstand voltage: 8 kV
overvoltage category: III
[Ith] conventional free air thermal current: 20 A 122 °F (50 °C) power circuit;10 A 122 °F (50 °C) signalling circuit
Irms rated making capacity: 110 A AC power circuit NF C 63-110;110 A AC power circuit IEC 60947;110 A AC signalling circuit IEC 60947
rated breaking capacity: 110 A 415 V IEC 60947;110 A 440 V IEC 60947;80 A 500 V IEC 60947;110 A 220...230 V IEC 60947;110 A 380...400 V IEC 60947;70 A 660...690 V IEC 60947
[Icw] rated short-time withstand current: 90 A 122 °F (50 °C) - 1 s power circuit;85 A 122 °F (50 °C) - 5 s power circuit;80 A 122 °F (50 °C) - 10 s power circuit;60 A 122 °F (50 °C) - 30 s power circuit;45 A 122 °F (50 °C) - 1 min power circuit;40 A 122 °F (50 °C) - 3 min power circuit;20 A 122 °F (50 °C) - >= 15 min power circuit;80 A - 1 s signalling circuit;90 A - 500 ms signalling circuit;110 A - 100 ms signalling circuit
associated fuse rating: 25 A gG <= 440 V power circuit;25 A aM power circuit;10 A gG signalling circuit IEC 60947;10 A gG signalling circuit VDE 0660
average impedance: 3 mOhm - Ith 20 A 50 Hz power circuit
[Ui] rated insulation voltage: Power circuit 600 V UL 508;Power circuit 690 V IEC 60947-4-1;Signalling circuit 690 V IEC 60947-4-1;Signalling circuit 690 V IEC 60947-5-1;Signalling circuit 600 V UL 508;Power circuit 600 V CSA C22.2 No 14;Signalling circuit 600 V CSA C22.2 No 14
insulation resistance: > 10 MOhm signalling circuit
inrush power in VA: 30 VA 68 °F (20 °C))
hold-in power consumption in VA: 4.5 VA 68 °F (20 °C))
heat dissipation: 1.3 W
control circuit voltage limits: Operational 0.8...1.15 Uc 122 °F (50 °C));Drop-out 0.2...0.75 Uc 122 °F (50 °C))
connections - terminals: screw clamp terminals 1 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 1 0.00…0.01 in² (0.75…4 mm²)flexible without cable end;screw clamp terminals 1 0.00…0.00 in² (0.34…2.5 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 2 0.00…0.01 in² (0.75…4 mm²)flexible without cable end;screw clamp terminals 2 0.00…0.00 in² (0.34…1.5 mm²)flexible with cable end
maximum operating rate: 3600 cyc/h
auxiliary contacts type: Instantaneous 1 NO
signalling circuit frequency: <= 400 Hz
minimum switching current: 5 mA signalling circuit
minimum switching voltage: 17 V signalling circuit
Mounting Support: Plate;Rail
tightening torque: 7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals Philips No 2;7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals flat Ø 6 mm;7.08…11.51 lbf.in (0.8…1.3 N.m) screw clamp terminals pozidriv No 2
operating time: 10...20 ms coil de-energisation and NO opening;10...20 ms coil energisation and NO closing
safety reliability level: B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
non overlap distance: 0.02 in (0.5 mm)
mechanical durability: 10 Mcycles
electrical durability: 1.3 Mcycles 6 A AC-3 <= 440 V;1.3 Mcycles 6 A AC-3e <= 440 V
mechanical robustness: Shocks contactor closed;on X axis10 Gn for 11 ms IEC 60068-2-27;Shocks contactor closed;on Y axis15 Gn for 11 ms IEC 60068-2-27;Shocks contactor closed;on Z axis15 Gn for 11 ms IEC 60068-2-27;Shocks contactor opened;on X axis6 Gn for 11 ms IEC 60068-2-27;Shocks contactor opened;on Y axis10 Gn for 11 ms IEC 60068-2-27;Shocks contactor opened;on Z axis10 Gn for 11 ms IEC 60068-2-27;Vibrations contactor closed4 Gn;5...300 Hz IEC 60068-2-6;Vibrations contactor opened2 Gn;5...300 Hz IEC 60068-2-6
Height: 2.28 in (58 mm)
Width: 1.77 in (45 mm)
Depth: 2.24 in (57 mm)
Net Weight: 0.40 lb(US) (0.18 kg)
standards: BS 5424;IEC 60947;NF C 63-110;VDE 0660
Product Certifications: CSA;UL;UKCA
IP degree of protection: IP2x VDE 0106
protective treatment: TC IEC 60068;TC DIN 50016
Ambient Air Temperature for Storage: -58…176 °F (-50…80 °C)
operating altitude: 6561.68 ft (2000 m) without derating
flame retardance: V1 conforming to UL 94;Requirement 2 conforming to NF F 16-101;Requirement 2 conforming to NF F 16-102
Category: 22326-CTR;K-LINE;AC;OPEN;NONREV
Discount Schedule: I12
GTIN: 3389110429381
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.89 in (4.8 cm)
Package 1 Width: 2.44 in (6.2 cm)
Package 1 Length: 2.56 in (6.5 cm)
Package 1 Weight: 6.31 oz (179.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 50
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 20.61 lb(US) (9.348 kg)
Package 3 Height: 30.31 in (77 cm)
Warranty: 18 months
