LC1F115G6 | TeSys F Contactor, 3-Poles (3 NO), 115A, 120V AC Coil, Non-Reversing | Schneider Electric (Square D)

Schneider Electric (Square D) | LC1F115G6

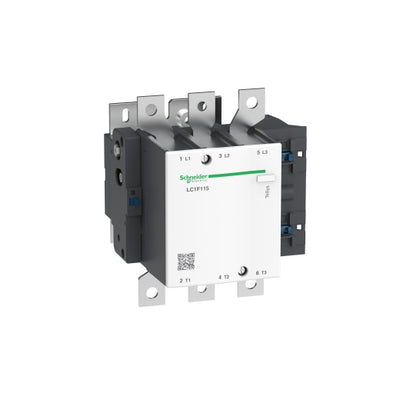

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LC1F115G6

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) LC1F115G6 Documents

Datasheet More Info

Overview

Details for LC1F115G6

LC1F115G6 Contactor: Enhanced Control for Industrial Applications The LC1F115G6 contactor from Schneider Electric (Square D) is a high-quality contactor designed to provide reliable control for demanding industrial applications. This 3-pole, 120V contactor features a compact design, making it ideal for use in space-constrained environments. With its 1N/O auxiliary contact, the LC1F115G6 contactor can be easily integrated into various control systems. Featuring a rugged construction and high-quality components, the LC1F115G6 contactor delivers exceptional durability and extended service life. Its robust design ensures reliable performance in harsh industrial conditions, including vibration, dust, and moisture. The contactor's high-quality construction guarantees safe and efficient operation, making it a dependable choice for controlling electrical loads. Our HVAC supply store offers the best prices and fast shipping for all your industrial supply needs. Trust us to provide the best products and services for your business. Shop now and experience the difference!

Specifications

Range: TeSys
Range of product: TeSys F
Product or component type: Contactor
device short name: LC1F
contactor application: Motor control
Resistive load
Utilisation category: AC-3
AC-4
AC-1
Poles description: 3P
[Ue] rated operational voltage: <= 690 V AC 50/60 Hz
<= 460 V DC
[Uc] control circuit voltage: 120 V AC 60 Hz
[Ie] rated operational current: 200 A (at <40 °C) at <= 440 V AC-1
115 A (at <55 °C) at <= 440 V AC-3
[Uimp] rated impulse withstand voltage: 8 kV
[Ith] conventional free air thermal current: 200 A (at 40 °C)
Rated breaking capacity: 920 A conforming to IEC 60947-4-1
[Icw] rated short-time withstand current: 1100 A 40 °C - 10 s
640 A 40 °C - 30 s
520 A 40 °C - 1 min
400 A 40 °C - 3 min
320 A 40 °C - 10 min
Associated fuse rating: 125 A aM at <= 440 V
200 A gG at <= 440 V
Average impedance: 0.37 mOhm - Ith 200 A 50 Hz
[Ui] rated insulation voltage: 1000 V conforming to IEC 60947-4-1
1500 V conforming to VDE 0110 group C
Power dissipation per pole: 15 W AC-1
5 W AC-3
Overvoltage category: III
power pole contact composition: 3 NO
Motor power kW: 55 kW at 380...400 V AC 50/60 Hz (AC-3)
59 kW at 415 V AC 50/60 Hz (AC-3)
59 kW at 440 V AC 50/60 Hz (AC-3)
75 kW at 500 V AC 50/60 Hz (AC-3)
80 kW at 660...690 V AC 50/60 Hz (AC-3)
30 kW at 220...230 V AC 50/60 Hz (AC-3)
18.5 kW at 400 V AC 50/60 Hz (AC-4)
Control circuit voltage limits: Operational: 0.85...1.1 Uc 50/60 Hz (at 55 °C)
Drop-out: 0.35...0.55 Uc 50/60 Hz (at 55 °C)
Mechanical durability: 10 Mcycles
Inrush power in VA: 660 VA, 60 Hz cos phi 0.3 (at 20 °C)
Hold-in power consumption in VA: 55 VA, 60 Hz cos phi 0.3 (at 20 °C)
Maximum operating rate: 2400 cyc/h 55 °C
Operating time: 23...35 ms closing
5...15 ms opening
Connections - terminals: Power circuit: bar 2 cable(s) - busbar cross section: 20 x 3 mm
Power circuit: lugs-ring terminals 1 cable(s) 95 mm²
Power circuit: connector 1 cable(s) 95 mm²
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end
Power circuit: bolted connection
Tightening torque: Power circuit: 10 N.m
Control circuit: 1.2 N.m
Mounting support: Plate
Heat dissipation: 12…16 W
Standards: IEC 60947-4-1
IEC 60947-1
EN 60947-1
JIS C8201-4-1
EN 60947-4-1
product certifications: ABS
BV
UL
RINA
LROS (Lloyds register of shipping)
RMRoS
CCC
DNV
CB
Compatibility code: LC1F
Control circuit type: AC at 60 Hz
IP degree of protection: IP2X front face with shrouds conforming to IEC 60529
IP2X front face with shrouds conforming to VDE 0106
Protective treatment: TH
Ambient air temperature for operation: -40…60 °C
Ambient air temperature for storage: -60…80 °C
Permissible ambient air temperature around the device: 60…70 °C at Uc
Height: 162 mm
Width: 163.3 mm
Depth: 171 mm
Operating altitude: 3000 m without derating
Net weight: 3.43 kg
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 21 cm
Package 1 Width: 20 cm
Package 1 Length: 24 cm
Package 1 Weight: 4.152 kg
Warranty: 18 months
