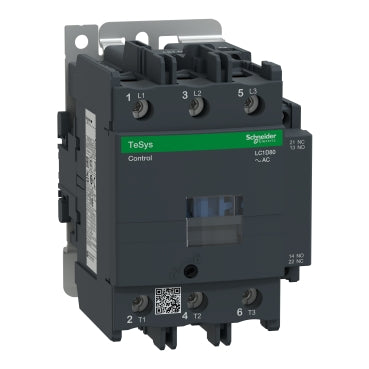

LC1D80G7 | TeSys D Contactor, 3-Poles (3 NO), 80A, 120V AC Coil, Non-Reversing | Schneider Electric (Square D)

Schneider Electric (Square D) LC1D80G7: 3-Pole, 120V, 80A, 7.5HP Contactor The Schneider Electric (Square D) LC1D80G7 contactor is a reliable and high-performance solution for industrial motor control applications. This 3-pole contactor boasts a robust design, ensuring durability in demanding environments. Key Features: - 3-Pole configuration for efficient control of three-phase motors - 120V voltage rating for compatibility with common industrial electrical systems - 80A current capacity to handle demanding loads - 7.5HP horsepower rating for powering motors with up to 7.5 horsepower Benefits: - Enhanced safety: Isolates the motor from the power source when not in use, preventing accidental startups - Improved motor performance: Ensures smooth motor starting and stopping, reducing wear and tear - Increased efficiency: Optimizes motor operation, leading to energy savings - Durable construction: Ensures long service life in harsh industrial settings Applications: The Schneider Electric (Square D) LC1D80G7 contactor is ideal for various applications, including: - Industrial machinery - Conveyors and material handling systems - Pumps and fans - HVAC systems Our HVAC supply store offers the best prices and fast shipping on the Schneider Electric (Square D) LC1D80G7 contactor. Trust us for all your electrical control needs! TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 80A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 25HP at 200 to 208VAC, 30HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase. Contactor is also rated for 7.5HP at 115VAC and 15HP at 240VAC single phase. When used with a 480VAC up to 150A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 175A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 120 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 5.12 inches deep. It weighs 3.51 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

range

TeSys

Range of Product

TeSys D

Product or Component Type

Contactor

device short name

LC1D

contactor application

Motor control;Resistive load

utilisation category

AC-1;AC-4;AC-3;AC-3e

poles description

3P

[Ue] rated operational voltage

Power circuit <= 300 V DC 25...400 Hz;Power circuit <= 690 V AC

[Ie] rated operational current

125 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit;80 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit;80 A 140 °F (60 °C)) <= 440 V AC-3e power circuit

[Uc] control circuit voltage

120 V AC 50/60 Hz

motor power kW

22 kW 220...230 V AC 50/60 Hz AC-3);37 kW 380...400 V AC 50/60 Hz AC-3);45 kW 415...440 V AC 50/60 Hz AC-3);55 kW 500 V AC 50/60 Hz AC-3);45 kW 660...690 V AC 50/60 Hz AC-3);45 kW 1000 V AC 50/60 Hz AC-3);15 kW 400 V AC 50/60 Hz AC-4)

Maximum Horse Power Rating

7.5 hp 120 V at AC 50/60 Hz for 1 phase;15 hp 230/240 V at AC 50/60 Hz for 1 phase;30 hp 200/208 V at AC 50/60 Hz for 3 phase;30 hp 230/240 V at AC 50/60 Hz for 3 phase;60 hp 460/480 V at AC 50/60 Hz for 3 phase;60 hp 575/600 V at AC 50/60 Hz for 3 phase

compatibility code

LC1D

pole contact composition

3 NO

contact compatibility

M11

protective cover

With

[Ith] conventional free air thermal current

10 A 140 °F (60 °C) signalling circuit;125 A 140 °F (60 °C) power circuit

Irms rated making capacity

140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1;1100 A 440 V power circuit IEC 60947

rated breaking capacity

1100 A 440 V power circuit IEC 60947

[Icw] rated short-time withstand current

640 A 104 °F (40 °C) - 10 s power circuit;990 A 104 °F (40 °C) - 1 s power circuit;135 A 104 °F (40 °C) - 10 min power circuit;320 A 104 °F (40 °C) - 1 min power circuit;100 A - 1 s signalling circuit;120 A - 500 ms signalling circuit;140 A - 100 ms signalling circuit

associated fuse rating

10 A gG signalling circuit IEC 60947-5-1;200 A gG <= 690 V type 1 power circuit;160 A gG <= 690 V type 2 power circuit

average impedance

0.8 mOhm - Ith 125 A 50 Hz power circuit

power dissipation per pole

5.1 W AC-3;12.5 W AC-1;5.1 W AC-3e

[Ui] rated insulation voltage

Power circuit 600 V CSA;Power circuit 600 V UL;Power circuit 1000 V IEC 60947-4-1;Signalling circuit 690 V IEC 60947-1;Signalling circuit 600 V CSA;Signalling circuit 600 V UL

overvoltage category

III

pollution degree

3

[Uimp] rated impulse withstand voltage

8 kV IEC 60947

safety reliability level

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

mechanical durability

4 Mcycles

electrical durability

0.8 Mcycles 125 A AC-1 <= 440 V;1.5 Mcycles 80 A AC-3 <= 440 V;1.5 Mcycles 80 A AC-3e <= 440 V

control circuit type

AC 50/60 Hz

coil technology

Without built-in suppressor module

control circuit voltage limits

0.85...1.1 Uc -40…131 °F (-40…55 °C) operational AC 60 Hz;0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz;0.8...1.1 Uc -40…131 °F (-40…55 °C) operational AC 50 Hz;1...1.1 Uc 131…158 °F (55…70 °C) operational AC 50/60 Hz

inrush power in VA

245 VA 60 Hz 0.75 68 °F (20 °C));245 VA 50 Hz 0.75 68 °F (20 °C))

hold-in power consumption in VA

26 VA 60 Hz 0.3 68 °F (20 °C));26 VA 50 Hz 0.3 68 °F (20 °C))

heat dissipation

6…10 W 50/60 Hz

operating time

20...35 ms closing;6...20 ms opening

maximum operating rate

3600 cyc/h 140 °F (60 °C)

connections - terminals

Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) solid without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) solid without cable end;Power circuit connector 1 0.01…0.08 in² (4…50 mm²) flexible without cable end;Power circuit connector 2 0.01…0.04 in² (4…25 mm²) flexible without cable end;Power circuit connector 1 0.01…0.08 in² (4…50 mm²) flexible with cable end;Power circuit connector 2 0.01…0.02 in² (4…16 mm²) flexible with cable end;Power circuit connector 1 0.01…0.08 in² (4…50 mm²) solid without cable end;Power circuit connector 2 0.01…0.04 in² (4…25 mm²) solid without cable end

tightening torque

Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm;Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals Philips No 2;Power circuit 106.21 lbf.in (12 N.m) connector flat Ø 6 to Ø 8 mm;Power circuit 106.21 lbf.in (12 N.m) connector hexagonal 0.16 in (4 mm);Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals pozidriv No 2

auxiliary contact composition

1 NO + 1 NC

auxiliary contacts type

Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1

signalling circuit frequency

25...400 Hz

minimum switching voltage

17 V signalling circuit

minimum switching current

5 mA signalling circuit

insulation resistance

> 10 MOhm signalling circuit

non-overlap time

1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact

Mounting Support

Rail;Plate

standards

CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508

Product Certifications

DNV;GL;UL;CCC;LROS (Lloyds register of shipping);RINA;BV;GOST;CSA

IP degree of protection

IP20 front face IEC 60529

protective treatment

THIEC 60068-2-30

climatic withstand

IACS E10 exposure to damp heat

permissible ambient air temperature around the device

-40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating

operating altitude

0...9842.52 ft (0...3000 m)

fire resistance

1562 °F (850 °C) IEC 60695-2-1

flame retardance

V1 conforming to UL 94
