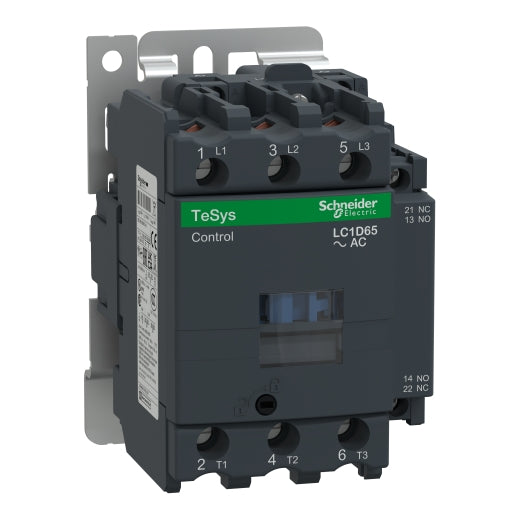

LC1D65G7 | TeSys D Contactor, 3-Poles (3 NO), 65A, 120V AC Coil, Non-Reversing | Schneider Electric (Square D)

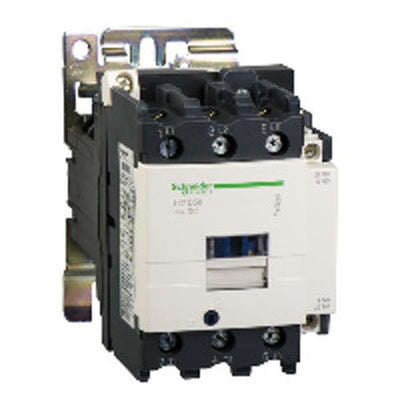

Schneider Electric (Square D) | LC1D65G7

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LC1D65G7

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) LC1D65G7 Documents

Datasheet More Info

Overview

Details for LC1D65G7

Schneider Electric Square D LC1D65G7 Contactor: Industrial Strength and Reliability The Schneider Electric (Square D) LC1D65G7 contactor is a highly reliable and efficient solution for industrial automation and control applications. Engineered for robust performance, this contactor boasts a voltage rating of 120V and a current rating of 65 amps, making it ideal for demanding electrical systems. Featuring a compact and robust design, the LC1D65G7 contactor is constructed with durable materials to withstand the harsh conditions in industrial environments. It features silver alloy contacts for excellent conductivity and long-lasting performance, ensuring reliable operation over extended periods. This contactor is easy to install and wire, reducing downtime and maintenance costs. Applications of the LC1D65G7 contactor include controlling electric motors, lighting systems, and other industrial equipment. It is commonly used in manufacturing, automation, HVAC, and power distribution systems. By combining advanced technology and precision engineering, the LC1D65G7 contactor offers dependable performance, durability, and energy efficiency. Our HVAC supply store offers competitive prices and fast shipping on a wide range of industrial supplies, including the Schneider Electric Square D LC1D65G7 contactor. Our commitment to quality and customer satisfaction makes us the preferred choice for industrial engineers and maintenance professionals. Contact us today to learn more about our comprehensive product line and exceptional customer service.

Specifications

Range: TeSys
Range of product: TeSys Deca
Product or component type: Contactor
device short name: LC1D
contactor application: Motor control
Resistive load
Utilisation category: AC-1
AC-2
AC-4
AC-3
Poles description: 3P
[Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz
[Ie] rated operational current: 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
[Uc] control circuit voltage: 120 V AC 50/60 Hz
Motor power kW: 30 kW at 440 V AC 50/60 Hz (AC-3)
11 kW at 400 V AC 50/60 Hz (AC-4)
30 kW at 380...400 V AC 50/60 Hz (AC-3)
30 kW at 415 V AC 50/60 Hz (AC-3)
37 kW at 1000 V AC 50/60 Hz (AC-3)
37 kW at 500 V AC 50/60 Hz (AC-3)
37 kW at 660...690 V AC 50/60 Hz (AC-3)
18.5 kW at 220...230 V AC 50/60 Hz (AC-3)
Motor power hp: 10 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to CSA
10 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to UL
20 hp at 200/208 V AC 60 Hz for 3 phases motors conforming to CSA
20 hp at 200/208 V AC 60 Hz for 3 phases motors conforming to UL
20 hp at 230/240 V AC 60 Hz for 3 phases motors conforming to CSA
20 hp at 230/240 V AC 60 Hz for 3 phases motors conforming to UL
5 hp at 115 V AC 60 Hz for 1 phase motors conforming to CSA
5 hp at 115 V AC 60 Hz for 1 phase motors conforming to UL
50 hp at 460/480 V AC 60 Hz for 3 phases motors conforming to CSA
50 hp at 460/480 V AC 60 Hz for 3 phases motors conforming to UL
50 hp at 575/600 V AC 60 Hz for 3 phases motors conforming to CSA
50 hp at 575/600 V AC 60 Hz for 3 phases motors conforming to UL
Compatibility code: LC1D
Pole contact composition: 3 NO
Protective cover: With
[Ith] conventional free air thermal current: 10 A (at 60 °C) for control circuit
80 A (at 60 °C) for power circuit
Irms rated making capacity: 140 A AC for control circuit conforming to IEC 60947-5-1
1000 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity: 1000 A at 440 V for power circuit conforming to IEC 60947
Associated fuse rating: 10 A gG for control circuit conforming to IEC 60947-5-1
125 A gG at <= 690 V coordination type 1 for power circuit
125 A gG at <= 690 V coordination type 2 for power circuit
Average impedance: 1 mOhm - Ith 80 A 50 Hz for power circuit
Power dissipation per pole: 6.4 W AC-1
[Ui] rated insulation voltage: Control circuit: 600 V CSA certified
Control circuit: 600 V UL certified
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Control circuit: 690 V conforming to IEC 60947-1
Power circuit: 690 V conforming to IEC 60947-1
Overvoltage category: III
[Uimp] rated impulse withstand voltage: 8 kV conforming to IEC 60947
Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Mechanical durability: 6000000 cycles
Control circuit type: AC at 50/60 Hz
Coil technology: Without built-in bidirectional peak limiting diode suppressor
Control circuit voltage limits: 0.3...0.6 Uc (60 °C):drop-out AC 50/60 Hz
0.8...1.1 Uc (60 °C):operational AC 50 Hz
0.85...1.1 Uc (60 °C):operational AC 60 Hz
Inrush power in VA: 140 VA cos phi 0.75 (at 20 °C)
160 VA cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA: 13 VA 50 Hz cos phi 0.3 (at 20 °C)
15 VA 60 Hz cos phi 0.3 (at 20 °C)
Heat dissipation: 4…5 W at 50/60 Hz for control circuit
Operating time: 12...26 ms closing
4...19 ms opening
Maximum operating rate: 3600 cyc/h 60 °C
Connections - terminals: Control circuit: screw clamp terminal 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminal 2 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminal 1 1…2.5 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminal 2 1…2.5 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminal 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminal 2 1…4 mm² - cable stiffness: flexible with cable end
Power circuit: connector 1 2.5…35 mm² - cable stiffness: solid with cable end
Power circuit: connector 2 2.5…35 mm² - cable stiffness: solid with cable end
Power circuit: connector 1 2.5…35 mm² - cable stiffness: flexible without cable end
Power circuit: connector 2 2.5…25 mm² - cable stiffness: flexible without cable end
Power circuit: connector 1 2.5…35 mm² - cable stiffness: flexible with cable end
Power circuit: connector 2 2.5…35 mm² - cable stiffness: flexible with cable end
Tightening torque: Control circuit: 1.2 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm
Control circuit: 1.2 N.m - on screw clamp terminal - with screwdriver Philips No 2
Power circuit: 5 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm
Power circuit: 5 N.m - on screw clamp terminal - with screwdriver flat Ø 8 mm
auxiliary contact composition: 1 NO + 1 NC
Auxiliary contacts type: type mirror contact 1 NC conforming to IEC 60947-4-1
type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Terminals description ISO n°1: (A1-A2)CO
(13-14)NO
(21-22)NC
Minimum switching voltage: 17 V for control circuit
Minimum switching current: 5 mA for control circuit
Insulation resistance: > 10 MOhm for control circuit
Non-overlap time: 1.5 ms on de-energisation between NC and NO contacts
1.5 ms on energisation between NC and NO contacts
Mounting support: Rail
Plate
Standards: EN 60947-5-1
CSA C22.2 No 14
EN 60947-4-1
UL 508
IEC 60947-4-1
IEC 60947-5-1
product certifications: CCC
UL
BV
CSA
LROS (pending)
GOST
RINA
GL
DNV
IP degree of protection: IP2X conforming to IEC 60529
IP2X conforming to VDE 0106
Climatic withstand: conforming to IACS E10 exposure to damp heat
Permissible ambient air temperature around the device: -5…60 °C
-40…70 °C at Uc
Operating altitude: 3000 m without derating
Fire resistance: 850 °C conforming to IEC 60695-2-1
Flame retardance: V1 conforming to UL 94
Mechanical robustness: Shocks contactor opened (10 Gn for 11 ms)
Shocks contactor closed (15 Gn for 11 ms)
Vibrations contactor opened (2 Gn, 5...300 Hz)
Vibrations contactor closed (4 Gn, 5...300 Hz)
Height: 127 mm
Width: 75 mm
Depth: 119 mm
Net weight: 1.4 kg
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 14.000 cm
Package 1 Width: 13.500 cm
Package 1 Length: 9.500 cm
Package 1 Weight: 1.439 kg
Unit Type of Package 2: S02
Number of Units in Package 2: 5
Package 2 Height: 15.000 cm
Package 2 Width: 30.000 cm
Package 2 Length: 40.000 cm
Package 2 Weight: 7.478 kg
Unit Type of Package 3: P06
Number of Units in Package 3: 80
Package 3 Height: 75.000 cm
Package 3 Width: 60.000 cm
Package 3 Length: 80.000 cm
Package 3 Weight: 131.780 kg
Warranty: 18 months
