LC1D50T6 | TeSys D Contactor, 3-Poles (3 NO), 50A, 480V AC Coil, Non-Reversing | Schneider Electric (Square D)

Schneider Electric (Square D) | LC1D50T6

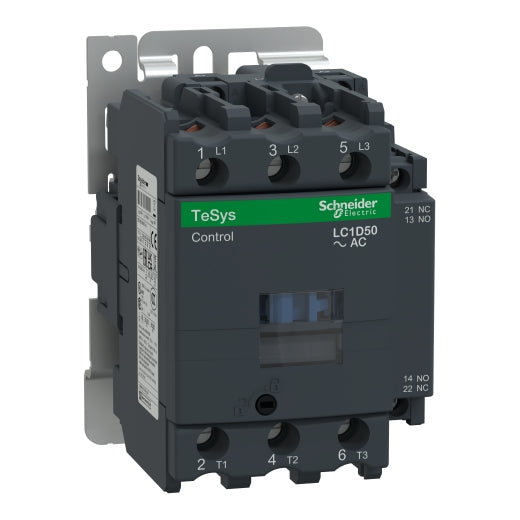

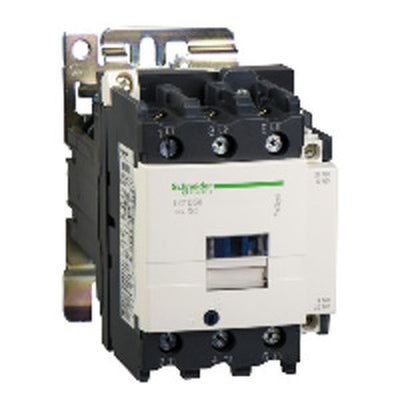

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LC1D50T6

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) LC1D50T6 Documents

Datasheet More Info

Overview

Details for LC1D50T6

480V 50A 3P Open Starter: LC1D50T6 by Schneider Electric (Square D) Schneider Electric's (Square D) LC1D50T6 open starter is a heavy-duty contactor designed for demanding industrial applications. Rated at 480V and 50A, this 3-phase contactor features a robust design that ensures reliable operation in harsh environments. The open design allows for easy inspection and maintenance, while the compact size makes it suitable for applications where space is limited. Key features include: - 480V operating voltage - 50A current rating - 3-phase operation - Open design for easy inspection and maintenance - Compact size for space-saving installation - Durable construction for long-lasting performance The LC1D50T6 is ideal for controlling motors in a wide range of industrial applications, including: - Conveyors - Pumps - Fans - Compressors - Machine tools - And many more Our HVAC supply store offers the best prices and fast shipping on the LC1D50T6 open starter. Order yours today and experience the Schneider Electric difference!

Specifications

Range: TeSys
Range of product: TeSys Deca
Product or component type: Contactor
device short name: LC1D
contactor application: Motor control
Resistive load
Utilisation category: AC-1
AC-2
AC-4
AC-3
AC-3e
Poles description: 3P
[Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz
[Ie] rated operational current: 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
50 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
50 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
[Uc] control circuit voltage: 480 V AC 60 Hz
Motor power kW: 22 kW at 380...400 V AC 50/60 Hz
25 kW at 415 V AC 50/60 Hz
30 kW at 440 V AC 50/60 Hz
30 kW at 500 V AC 50/60 Hz
33 kW at 660...690 V AC 50/60 Hz
15 kW at 220...230 V AC 50/60 Hz
Motor power hp: 3 hp at 115 V AC 60 Hz for 1 phase motors conforming to CSA
3 hp at 115 V AC 60 Hz for 1 phase motors conforming to UL
15 hp at 200/208 V AC 60 Hz for 3 phases motors conforming to CSA
15 hp at 200/208 V AC 60 Hz for 3 phases motors conforming to UL
15 hp at 230/240 V AC 60 Hz for 3 phases motors conforming to CSA
15 hp at 230/240 V AC 60 Hz for 3 phases motors conforming to UL
40 hp at 460/480 V AC 60 Hz for 3 phases motors conforming to CSA
40 hp at 460/480 V AC 60 Hz for 3 phases motors conforming to UL
40 hp at 575/600 V AC 60 Hz for 3 phases motors conforming to CSA
40 hp at 575/600 V AC 60 Hz for 3 phases motors conforming to UL
7.5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to CSA
7.5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to UL
Compatibility code: LC1D
Pole contact composition: 3 NO
Protective cover: With
[Ith] conventional free air thermal current: 10 A (at 60 °C) for control circuit
80 A (at 60 °C) for power circuit
Irms rated making capacity: 140 A AC for control circuit conforming to IEC 60947-5-1
900 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity: 900 A at 440 V for power circuit conforming to IEC 60947
Associated fuse rating: 10 A gG for control circuit conforming to IEC 60947-5-1
100 A gG at <= 690 V coordination type 1 for power circuit
100 A gG at <= 690 V coordination type 2 for power circuit
Average impedance: 1.5 mOhm - Ith 80 A 50 Hz for power circuit
Power dissipation per pole: 3.7 W AC-3
9.6 W AC-1
3.7 W AC-3e
[Ui] rated insulation voltage: Control circuit: 600 V CSA certified
Control circuit: 600 V UL certified
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Control circuit: 690 V conforming to IEC 60947-1
Power circuit: 690 V conforming to IEC 60947-1
Overvoltage category: III
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947
Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Mechanical durability: 6000000 cycles
Control circuit type: AC at 60 Hz
Coil technology: Without built-in bidirectional peak limiting diode suppressor
Control circuit voltage limits: 0.85...1.1 Uc (60 °C):operational AC 60 Hz
0.3...0.6 Uc (60 °C):drop-out AC 60 Hz
Inrush power in VA: 140 VA cos phi 0.75 (at 20 °C)
160 VA cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA: 13 VA 50 Hz cos phi 0.3 (at 20 °C)
15 VA 60 Hz cos phi 0.3 (at 20 °C)
Heat dissipation: 4…5 W at 50/60 Hz for control circuit
Operating time: 12...26 ms closing
4...19 ms opening
Maximum operating rate: 3600 cyc/h 60 °C
Connections - terminals: Control circuit: screw clamp terminal 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminal 2 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminal 1 1…2.5 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminal 2 1…2.5 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminal 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminal 2 1…4 mm² - cable stiffness: flexible with cable end
Power circuit: connector 1 2.5…35 mm² - cable stiffness: solid with cable end
Power circuit: connector 2 2.5…35 mm² - cable stiffness: solid with cable end
Power circuit: connector 1 2.5…35 mm² - cable stiffness: flexible without cable end
Power circuit: connector 2 2.5…25 mm² - cable stiffness: flexible without cable end
Power circuit: connector 1 2.5…35 mm² - cable stiffness: flexible with cable end
Power circuit: connector 2 2.5…35 mm² - cable stiffness: flexible with cable end
Tightening torque: Control circuit: 1.2 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm
Control circuit: 1.2 N.m - on screw clamp terminal - with screwdriver Philips No 2
Power circuit: 5 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm
Power circuit: 5 N.m - on screw clamp terminal - with screwdriver flat Ø 8 mm
Control circuit: 1.2 N.m - on screw clamp terminal - with screwdriver pozidriv No 2
auxiliary contact composition: 1 NO + 1 NC
Auxiliary contacts type: type mirror contact 1 NC conforming to IEC 60947-4-1
type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Minimum switching voltage: 17 V for control circuit
Minimum switching current: 5 mA for control circuit
Insulation resistance: > 10 MOhm for control circuit
Non-overlap time: 1.5 ms on de-energisation between NC and NO contacts
1.5 ms on energisation between NC and NO contacts
Mounting support: Rail
Plate
Standards: EN 60947-4-1
CSA C22.2 No 14
IEC 60947-5-1
EN 60947-5-1
UL 508
IEC 60947-4-1
product certifications: RINA
CCC
CSA
GL
GOST
BV
DNV
UL
LROS (pending)
UKCA
IP degree of protection: IP2X conforming to IEC 60529
IP2X conforming to VDE 0106
Climatic withstand: conforming to IACS E10 exposure to damp heat
Permissible ambient air temperature around the device: -5…60 °C
-40…70 °C at Uc
Operating altitude: 3000 m without derating
Fire resistance: 850 °C conforming to IEC 60695-2-1
Flame retardance: V1 conforming to UL 94
Mechanical robustness: Shocks contactor opened (10 Gn for 11 ms)
Shocks contactor closed (15 Gn for 11 ms)
Vibrations contactor opened (2 Gn, 5...300 Hz)
Vibrations contactor closed (4 Gn, 5...300 Hz)
Height: 122 mm
Width: 55 mm
Depth: 119 mm
Net weight: 1.4 kg
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 13.000 cm
Package 1 Width: 9.000 cm
Package 1 Length: 13.000 cm
Package 1 Weight: 1.400 kg
Unit Type of Package 2: S03
Number of Units in Package 2: 18
Package 2 Height: 30.000 cm
Package 2 Width: 30.000 cm
Package 2 Length: 40.000 cm
Package 2 Weight: 25.620 kg
Unit Type of Package 3: P06
Number of Units in Package 3: 144
Package 3 Height: 75.000 cm
Package 3 Width: 80.000 cm
Package 3 Length: 60.000 cm
Package 3 Weight: 212.960 kg
Warranty: 18 months
