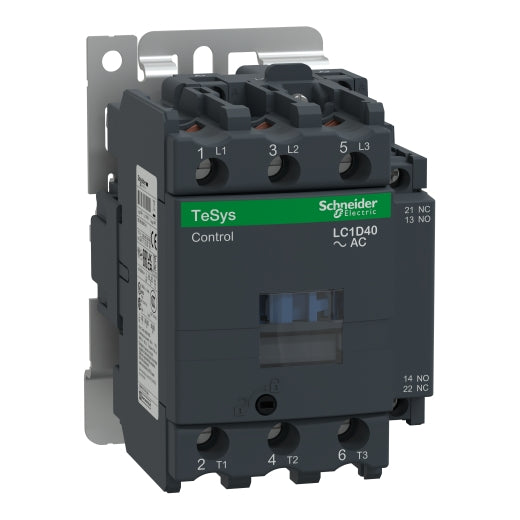

LC1D40G7 | TeSys D Contactor, 3-Poles (3 NO), 40A, 120V AC Coil, Non-Reversing | Schneider Electric (Square D)

Schneider Electric (Square D) LC1D40G7 3-Pole Contactor: The LC1D40G7 is a highly reliable and efficient 3-pole contactor designed to meet the demands of industrial applications. Operating at 120V, it features a robust construction to ensure durability in challenging environments. With a 40A current rating, the LC1D40G7 can handle significant electrical loads. The auxiliary contact provides enhanced functionality, allowing for additional control and monitoring capabilities. Its compact design makes it suitable for applications where space is a constraint. Engineers and maintenance professionals trust Schneider Electric (Square D) for their commitment to quality, reliability, and innovation. Our HVAC supply store offers competitive pricing and fast shipping for the LC1D40G7 contactor. Choose Our HVAC supply store for all your industrial electrical solutions!

Range

TeSys

Range of product

TeSys Deca

Product or component type

Contactor

device short name

LC1D

contactor application

Resistive load
Motor control

Utilisation category

AC-3
AC-4
AC-1
AC-2

Poles description

3P

[Ue] rated operational voltage

Power circuit: <= 690 V AC 25...400 Hz

[Ie] rated operational current

60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit

[Uc] control circuit voltage

120 V AC 50/60 Hz

Motor power kW

18.5 kW at 380...400 V AC 50/60 Hz (AC-3)
22 kW at 1000 V AC 50/60 Hz (AC-3)
22 kW at 415 V AC 50/60 Hz (AC-3)
22 kW at 440 V AC 50/60 Hz (AC-3)
22 kW at 500 V AC 50/60 Hz (AC-3)
30 kW at 660...690 V AC 50/60 Hz (AC-3)
11 kW at 220...230 V AC 50/60 Hz (AC-3)
9 kW at 400 V AC 50/60 Hz (AC-4)

Motor power hp

10 hp at 200/208 V AC 60 Hz for 3 phases motors conforming to CSA
10 hp at 200/208 V AC 60 Hz for 3 phases motors conforming to UL
10 hp at 230/240 V AC 60 Hz for 3 phases motors conforming to CSA
10 hp at 230/240 V AC 60 Hz for 3 phases motors conforming to UL
3 hp at 115 V AC 60 Hz for 1 phase motors conforming to CSA
3 hp at 115 V AC 60 Hz for 1 phase motors conforming to UL
30 hp at 460/480 V AC 60 Hz for 3 phases motors conforming to CSA
30 hp at 460/480 V AC 60 Hz for 3 phases motors conforming to UL
30 hp at 575/600 V AC 60 Hz for 3 phases motors conforming to CSA
30 hp at 575/600 V AC 60 Hz for 3 phases motors conforming to UL
5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to CSA
5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to UL

Compatibility code

LC1D

Pole contact composition

3 NO

Protective cover

With

[Ith] conventional free air thermal current

10 A (at 60 °C) for control circuit
60 A (at 60 °C) for power circuit

Irms rated making capacity

140 A AC for control circuit conforming to IEC 60947-5-1
800 A at 440 V for power circuit conforming to IEC 60947

Rated breaking capacity

800 A at 440 V for power circuit conforming to IEC 60947

Associated fuse rating

10 A gG for control circuit conforming to IEC 60947-5-1
80 A gG at <= 690 V coordination type 1 for power circuit
80 A gG at <= 690 V coordination type 2 for power circuit

Average impedance

1.5 mOhm - Ith 60 A 50 Hz for power circuit

Power dissipation per pole

5.4 W AC-1
2.4 W AC-3

[Ui] rated insulation voltage

Control circuit: 600 V CSA certified
Control circuit: 600 V UL certified
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Control circuit: 690 V conforming to IEC 60947-1
Power circuit: 690 V conforming to IEC 60947-1

Overvoltage category

III

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947

Safety reliability level

B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Mechanical durability

6000000 cycles

Control circuit type

AC at 50/60 Hz

Coil technology

Without built-in bidirectional peak limiting diode suppressor

Control circuit voltage limits

0.3...0.6 Uc (60 °C):drop-out AC 50/60 Hz
0.8...1.1 Uc (60 °C):operational AC 50 Hz
0.85...1.1 Uc (60 °C):operational AC 60 Hz

Inrush power in VA

140 VA cos phi 0.75 (at 20 °C)
160 VA cos phi 0.75 (at 20 °C)

Hold-in power consumption in VA

13 VA 50 Hz cos phi 0.3 (at 20 °C)
15 VA 60 Hz cos phi 0.3 (at 20 °C)

Heat dissipation

4…5 W at 50/60 Hz for control circuit

Operating time

12...26 ms closing
4...19 ms opening

Maximum operating rate

3600 cyc/h 60 °C

Connections - terminals

Control circuit: screw clamp terminal 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminal 2 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminal 1 1…2.5 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminal 2 1…2.5 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminal 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminal 2 1…4 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminal 1 2.5…35 mm² - cable stiffness: solid with cable end
Power circuit: screw clamp terminal 2 2.5…35 mm² - cable stiffness: solid with cable end
Power circuit: screw clamp terminal 1 2.5…35 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminal 2 2.5…25 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminal 1 2.5…35 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminal 2 2.5…35 mm² - cable stiffness: flexible with cable end

Tightening torque

Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm
Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver Philips No 2
Power circuit: 5 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm
Power circuit: 5 N.m - on screw clamp terminal - with screwdriver flat Ø 8 mm

auxiliary contact composition

1 NO + 1 NC

Auxiliary contacts type

type mirror contact 1 NC conforming to IEC 60947-4-1
type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1

Minimum switching voltage

17 V for control circuit

Minimum switching current

5 mA for control circuit

Insulation resistance

> 10 MOhm for control circuit

Non-overlap time

1.5 ms on de-energisation between NC and NO contacts
1.5 ms on energisation between NC and NO contacts

Mounting support

Rail
Plate

Standards

UL 508
IEC 60947-4-1
CSA C22.2 No 14
EN 60947-4-1
IEC 60947-5-1
EN 60947-5-1

product certifications

UL
GL
RINA
LROS (Lloyds register of shipping)
CSA
BV
CCC
GOST
DNV

IP degree of protection

IP2X conforming to IEC 60529
IP2X conforming to VDE 0106

Climatic withstand

conforming to IACS E10 exposure to damp heat

Permissible ambient air temperature around the device

-5…60 °C
-40…70 °C at Uc

Operating altitude

3000 m without derating

Fire resistance

850 °C conforming to IEC 60695-2-1

Flame retardance

V1 conforming to UL 94

Mechanical robustness

Shocks contactor opened (10 Gn for 11 ms)
Shocks contactor closed (15 Gn for 11 ms)
Vibrations contactor opened (2 Gn, 5...300 Hz)
Vibrations contactor closed (4 Gn, 5...300 Hz)

Height

127 mm

Width

75 mm

Depth

119 mm

Net weight

1.4 kg

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

9.300 cm

Package 1 Width

13.500 cm

Package 1 Length

14.000 cm

Package 1 Weight

1.445 kg

Unit Type of Package 2

S02

Number of Units in Package 2

5

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

7.514 kg

Unit Type of Package 3

P06

Number of Units in Package 3

80

Package 3 Height

75.000 cm

Package 3 Width

60.000 cm

Package 3 Length

80.000 cm

Package 3 Weight

128.724 kg

Warranty

18 mont
