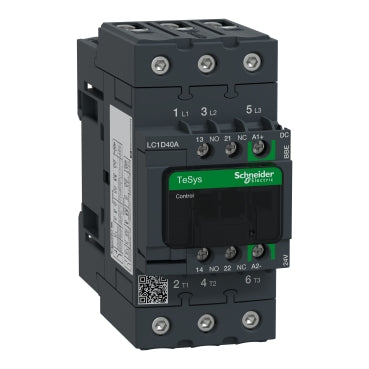

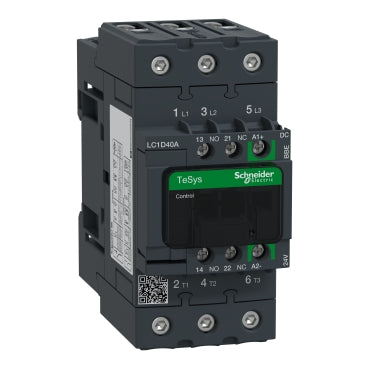

LC1D40ABBE | TESYS D CONTACTOR-3P-AC3- <= 440V 40A | Schneider Electric (Square D)

Schneider Electric (Square D) LC1D40ABBE Contactor: Superior Industrial ControlThe Schneider Electric (Square D) LC1D40ABBE contactor is a robust and reliable electro-mechanical device designed for demanding industrial applications. It features a 24VDC coil voltage and 3 poles with a current rating of 40A, providing versatile control for various electrical circuits.Built to withstand challenging industrial environments, the contactor boasts a robust construction. Its compact design allows for easy installation and space-saving in control panels. The LC1D40ABBE contactor is equipped with finger-proof terminals for enhanced safety during installation and maintenance.This contactor is ideal for controlling motors, lighting systems, heating elements, and other high-power loads in a wide range of industrial settings, including manufacturing, machinery, and automation. Its reliable operation and durability make it a trusted choice for engineers and maintenance professionals seeking dependable control solutions. Our HVAC supply store offers the Schneider Electric (Square D) LC1D40ABBE contactor at competitive prices with fast shipping. Contact our team for expert advice and tailored solutions for your industrial control needs. TeSys D Green contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 40A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 10HP at 200 to 208VAC, 10HP at 240VAC, 30HP at 480VAC and 30HP at 600VAC three phase. Contactor is also rated for 3HP at 115VAC and 5HP at 240VAC single phase. When used with a 480VAC up to 110A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 90A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Equipped with an electronic 24V DC coil, low consumption, for a direct control by a PLC output 24V DC / 500mA. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 2.19 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

range

TeSys;TeSys Deca

Range of Product

TeSys D;TeSys Deca

Product or Component Type

Contactor

device short name

LC1D

contactor application

Motor control;Resistive load

utilisation category

AC-1;AC-3;AC-3e

poles description

3P

[Ue] rated operational voltage

Power circuit <= 690 V AC 25...400 Hz

[Ie] rated operational current

60 A 140 °F (60 °C)) <= 440 V AC-1 power circuit;40 A 140 °F (60 °C)) <= 440 V AC-3 power circuit;40 A 140 °F (60 °C)) <= 440 V AC-3e power circuit

[Uc] control circuit voltage

24 V DC

motor power kW

11 kW 220...230 V AC 50 Hz AC-3);18.5 kW 380...400 V AC 50 Hz AC-3);22 kW 415 V AC 50 Hz AC-3);22 kW 440 V AC 50 Hz AC-3);22 kW 500 V AC 50 Hz AC-3);30 kW 660...690 V AC 50 Hz AC-3);11 kW 220...230 V AC 50 Hz AC-3e);18.5 kW 380...400 V AC 50 Hz AC-3e);22 kW 415 V AC 50 Hz AC-3e);22 kW 440 V AC 50 Hz AC-3e);22 kW 500 V AC 50 Hz AC-3e);30 kW 660...690 V AC 50 Hz AC-3e)

Maximum Horse Power Rating

3 hp 115 V at AC 60 Hz for 1 phase;5 hp 230/240 V at AC 60 Hz for 1 phase;10 hp 200/208 V at AC 60 Hz for 3 phase;10 hp 230/240 V at AC 60 Hz for 3 phase;30 hp 460/480 V at AC 60 Hz for 3 phase;30 hp 575/600 V at AC 60 Hz for 3 phase

compatibility code

LC1D

pole contact composition

3 NO

protective cover

With

[Ith] conventional free air thermal current

60 A 140 °F (60 °C) power circuit;10 A 140 °F (60 °C) signalling circuit

Irms rated making capacity

800 A 440 V power circuit IEC 60947;140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1

rated breaking capacity

800 A 440 V power circuit IEC 60947

[Icw] rated short-time withstand current

72 A 104 °F (40 °C) - 10 min power circuit;165 A 104 °F (40 °C) - 1 min power circuit;320 A 104 °F (40 °C) - 10 s power circuit;720 A 104 °F (40 °C) - 1 s power circuit;100 A - 1 s signalling circuit;120 A - 500 ms signalling circuit;140 A - 100 ms signalling circuit

associated fuse rating

80 A gG <= 690 V type 1 power circuit;80 A gG <= 690 V type 2 power circuit;10 A gG signalling circuit IEC 60947-5-1

average impedance

1.5 mOhm - Ith 60 A 50 Hz power circuit

power dissipation per pole

5.4 W AC-1;2.4 W AC-3;2.4 W AC-3e

[Ui] rated insulation voltage

Power circuit 690 V IEC 60947-4-1;Signalling circuit 690 V IEC 60947-1

overvoltage category

III

pollution degree

3

[Uimp] rated impulse withstand voltage

6 kV IEC 60947

safety reliability level

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

mechanical durability

6 Mcycles

electrical durability

2 Mcycles 35 A AC-3 <= 440 V;0.7 Mcycles 60 A AC-1 <= 440 V;2 Mcycles 35 A AC-3e <= 440 V

control circuit type

DC DC low consumption

coil technology

Built-in bidirectional peak limiting

control circuit voltage limits

<= 0.1 Uc -40…158 °F (-40…70 °C) drop-out DC;0.8...1.2 Uc -40…140 °F (-40…60 °C) operational DC;1...1.2 Uc 140…158 °F (60…70 °C) operational DC

inrush power in W

11 W 68 °F (20 °C))

hold-in power consumption in W

0.5 W 68 °F (20 °C)

heat dissipation

0.5 W

operating time

55...65 ms closing;20...120 ms opening >= 17221);20...80 ms opening >= 18011)

maximum operating rate

3600 cyc/h 140 °F (60 °C)

connections - terminals

Power circuit EverLink BTR screw connectors 1 0.00…0.05 in² (1…35 mm²) solid;Power circuit EverLink BTR screw connectors 2 0.00…0.04 in² (1…25 mm²) solid;Power circuit EverLink BTR screw connectors 1 0.00…0.05 in² (1…35 mm²) flexible without cable end;Power circuit EverLink BTR screw connectors 2 0.00…0.04 in² (1…25 mm²) flexible without cable end;Power circuit EverLink BTR screw connectors 1 0.00…0.05 in² (1…35 mm²) flexible with cable end;Power circuit EverLink BTR screw connectors 2 0.00…0.04 in² (1…25 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) solid;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) solid;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible with cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) flexible without cable end

tightening torque

Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm;Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2;Power circuit 70.81 lbf.in (8 N.m) EverLink BTR screw connectors 0.04…0.05 in² (25…35 mm²) hexagonal 0.16 in (4 mm);Power circuit 44.25 lbf.in (5 N.m) EverLink BTR screw connectors 0.00…0.04 in² (1…25 mm²) hexagonal 0.16 in (4 mm);Power circuit 44.25 lbf.in (5 N.m) pozidriv No 2;Control circuit 15.05 lbf.in (1.7 N.m) pozidriv No 2

auxiliary contact composition

1 NO + 1 NC

auxiliary contacts type

Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1

signalling circuit frequency

25...400 Hz

minimum switching voltage

17 V signalling circuit

minimum switching current

5 mA signalling circuit

insulation resistance

> 10 MOhm signalling circuit

non-overlap time

1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact

Mounting Support

Plate;Rail

standards

EN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;CSA C22.2 No 60947-4-1;IEC 60335-1

Product Certifications

CCC;CSA;EAC;UL;KC;DNV-GL;LROS (Lloyds register of shipping);UKCA

IP degree of protection

IP20 front face IEC 60529

climatic withstand

IACS E10 exposure to damp heat;IEC 60947-1 Annex Q category D exposure to damp heat

permissible ambient air temperature around the device

-40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating

operating altitude

0...9842.52 ft (0...3000 m)

fire resistance

1562 °F (850 °C) IEC 60695-2-1

flame retardance

V1 conforming
