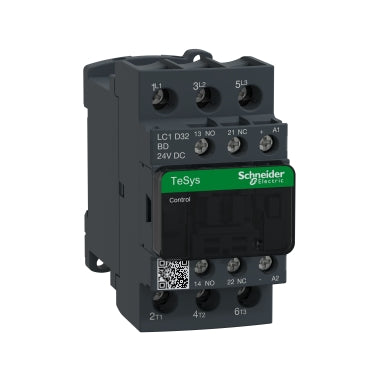

LC1D32BD | TeSys D Contactor, 3-Poles (3 NO), 32A, 24V DC Coil, Non-Reversing | Schneider Electric (Square D)

Schneider Electric (Square D) | LC1D32BD

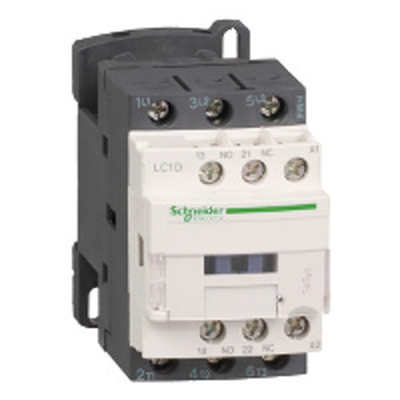

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LC1D32BD

Jump to: Overview Specifications Reviews

Overview

Details for LC1D32BD

LC1D32BD 24VDC 3P 3NO Contactor by Schneider Electric (Square D) The LC1D32BD contactor from Schneider Electric (Square D) is a compact and reliable device designed for switching electrical loads in industrial applications. This 24VDC contactor features 3 main poles and 3 normally open (3NO) contacts, making it suitable for controlling three-phase loads. With its compact design and high-quality construction, the LC1D32BD offers durability and long-lasting performance. It operates at a voltage of 24VDC and has a rated current of 32A, making it ideal for switching loads up to this amperage. The contactor's coil terminals are easily accessible, allowing for convenient wiring. Key Features: â€¢ 3 main poles and 3 normally open (3NO) contacts â€¢ 24VDC operating voltage â€¢ Rated current of 32A â€¢ Compact design for easy installation â€¢ High-quality construction for durability The LC1D32BD contactor is commonly used in industrial automation systems, motor control applications, and various electrical distribution systems. Its reliable performance and ease of use make it a preferred choice for industrial engineers and maintenance professionals. Shop now at our HVAC supply store for the best prices and fast shipping on the LC1D32BD contactor and other industrial products. We offer a wide selection of electrical components, tools, and supplies to meet your business needs. TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 32A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 7.5HP at 200 to 208VAC, 10HP at 240VAC, 20HP at 480VAC and 30HP at 600VAC three phase. Contactor is also rated for 2HP at 115VAC and 5HP at 240VAC single phase. When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 80A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.98 inches deep. It weighs 1.18 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Specifications

Range of Product: TeSys Deca
Product or Component Type: Contactor
device short name: LC1D
contactor application: Resistive load;Motor control
utilisation category: AC-3;AC-1;AC-4;AC-3e
poles description: 3P
[Ue] rated operational voltage: Power circuit <= 690 V AC 25...400 Hz;Power circuit <= 300 V DC
[Ie] rated operational current: 32 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit;50 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit;32 A 140 °F (60 °C)) <= 440 V AC AC-3e power circuit
[Uc] control circuit voltage: 24 V DC
motor power kW: 7.5 kW 220...230 V AC 50/60 Hz AC-3);15 kW 380...400 V AC 50/60 Hz AC-3);15 kW 415...440 V AC 50/60 Hz AC-3);18.5 kW 500 V AC 50/60 Hz AC-3);18.5 kW 660...690 V AC 50/60 Hz AC-3);7.5 kW 400 V AC 50/60 Hz AC-4);7.5 kW 220...230 V AC 50/60 Hz AC-3e);15 kW 380...400 V AC 50/60 Hz AC-3e);15 kW 415...440 V AC 50/60 Hz AC-3e);18.5 kW 500 V AC 50/60 Hz AC-3e);18.5 kW 660...690 V AC 50/60 Hz AC-3e)
Maximum Horse Power Rating: 2 hp 115 V at AC 50/60 Hz for 1 phase;5 hp 230/240 V at AC 50/60 Hz for 1 phase;7.5 hp 200/208 V at AC 50/60 Hz for 3 phase;10 hp 230/240 V at AC 50/60 Hz for 3 phase;20 hp 460/480 V at AC 50/60 Hz for 3 phase;30 hp 575/600 V at AC 50/60 Hz for 3 phase
compatibility code: LC1D
pole contact composition: 3 NO
contact compatibility: M4
protective cover: With
[Ith] conventional free air thermal current: 10 A 140 °F (60 °C) signalling circuit;50 A 140 °F (60 °C) power circuit
Irms rated making capacity: 140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1;550 A 440 V power circuit IEC 60947
rated breaking capacity: 550 A 440 V power circuit IEC 60947
[Icw] rated short-time withstand current: 260 A 104 °F (40 °C) - 10 s power circuit;430 A 104 °F (40 °C) - 1 s power circuit;60 A 104 °F (40 °C) - 10 min power circuit;138 A 104 °F (40 °C) - 1 min power circuit;100 A - 1 s signalling circuit;120 A - 500 ms signalling circuit;140 A - 100 ms signalling circuit
associated fuse rating: 10 A gG signalling circuit IEC 60947-5-1;63 A gG <= 690 V type 1 power circuit;63 A gG <= 690 V type 2 power circuit
average impedance: 2 mOhm - Ith 50 A 50 Hz power circuit
power dissipation per pole: 2 W AC-3;5 W AC-1;2 W AC-3e
[Ui] rated insulation voltage: Power circuit 690 V IEC 60947-4-1;Power circuit 600 V CSA;Power circuit 600 V UL;Signalling circuit 690 V IEC 60947-1;Signalling circuit 600 V CSA;Signalling circuit 600 V UL
overvoltage category: III
pollution degree: 3
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947
safety reliability level: B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
mechanical durability: 30 Mcycles
electrical durability: 1.65 Mcycles 32 A AC-3 <= 440 V;1.4 Mcycles 50 A AC-1 <= 440 V;1.65 Mcycles 32 A AC-3e <= 440 V
control circuit type: DC standard
coil technology: Built-in bidirectional peak limiting diode suppressor
control circuit voltage limits: 0.1...0.25 Uc -40…158 °F (-40…70 °C) drop-out DC;0.7...1.25 Uc -40…140 °F (-40…60 °C) operational DC;1...1.25 Uc 140…158 °F (60…70 °C) operational DC
inrush power in W: 5.4 W 68 °F (20 °C))
hold-in power consumption in W: 5.4 W 68 °F (20 °C)
operating time: 53.55...72.45 ms closing;16...24 ms opening
time constant: 28 ms
maximum operating rate: 3600 cyc/h 140 °F (60 °C)
connections - terminals: Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible with cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) solid without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) solid without cable end;Power circuit screw clamp terminals 1 0.00…0.02 in² (2.5…10 mm²) flexible without cable end;Power circuit screw clamp terminals 2 0.00…0.02 in² (2.5…10 mm²) flexible without cable end;Power circuit screw clamp terminals 1 0.00…0.02 in² (1…10 mm²) flexible with cable end;Power circuit screw clamp terminals 2 0.00…0.01 in² (1.5…6 mm²) flexible with cable end;Power circuit screw clamp terminals 1 0.00…0.02 in² (1.5…10 mm²) solid without cable end;Power circuit screw clamp terminals 2 0.00…0.02 in² (2.5…10 mm²) solid without cable end
tightening torque: Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm;Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2;Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals flat Ø 6 mm;Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals Philips No 2;Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2;Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals pozidriv No 2
auxiliary contact composition: 1 NO + 1 NC
auxiliary contacts type: Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1
signalling circuit frequency: 25...400 Hz
minimum switching voltage: 17 V signalling circuit
minimum switching current: 5 mA signalling circuit
insulation resistance: > 10 MOhm signalling circuit
non-overlap time: 1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact
Mounting Support: Rail;Plate
standards: CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508;IEC 60335-1
Product Certifications: DNV;GL;CCC;UL;GOST;BV;LROS (Lloyds register of shipping);RINA;CSA;UKCA
IP degree of protection: IP20 front face IEC 60529
protective treatment: THIEC 60068-2-30
climatic withstand: IACS E10 exposure to damp heat;IEC 60947-1 Annex Q category D exposure to damp heat
permissible ambient air temperature around the device: -40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating
