Brand: Schneider Electric (Square D)SKU: LADN22

List Price
~~$138.00~~

Web Price:

$45.95

Availability: IN STOCK

Orders over $999 ship FREE*

Special Notes

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 4pm CDT M-F

LADN22 | 2NO/2NC Front Mnt Aux Contacts | Schneider Electric (Square D)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LADN22

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) LADN22 Documents

Datasheet

Overview

Details for LADN22

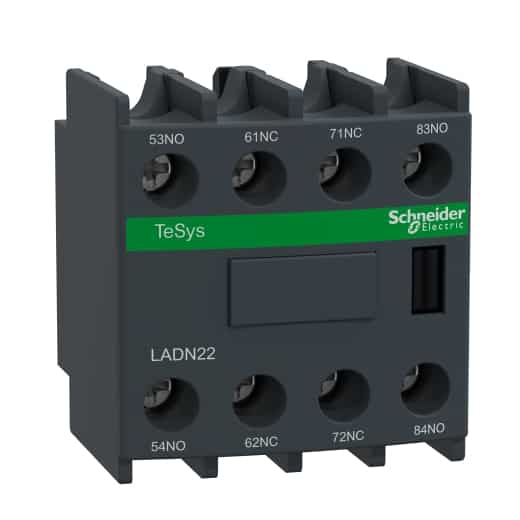

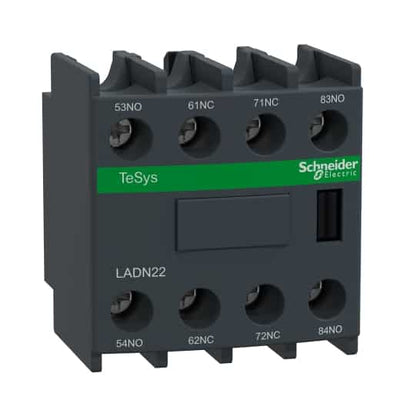

Schneider Electric (Square D) LADN22 Auxiliary Contact provides two normally open and two normally closed contacts for enhancing the functionality of electrical systems. This front-mounted auxiliary contact block offers flexibility and ease of use. Key Features: - 2NO/2NC Front-mounted Auxiliary Contacts: Expands the control capabilities of primary contactors. - Schneider Electric (Square D) Brand: Recognized for reliability and quality in the electrical industry. - Compact Design: Allows for space-saving installation in control panels and enclosures. - Enhanced Control: Extends the switching capabilities of contactors, enabling additional control functions. - Durable Construction: Ensures long-lasting performance in demanding industrial environments. Shop our HVAC supply store now for the best prices and fast shipping on the Schneider Electric (Square D) LADN22 Auxiliary Contact. Elevate your electrical control systems with this versatile and dependable solution.

Specifications

Range: TeSys
TeSys Deca
Product name: TeSys Deca
Product or component type: Auxiliary contact block
device short name: LADN
Range compatibility: TeSys D CAD
TeSys D LC1D
TeSys F LC1F
TeSys F CR1F
TeSys Deca CAD
TeSys Deca LC1D
Mounting location: Front
Pole contact composition: 2 NO + 2 NC
Contacts operation: Instantaneous
[Ue] rated operational voltage: 690 V AC 25...400 Hz
[Ie] rated operational current: 6 A at 120 V AC-15
1.04 A at 690 V AC-15
0.55 A at 125 V DC-13
0.1 A at 600 V DC-13
[Ui] rated insulation voltage: 690 V conforming to IEC 60947-5-1
600 V conforming to UL
600 V conforming to CSA
[Ith] conventional free air thermal current: 10 A (at 60 °C)
Standards: EN/IEC 60947-5-1
GB/T 14048.5
product certifications: CB
UL
CSA
CCC
UKCA
Irms rated making capacity: 140 A AC conforming to IEC 60947-5-1
250 A DC conforming to IEC 60947-5-1
Permissible short-time rating: 100 A 60 °C 1 s
120 A 60 °C 500 ms
140 A 60 °C 100 ms
Protection type: GG fuse 10 A
Mechanical durability: 30 Mcycles
Minimum switching current: 5 mA
Minimum switching voltage: 17 V
Non-overlap time: 1.5 ms on de-energisation no overlap between NC and NO contact
1.5 ms on energisation no overlap between NC and NO contact
Insulation resistance: > 10 MOhm
Connections - terminals: Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 1 cable(s) 1…4 mm²rigid without cable end
Screw clamp terminals 2 cable(s) 1…4 mm²rigid without cable end
Tightening torque: 1.7 N.m - with screwdriver flat Ø 6 mm
1.7 N.m - with screwdriver Philips No 2
1.7 N.m - with screwdriver pozidriv No 2
Height: 48 mm
Width: 44 mm
Depth: 42 mm
Net weight: 0.05 kg
Colour: Dark grey
Environmental characteristic: Normal environment
IP degree of protection: IP20 conforming to IEC 60529
Protective treatment: TH conforming to IEC 60068
Ambient air temperature for storage: -60…80 °C
Ambient air temperature for operation: -5…60 °C
Operating altitude: 3000 m
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.000 cm
Package 1 Width: 5.000 cm
Package 1 Length: 4.400 cm
Package 1 Weight: 62.000 g
Unit Type of Package 2: S03
Number of Units in Package 2: 160
Package 2 Height: 30.000 cm
Package 2 Width: 30.000 cm
Package 2 Length: 40.000 cm
Package 2 Weight: 10.470 kg
Unit Type of Package 3: P06
Number of Units in Package 3: 1280
Package 3 Height: 75.000 cm
Package 3 Width: 60.000 cm
Package 3 Length: 80.000 cm
Package 3 Weight: 91.760 kg
