LADN20 | TeSys D - Auxiliary Contact Block - 2 NO - Screw-Clamps Terminals | Schneider Electric (Square D)

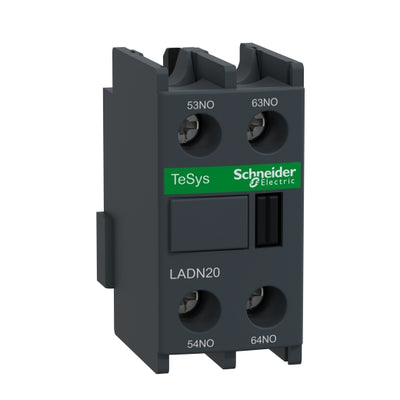

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LADN20

Jump to: Overview Specifications Reviews

Overview

Details for LADN20

Schneider Electric (Square D) LADN20 Front Mount Auxiliary Contact The LADN20 auxiliary contact from Schneider Electric (Square D) is a reliable and efficient component designed to enhance the functionality of electrical systems. This front mount contact features normally open (N/O) operation, providing a versatile solution for various applications. With its compact design, the LADN20 is ideal for applications where space is limited. Its durable construction ensures long-lasting performance in demanding industrial environments. This auxiliary contact is designed for easy installation and maintenance, reducing downtime and ensuring smooth operation of your electrical system. Our HVAC supply store offers the best prices and fast shipping on the LADN20 auxiliary contact. Trust Our HVAC supply store for all your electrical supply needs!

Specifications

Range: TeSys
TeSys Deca
Product name: TeSys Deca
Product or component type: Auxiliary contact block
device short name: LADN
Range compatibility: TeSys D CAD
TeSys D LC1D
TeSys F LC1F
TeSys F CR1F
TeSys Deca CAD
TeSys Deca LC1D
Mounting location: Front
Pole contact composition: 2 NO
Contacts operation: Instantaneous
[Ue] rated operational voltage: 690 V AC 25...400 Hz
[Ie] rated operational current: 6 A at 120 V AC-15
1.04 A at 690 V AC-15
0.55 A at 125 V DC-13
0.1 A at 600 V DC-13
[Ui] rated insulation voltage: 690 V conforming to IEC 60947-5-1
600 V conforming to UL
600 V conforming to CSA
[Ith] conventional free air thermal current: 10 A (at 60 °C)
Standards: UL 60947-5-1
CSA C22.2 No 60947-5-1
GB/T 14048.5
EN 50012
product certifications: CB
UL
CSA
CCC
EAC
UKCA
Irms rated making capacity: 140 A AC conforming to IEC 60947-5-1
250 A DC conforming to IEC 60947-5-1
Permissible short-time rating: 100 A 60 °C 1 s
120 A 60 °C 500 ms
140 A 60 °C 100 ms
Protection type: GG fuse 10 A
Mechanical durability: 30 Mcycles
Minimum switching current: 5 mA
Minimum switching voltage: 17 V
Non-overlap time: 1.5 ms on de-energisation no overlap between NC and NO contact
1.5 ms on energisation no overlap between NC and NO contact
Insulation resistance: > 10 MOhm
Connections - terminals: Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 1 cable(s) 1…4 mm²rigid without cable end
Screw clamp terminals 2 cable(s) 1…4 mm²rigid without cable end
Tightening torque: 1.7 N.m - with screwdriver flat Ø 6 mm
1.7 N.m - with screwdriver Philips No 2
1.7 N.m - with screwdriver pozidriv No 2
Height: 48 mm
Width: 26 mm
Depth: 42 mm
Colour: Dark grey
Environmental characteristic: Normal environment
IP degree of protection: IP20 conforming to IEC 60529
Protective treatment: TH conforming to IEC 60068
Ambient air temperature for storage: -60…80 °C
Ambient air temperature for operation: -5…60 °C
Operating altitude: 3000 m
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.800 cm
Package 1 Width: 4.200 cm
Package 1 Length: 5.200 cm
Package 1 Weight: 34.000 g
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 2.800 cm
Package 2 Width: 8.600 cm
Package 2 Length: 25.600 cm
Package 2 Weight: 342.000 g
Unit Type of Package 3: S03
Number of Units in Package 3: 320
Package 3 Height: 30.000 cm
Package 3 Width: 30.000 cm
Package 3 Length: 40.000 cm
Package 3 Weight: 11.452 kg
