Brand: Schneider Electric (Square D)SKU: LADN02

List Price
~~$82.00~~

$27.28

Availability: IN STOCK

Orders over $999 ship FREE*

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

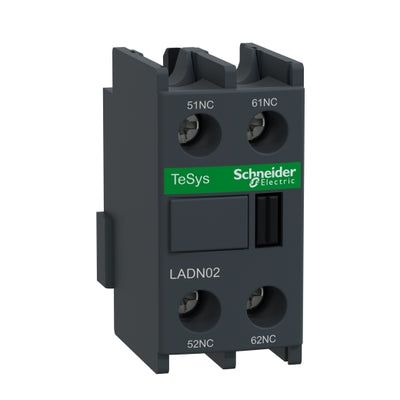

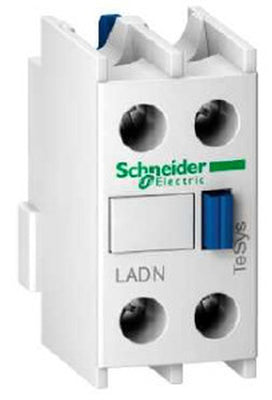

LADN02 | TeSys D Auxiliary Contact Block, 2 NC, Screw Clamp Terminals, 690V AC 25-400 Hz | Schneider Electric (Square D)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LADN02

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) LADN02 Documents

Datasheet

Overview

Details for LADN02

2 N/C Auxiliary Contacts: LADN02 from Schneider Electric (Square D) Schneider Electric's LADN02 auxiliary contact is an essential component for electrical systems. Engineered with 2 normally closed (N/C) contacts, this device quickly breaks the circuit when the coil is de-energized, ensuring reliable and precise control of electrical circuits. Its compact design makes it suitable for various industrial applications, providing space efficiency within electrical panels. Crafted from high-quality materials, the LADN02 contact boasts exceptional durability and robustness. Its rugged construction withstands harsh industrial environments, delivering long-lasting performance. Key Features: - 2 normally closed (N/C) contacts - Fast and reliable circuit interruption - Compact design for space-saving installations - Durable construction for demanding industrial conditions Benefits: - Enhanced electrical safety through quick circuit breaking - Improved system reliability due to dependable contact operation - Space-saving design optimizes electrical panel layout - Extended service life reduces maintenance costs Applications: - Motor control circuits - Control panels and switchboards - Industrial automation systems - Safety circuits Our HVAC supply store is your trusted source for electrical components and solutions. Shop now for the best prices and fast shipping on the LADN02 auxiliary contact from Schneider Electric (Square D)!

Specifications

Range: TeSys
TeSys Deca
Product name: TeSys Deca
Product or component type: Auxiliary contact block
device short name: LADN
Range compatibility: TeSys D CAD
TeSys D LC1D
TeSys F LC1F
TeSys F CR1F
TeSys Deca CAD
TeSys Deca LC1D
Mounting location: Front
Pole contact composition: 2 NC
Contacts operation: Instantaneous
[Ue] rated operational voltage: 690 V AC 25...400 Hz
[Ie] rated operational current: 6 A at 120 V AC-15
1.04 A at 690 V AC-15
0.55 A at 125 V DC-13
0.1 A at 600 V DC-13
[Ui] rated insulation voltage: 690 V conforming to IEC 60947-5-1
600 V conforming to UL
600 V conforming to CSA
[Ith] conventional free air thermal current: 10 A (at 60 °C)
Standards: EN/IEC 60947-5-1
UL 60947-5-1
CSA C22.2 No 60947-5-1
GB/T 14048.5
product certifications: CB
UL
CSA
CCC
EAC
UKCA
Irms rated making capacity: 140 A AC conforming to IEC 60947-5-1
250 A DC conforming to IEC 60947-5-1
Permissible short-time rating: 100 A 1 s
120 A 500 ms
140 A 100 ms
Protection type: GG fuse 10 A
Mechanical durability: 30 Mcycles
Minimum switching current: 5 mA
Minimum switching voltage: 17 V
Non-overlap time: 1.5 ms on de-energisation no overlap between NC and NO contact
1.5 ms on energisation no overlap between NC and NO contact
Insulation resistance: > 10 MOhm
Connections - terminals: Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 1 cable(s) 1…4 mm²rigid without cable end
Screw clamp terminals 2 cable(s) 1…4 mm²rigid without cable end
Tightening torque: 1.7 N.m - with screwdriver flat Ø 6 mm
1.7 N.m - with screwdriver Philips No 2
1.7 N.m - with screwdriver pozidriv No 2
Height: 48 mm
Width: 26 mm
Depth: 42 mm
Colour: Dark grey
Environmental characteristic: Normal environment
IP degree of protection: IP20 conforming to IEC 60529
Protective treatment: TH conforming to IEC 60068
Ambient air temperature for storage: -60…80 °C
Ambient air temperature for operation: -5…60 °C
Operating altitude: 3000 m
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.8 cm
Package 1 Width: 4.2 cm
Package 1 Length: 5.2 cm
Package 1 Weight: 34 g
Unit Type of Package 2: S03
Number of Units in Package 2: 320
Package 2 Height: 30 cm
Package 2 Width: 30 cm
Package 2 Length: 40 cm
Package 2 Weight: 11.367 kg
