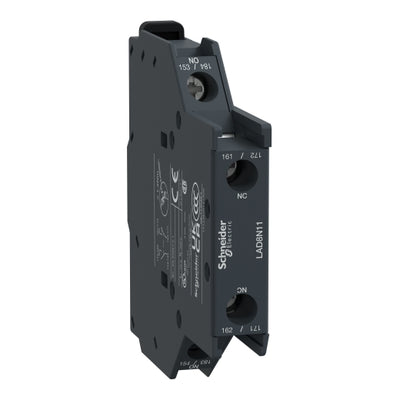

LAD8N11 | TeSys D - auxiliary contact block - 1 NO + 1 NC - screw clamp terminals | Schneider Electric (Square D)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LAD8N11

Jump to: Overview Specifications Reviews

Overview

Details for LAD8N11

1NO/1NC Side Mount Auxiliary Contact: LAD8N11 by Schneider Electric (Square D)Introducing the LAD8N11, a crucial component designed to enhance the functionality of your electrical systems. This auxiliary contact features a 1NO (normally open) and 1NC (normally closed) configuration, providing versatility in your control circuits. Engineered by Schneider Electric (Square D), a renowned name in electrical equipment, the LAD8N11 ensures reliability and durability. Its side-mount design allows for convenient installation and space optimization.Enhance Your Circuit Control: The LAD8N11 auxiliary contact plays a vital role in modifying or interrupting the flow of electrical current within your system. Its 1NO and 1NC contacts enable you to create complex control schemes, providing flexibility and customization options. This allows for remote monitoring, interlocking, and safety interlocks, empowering you with greater control over your electrical processes.Reliable Construction: The LAD8N11 is meticulously crafted to withstand demanding industrial environments. Its robust construction guarantees long-lasting performance. The sturdy materials and precision engineering ensure consistent operation, minimizing downtime and maintenance costs. Trust the LAD8N11 to deliver reliable performance for your critical electrical systems.At our HVAC supply store, we are committed to providing our customers with superior products and exceptional service. We offer competitive pricing and fast shipping to ensure your operations run smoothly. Contact us today to learn more about the LAD8N11 and how it can enhance your electrical systems.

Specifications

Range: TeSys
Product name: TeSys Deca
Product or component type: Auxiliary contact block
Range compatibility: TeSys Deca LC1D09…95 AC coil
TeSys Deca LC1D115/150
TeSys Deca LC1D40A…80A AC Coil
TeSys Deca CAD AC coil
TeSys F LC1F
Mounting location: Side
Pole contact composition: 1 NO + 1 NC
Contacts operation: Instantaneous
[Ue] rated operational voltage: 690 V AC 25...400 Hz
[Ie] rated operational current: 6 A at 120 V AC-15
1.04 A at 690 V AC-15
0.55 A at 125 V DC-13
0.1 A at 600 V DC-13
[Ui] rated insulation voltage: 690 V conforming to IEC 60947-5-1
600 V conforming to UL
600 V conforming to CSA
[Ith] conventional free air thermal current: 10 A (at 60 °C)
Standards: UL 60947-5-1
CSA C22.2 No 60947-5-1
GB/T 14048.5
EN/IEC 60947-5-1
product certifications: CB
UL
CSA
CCC
EAC
UKCA
Irms rated making capacity: 140 A AC conforming to IEC 60947-5-1
250 A DC conforming to IEC 60947-5-1
Permissible short-time rating: 100 A 1 s
120 A 500 ms
140 A 100 ms
Protection type: GG fuse 10 A
Mechanical durability: 30 Mcycles
Minimum switching current: 5 mA
Minimum switching voltage: 17 V
Non-overlap time: 1.5 ms on de-energisation no overlap between NC and NO contact
1.5 ms on energisation no overlap between NC and NO contact
Insulation resistance: > 10 MOhm
Connections - terminals: Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 1 cable(s) 1…4 mm²rigid without cable end
Screw clamp terminals 2 cable(s) 1…4 mm²rigid without cable end
Tightening torque: 1.7 N.m - with screwdriver flat Ø 6 mm
1.7 N.m - with screwdriver Philips No 2
1.7 N.m - with screwdriver pozidriv No 2
Height: 76 mm
Width: 12.5 mm
Depth: 76 mm
Environmental characteristic: Normal environment
IP degree of protection: IP20 conforming to IEC 60529
Protective treatment: TH conforming to IEC 60068
Ambient air temperature for storage: -60…80 °C
Ambient air temperature for operation: -5…60 °C
Operating altitude: 3000 m
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.2 cm
Package 1 Width: 7.1 cm
Package 1 Length: 7.5 cm
Package 1 Weight: 62.0 g
Unit Type of Package 2: S02
Number of Units in Package 2: 60
Package 2 Height: 15.0 cm
Package 2 Width: 30.0 cm
Package 2 Length: 40.0 cm
Package 2 Weight: 4.308 kg
Unit Type of Package 3: P06
Number of Units in Package 3: 960
Package 3 Height: 75 cm
Package 3 Width: 60 cm
Package 3 Length: 80 cm
Package 3 Weight: 79 kg
