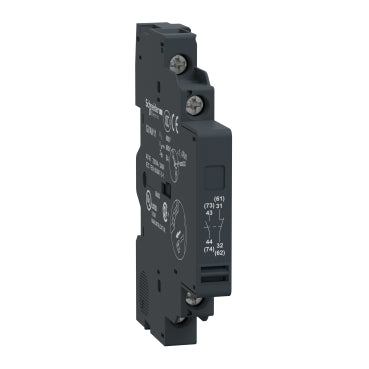

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GVAN11

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) GVAN11 Documents

More Info

Overview

Details for GVAN11

Left-Mount Auxiliary Contact. The GV AN11 left-mount auxiliary contact is compatible with a wide range of Schneider Electric (Square D) contactors and provides added functionality to your electrical system. Enjoy the convenience of fast shipping and competitive pricing when you order from our HVAC supply store. TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 6A/690V AC and 6A/240V DC. To be installed on left-hand side of the circuit breaker (2 blocks mounting possible), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys, TeSys Deca
Device short name: GVAN
Product or Component Type: Auxiliary contact block
Product Compatibility: GV2ME, GV2RT, GV2L, GV3P, GV3L, GV2LE, GV2P
Mounting Location: Left side
Pole contact composition: 1 NO + 1 NC
[Ui] rated insulation voltage: 600 V UL 508, 690 V IEC 60947-1, 600 V CSA C22.2 No 14
[Ue] rated operational voltage: 48...690 V AC, 24...240 V DC
[Ith] conventional free air thermal current: 6 A
protection type: GB2CB... circuit breaker, GG fuse 10 A
Mechanical durability: 100000 cycles
minimum switching current: 5 mA
minimum switching voltage: 17 V
rated operational power in VA: 300 VA 48 V AC-15 100000 cycles, 414 VA 690 V AC-15 100000 cycles, 500 VA 110…127 V AC-15 100000 cycles, 500 VA 500 V AC-15 100000 cycles, 650 VA 440 V AC-15 100000 cycles, 720 VA 230…240 V AC-15 100000 cycles, 850 VA 380…415 V AC-15 100000 cycles
rated operational power in W: 120 W 240 V DC-13 100000 cycles, 140 W 110 V DC-13 100000 cycles, 140 W 24 V DC-13 100000 cycles, 180 W 60 V DC-13 100000 cycles, 240 W 48 V DC-13 100000 cycles
tightening torque: 12.39 lbf.in (1.4 N.m) screw clamp terminals
Height: 3.50 in (89 mm)
Width: 0.37 in (9.3 mm)
Depth: 2.60 in (66 mm)
Net Weight: 0.11 lb(US) (0.05 kg)
color: Dark grey
Environmental characteristic: Normal environment
Product Certifications: UKCA
Category: 22367-MANUAL STR PROTECTOR - GV2
Discount Schedule: I11
GTIN: 3389110343489
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 0.59 in (1.500 cm)
Package 1 Width: 2.76 in (7.000 cm)
Package 1 Length: 3.54 in (9.000 cm)
Package 1 Weight: 1.62 oz (46 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 3.74 in (9.500 cm)
Package 2 Width: 3.94 in (10.000 cm)
Package 2 Length: 5.98 in (15.200 cm)
Package 2 Weight: 17.99 oz (510 g)
Unit Type of Package 3: S02
Number of Units in Package 3: 60
Package 3 Height: 5.91 in (15.000 cm)
Package 3 Width: 11.81 in (30.000 cm)
Package 3 Length: 15.75 in (40.000 cm)
Package 3 Weight: 7.26 lb(US) (3.294 kg)
Warranty: 18 months
