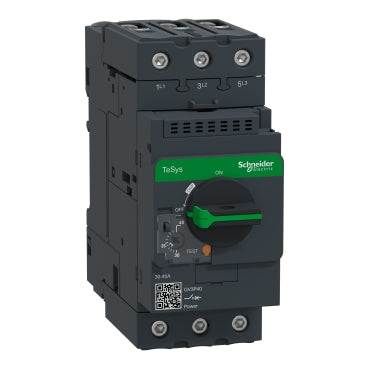

GV3P40 | TeSys GV3 Circuit Breaker, Thermal Magnetic, 3-Pole, 40A, 690VAC, EverLink BTR Screw Connectors, IP20 | Schneider Electric (Square D)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GV3P40

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) GV3P40 Documents

More Info

Overview

Details for GV3P40

The GV3P40 from Schneider Electric (Square D) is a 600A 40A 3P IEC Motor Starter designed for demanding industrial applications. This motor starter offers reliable protection and control for three-phase motors in various industries, including manufacturing, mining, and infrastructure. The GV3P40 features a robust design with a high-strength enclosure for durability and long-lasting performance. It utilizes advanced technology to provide precise motor control, overload protection, and short-circuit protection. The motor starter is equipped with adjustable thermal overload relays, allowing you to customize the protection settings based on the specific requirements of your application. The GV3P40's compact design allows for easy installation and maintenance. It incorporates user-friendly terminals for quick and secure wiring, reducing downtime during maintenance operations. Multiple auxiliary contacts provide flexible control and integration options for various applications. With its advanced features and reliability, the GV3P40 is an ideal choice for engineers and maintenance professionals seeking a robust and efficient motor starter for their industrial applications. Our HVAC supply store offers the best prices and fast shipping for your industrial supply needs. Contact us today for more information and pricing on the Schneider Electric (Square D) GV3P40. The GV3 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV3PE controls motors with full load currents up to 65 amperes. The manual starter is three pole with horsepower ratings. The manual starter is operated by a rotary handle. The Class 10 ambient compensated thermal over current is adjustable from 30 ampere to 40 ampere. This device has EVERLINK terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Specifications

range: TeSys Deca;TeSys Deca
product name: TeSys GV3;TeSys Deca
Product or Component Type: Motor circuit breaker
device short name: GV3P
Device Application: Motor protection
trip unit technology: Thermal-magnetic
poles description: 3P
network type: AC
utilisation category: AC-3 IEC 60947-4-1
network frequency: 50/60 Hz IEC 60947-4-1
motor power kW: 18.5 kW 400/415 V AC 50/60 Hz;22 kW 500 V AC 50/60 Hz;37 kW 690 V AC 50/60 Hz
breaking capacity: 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2;50 kA Icu 440 V AC 50/60 Hz IEC 60947-2;6 kA Icu 690 V AC 50/60 Hz IEC 60947-2;50 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2;12 kA Icu 500 V AC 50/60 Hz IEC 60947-2
[Ics] rated service short-circuit breaking capacity: 100 % 230/240 V AC 50/60 Hz IEC 60947-2;100 % 440 V AC 50/60 Hz IEC 60947-2;100 % 400/415 V AC 50/60 Hz IEC 60947-2;50 % 500 V AC 50/60 Hz IEC 60947-2;50 % 690 V AC 50/60 Hz IEC 60947-2
Control Type: Rotary handle
Line Rated Current: 40 A
magnetic tripping current: 560 A
[Ue] rated operational voltage: 690 V AC 50/60 Hz IEC 60947-2
[Ith] conventional free air thermal current: 40 A IEC 60947-4-1
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-2
power dissipation per pole: 8 W
mechanical durability: 50000 cycles
electrical durability: 50000 cycles AC-3 415 V In
rated duty: Continuous IEC 60947-4-1
phase failure sensitivity: Yes IEC 60947-4-1
suitability for isolation: Yes IEC 60947-1
Width: 2.17 in (55 mm)
Height: 5.20 in (132 mm)
Depth: 5.35 in (136 mm)
Net Weight: 2.12 lb(US) (0.96 kg)
Standards: EN/IEC 60947-2;EN/IEC 60947-4-1;UL 60947-4-1;CSA C22.2 No 60947-4-1
Product Certifications: CCC;EAC;BV;LROS (Lloyds register of shipping);DNV-GL;ABS;UL;CSA;UKCA;ATEX
IP degree of protection: IP20 IEC 60529
climatic withstand: IACS E10
Ambient Air Temperature for Storage: -40…176 °F (-40…80 °C)
fire resistance: 1760 °F (960 °C) IEC 60695-2-11
ambient air temperature for operation: -4…140 °F (-20…60 °C)
operating altitude: 9842.52 ft (3000 m)
Category: 22366-MAN STR PROTECTORS-GV1/GV3
Discount Schedule: I11
GTIN: 3389119405393
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 6.30 in (16.000 cm)
Package 1 Width: 2.56 in (6.500 cm)
Package 1 Length: 5.75 in (14.600 cm)
Package 1 Weight: 34.67 oz (983 g)
Unit Type of Package 2: P06
Number of Units in Package 2: 120
Package 2 Height: 29.53 in (75.000 cm)
Package 2 Width: 23.62 in (60.000 cm)
Package 2 Length: 31.50 in (80.000 cm)
Package 2 Weight: 295.33 lb(US) (133.960 kg)
Warranty: 18 months
