GV2ME20 | TeSys GV2 Circuit Breaker, Thermal Magnetic, 3-Pole, 18A, 690VAC, Screw Clamp Terminals, IP20 | Schneider Electric (Square D)

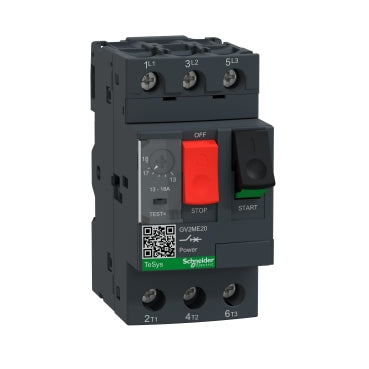

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GV2ME20
Documents and manuals
Schneider Electric (Square D) GV2ME20 Documents
Overview
Details for GV2ME20
13-18AMP Motor StarterGV2ME20
The GV2ME20 13-18AMP motor starter from Schneider Electric (Square D) offers reliable and efficient performance for a wide range of industrial applications. This motor starter is designed with advanced technology, providing protection and control for your motors.
Key Features:
* Provides robust protection for motors against overloads, short circuits, and phase failures
* Features a compact design, saving space in your control panel
* Easy to install and maintain
* Complies with international standards for safety and reliability
Benefits:
* Enhanced motor protection extends the lifespan of your motors
* Space-saving design optimizes your control panel layout
* Reduced downtime due to easy maintenance
* Ensures compliance with industry standards for safety and quality
Applications:
* Ideal for use in industrial settings, such as manufacturing, mining, and construction
* Suitable for controlling motors in pumps, fans, compressors, and other industrial equipment
Our HVAC supply store offers the best prices and fast shipping for your industrial supplies. Trust us for all your electrical and automation needs! The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 13 ampere to 18 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Specifications
- range
- TeSys Deca;TeSys Deca
- product name
- TeSys GV2;TeSys Deca
- Product or Component Type
- Motor circuit breaker
- device short name
- GV2ME
- Device Application
- Motor protection
- trip unit technology
- Thermal-magnetic
- poles description
- 3P
- network type
- AC
- utilisation category
- AC-3 IEC 60947-4-1;Category A IEC 60947-2
- network frequency
- 50/60 Hz IEC 60947-4-1
- motor power kW
- 7.5 kW 400/415 V AC 50/60 Hz;9 kW 500 V AC 50/60 Hz;15 kW 690 V AC 50/60 Hz
- breaking capacity
- 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2;3 kA Icu 690 V AC 50/60 Hz IEC 60947-2;15 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2;8 kA Icu 440 V AC 50/60 Hz IEC 60947-2;6 kA Icu 500 V AC 50/60 Hz IEC 60947-2
- [Ics] rated service short-circuit breaking capacity
- 100 % 230/240 V AC 50/60 Hz IEC 60947-2;75 % 690 V AC 50/60 Hz IEC 60947-2;75 % 500 V AC 50/60 Hz IEC 60947-2;50 % 400/415 V AC 50/60 Hz IEC 60947-2;50 % 440 V AC 50/60 Hz IEC 60947-2
- Control Type
- Push-button
- Line Rated Current
- 18 A
- magnetic tripping current
- 223 A
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz IEC 60947-2
- [Ith] conventional free air thermal current
- 18 A IEC 60947-4-1
- [Uimp] rated impulse withstand voltage
- 6 kV IEC 60947-2
- power dissipation per pole
- 2.5 W
- mechanical durability
- 100000 cycles
- electrical durability
- 100000 cycles AC-3 415 V
- rated duty
- Continuous IEC 60947-4-1
- phase failure sensitivity
- Yes IEC 60947-4-1
- suitability for isolation
- Yes IEC 60947-1 § 7-1-6
- Width
- 1.77 in (45 mm)
- Height
- 3.50 in (89 mm)
- Depth
- 3.09 in (78.5 mm)
- Net Weight
- 0.57 lb(US) (0.26 kg)
- Standards
- EN/IEC 60947-2;EN/IEC 60947-4-1
- Product Certifications
- CCC;UL;CSA;EAC;ATEX;BV;LROS (Lloyds register of shipping);UKCA;DNV-GL;RINA
- IP degree of protection
- IP20 IEC 60529
- climatic withstand
- IACS E10
- Ambient Air Temperature for Storage
- -40…176 °F (-40…80 °C)
- fire resistance
- 1760 °F (960 °C) IEC 60695-2-11
- ambient air temperature for operation
- -4…140 °F (-20…60 °C)
- operating altitude
- 6561.68 ft (2000 m)
- Category
- 22367-MANUAL STR PROTECTOR - GV2
- Discount Schedule
- I11
- GTIN
- 3389110343199
- Returnability
- Yes
- Country of origin
- TH
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.77 in (4.5 cm)
- Package 1 Width
- 3.35 in (8.5 cm)
- Package 1 Length
- 3.74 in (9.5 cm)
- Package 1 Weight
- 9.98 oz (283 g)
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 24
- Package 2 Height
- 5.91 in (15 cm)
- Package 2 Width
- 11.81 in (30 cm)
- Package 2 Length
- 15.75 in (40 cm)
- Package 2 Weight
- 15.53 lb(US) (7.044 kg)
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 384
- Package 3 Height
- 29.53 in (75 cm)
- Package 3 Width
- 31.50 in (80 cm)
- Package 3 Length
- 23.62 in (60 cm)
- Package 3 Weight
- 266.11 lb(US) (120.704 kg)
- Warranty
- 18 months
