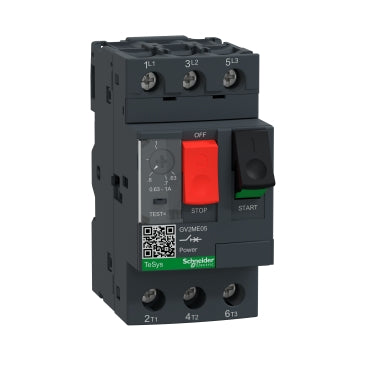

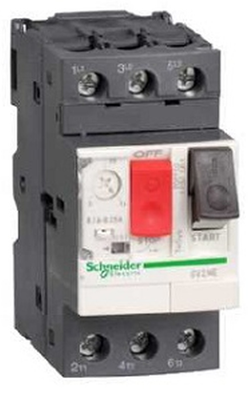

GV2ME05 | TeSys GV2 Circuit Breaker, Thermal Magnetic, 3-Pole, 1A, 690VAC, Screw Clamp Terminals, IP20 | Schneider Electric (Square D)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GV2ME05

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) GV2ME05 Documents

More Info

Overview

Details for GV2ME05

The Schneider Electric Square D GV2ME05 Manual Starter provides reliable control and protection for industrial applications. Its 600VAC 1AMP rating and IEC standard design make it suitable for a wide range of electrical systems. The manual operation allows for precise and efficient control of the connected equipment, ensuring safety and ease of use. The compact and robust construction ensures durability in demanding environments. Whether for starting motors or protecting electrical circuits, the Schneider Electric Square D GV2ME05 Manual Starter offers a dependable solution for your industrial needs. Choose our HVAC supply store for the best prices and fast shipping on all your industrial products! The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 0.63 ampere to 1 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Specifications

range: TeSys Deca;TeSys Deca
product name: TeSys GV2;TeSys Deca
Product or Component Type: Motor circuit breaker
device short name: GV2ME
Device Application: Motor protection
trip unit technology: Thermal-magnetic
poles description: 3P
network type: AC
utilisation category: AC-3 IEC 60947-4-1;Category A IEC 60947-2
network frequency: 50/60 Hz IEC 60947-4-1
motor power kW: 0.25 kW 400/415 V AC 50/60 Hz;0.55 kW 690 V AC 50/60 Hz
breaking capacity: 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2;100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2;100 kA Icu 440 V AC 50/60 Hz IEC 60947-2;100 kA Icu 500 V AC 50/60 Hz IEC 60947-2;100 kA Icu 690 V AC 50/60 Hz IEC 60947-2
[Ics] rated service short-circuit breaking capacity: 100 % 690 V AC 50/60 Hz IEC 60947-2;100 % 500 V AC 50/60 Hz IEC 60947-2;100 % 230/240 V AC 50/60 Hz IEC 60947-2;100 % 440 V AC 50/60 Hz IEC 60947-2;100 % 400/415 V AC 50/60 Hz IEC 60947-2
Control Type: Push-button
Line Rated Current: 1 A
magnetic tripping current: 13 A
[Ue] rated operational voltage: 690 V AC 50/60 Hz IEC 60947-2
[Ith] conventional free air thermal current: 1 A IEC 60947-4-1
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-2
power dissipation per pole: 2.5 W
mechanical durability: 100000 cycles
electrical durability: 100000 cycles AC-3 415 V
rated duty: Continuous IEC 60947-4-1
phase failure sensitivity: Yes IEC 60947-4-1
suitability for isolation: Yes IEC 60947-1 § 7-1-6
Width: 1.77 in (45 mm)
Height: 3.50 in (89 mm)
Depth: 3.09 in (78.5 mm)
Net Weight: 0.62 lb(US) (0.28 kg)
Standards: EN/IEC 60947-2;EN/IEC 60947-4-1
Product Certifications: CCC;UL;CSA;EAC;ATEX;BV;LROS (Lloyds register of shipping);UKCA;DNV-GL;RINA
IP degree of protection: IP20 IEC 60529
climatic withstand: IACS E10
Ambient Air Temperature for Storage: -40…176 °F (-40…80 °C)
fire resistance: 1760 °F (960 °C) IEC 60695-2-11
ambient air temperature for operation: -4…140 °F (-20…60 °C)
operating altitude: 6561.68 ft (2000 m)
Category: 22367-MANUAL STR PROTECTOR - GV2
Discount Schedule: I11
GTIN: 3389110343038
Returnability: Yes
Country of origin: TH
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.77 in (4.5 cm)
Package 1 Width: 3.35 in (8.5 cm)
Package 1 Length: 3.74 in (9.5 cm)
Package 1 Weight: 8.15 oz (231 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 24
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 12.78 lb(US) (5.799 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 384
Package 3 Height: 29.53 in (75 cm)
Package 3 Width: 31.50 in (80 cm)
Package 3 Length: 23.62 in (60 cm)
Package 3 Weight: 222.19 lb(US) (100.784 kg)
Warranty: 18 months
