CA2SKE20U7 | 240V 10A Alternating Relay | Schneider Electric (Square D)

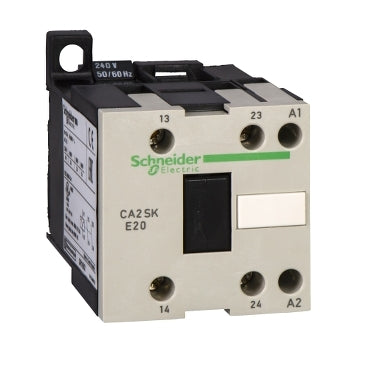

Schneider Electric (Square D) | CA2SKE20U7

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CA2SKE20U7

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) CA2SKE20U7 Documents

More Info

Overview

Details for CA2SKE20U7

Schneider Electric (Square D) CA2SKE20U7 240V 10A Alternating Relay The Schneider Electric (Square D) CA2SKE20U7 is a reliable and efficient alternating relay designed for industrial applications. It operates on a voltage of 240V and provides a current rating of 10A. This alternating relay is ideal for controlling various electrical circuits and systems in industrial settings. Key Features: â€¢ Voltage: 240V â€¢ Current: 10A â€¢ Compact and durable design â€¢ Easy to install and maintain Benefits: â€¢ Provides reliable and efficient control of electrical circuits â€¢ Suitable for a wide range of industrial applications â€¢ Helps improve system performance and reduce downtime Applications: The Schneider Electric (Square D) CA2SKE20U7 240V 10A Alternating Relay is commonly used in industrial automation systems, motor control circuits, and various other electrical applications where reliable and efficient switching is required. Conclusion: our HVAC supply store offers the Schneider Electric (Square D) CA2SKE20U7 240V 10A Alternating Relay at competitive prices, ensuring you get the best value for your money. We provide fast shipping and excellent customer service to meet your industrial supply needs. Order now and experience the exceptional quality and performance of this alternating relay in your industrial applications!

Specifications

range: TeSys
product name: TeSys CASK
Product or Component Type: Control relay
device short name: CA2SKE
contactor application: Control circuit
utilisation category: AC-15;DC-13
pole contact composition: 2 NO
[Ue] rated operational voltage: <= 690 V <= 400 Hz
control circuit type: AC 50/60 Hz
[Uc] control circuit voltage: 240 V AC 50/60 Hz
[Ith] conventional free air thermal current: 10 A 131 °F (55 °C)
associated fuse rating: 10 A gL VDE 0660;10 A gL IEC 60947
[Ui] rated insulation voltage: 690 V IEC 60947;690 V VDE 0110 group C;690 V BS 5424;690 V UL 508;690 V CSA C22.2 No 14
Mounting Support: Rail;Plate
connections - terminals: screw clamp terminals 1 0.00…0.01 in² (1.5…6 mm²)solid;screw clamp terminals 2 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 1 0.00…0.01 in² (0.5…6 mm²)flexible without cable end;screw clamp terminals 1 0.00…0.01 in² (0.35…6 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.00 in² (0.35…1.5 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.00 in² (0.35…2.5 mm²)flexible without cable end
tightening torque: 7.08 lbf.in (0.8 N.m) screw clamp terminals pozidriv No 1
control circuit voltage limits: Drop-out 0.2...0.75 Uc 122 °F (50 °C));Operational 0.85...1.1 Uc 122 °F (50 °C))
operating time: 6...8 ms coil de-energisation and NO opening;7...14 ms coil energisation and NO closing
mechanical durability: 10 Mcycles
maximum operating rate: 1200 cyc/h
inrush power in VA: 23 VA 68 °F (20 °C))
hold-in power consumption in VA: 4.9 VA 68 °F (20 °C))
heat dissipation: 1.5 W
Height: 2.28 in (58 mm)
Width: 1.77 in (45 mm)
Depth: 2.68 in (68 mm)
Net Weight: 0.29 lb(US) (0.132 kg)
Standards: NF C 63-110;BS 5424;IEC 60947;VDE 0660
Product Certifications: cULus
IP degree of protection: IP2x
protective treatment: TC IEC 60068
Ambient air temperature for operation: -4…122 °F (-20…50 °C)
Ambient Air Temperature for Storage: -58…158 °F (-50…70 °C)
operating altitude: 6561.68 ft (2000 m) without derating
Category: 22371-RELAYS;CONTROL
Discount Schedule: I12
GTIN: 3389110567113
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.89 in (4.8 cm)
Package 1 Width: 2.36 in (6.0 cm)
Package 1 Length: 2.95 in (7.5 cm)
Package 1 Weight: 6.38 oz (181.0 g)
Unit Type of Package 2: S01
Number of Units in Package 2: 24
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 5.91 in (15.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 10.07 lb(US) (4.566 kg)
Warranty: 18 months
