CA2SKE20T7 | Alternating Relay, TeSys SK control relay- 2 NO - <= 690 V - 480 V AC coil | Schneider Electric (Square D)

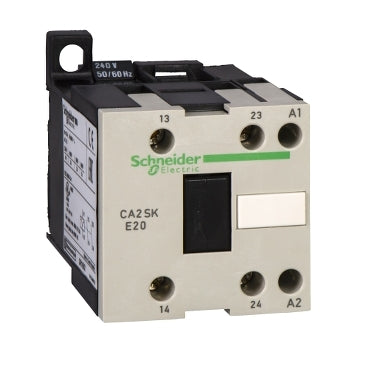

Schneider Electric (Square D) | CA2SKE20T7

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CA2SKE20T7

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) CA2SKE20T7 Documents

More Info

Overview

Details for CA2SKE20T7

Schneider Electric (Square D) CA2SKE20T7 Alternating Relay: Enhance Your Control Systems The CA2SKE20T7 alternating relay from Schneider Electric (Square D) is a vital component for industrial and commercial applications. It operates at a voltage of 480V, making it suitable for heavy-duty systems. The relay features a robust design, ensuring reliability and durability in demanding environments. With its alternating action, this relay allows for effective control of electrical circuits. It is designed to switch between two circuits, providing flexibility and convenience. The CA2SKE20T7 is particularly valuable for applications requiring high-power switching capabilities. The relay's compact size and easy-to-install design make it a practical choice for various electrical systems. It meets industry standards, guaranteeing safety and compatibility. This alternating relay is part of a comprehensive line of control products offered by Schneider Electric (Square D), providing complete solutions for complex industrial applications.

Specifications

range: TeSys
product name: TeSys CASK
Product or Component Type: Control relay
device short name: CA2SKE
contactor application: Control circuit
utilisation category: DC-13;AC-15
pole contact composition: 2 NO
[Ue] rated operational voltage: <= 690 V <= 400 Hz
control circuit type: AC 50/60 Hz
[Uc] control circuit voltage: 480 V AC 50/60 Hz
[Ith] conventional free air thermal current: 10 A 131 °F (55 °C)
associated fuse rating: 10 A gL VDE 0660;10 A gL IEC 60947
[Ui] rated insulation voltage: 690 V IEC 60947;690 V VDE 0110 group C;690 V BS 5424;690 V UL 508;690 V CSA C22.2 No 14
Mounting Support: Plate;Rail
connections - terminals: screw clamp terminals 1 0.00…0.01 in² (1.5…6 mm²)solid;screw clamp terminals 2 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 1 0.00…0.01 in² (0.5…6 mm²)flexible without cable end;screw clamp terminals 1 0.00…0.01 in² (0.35…6 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.00 in² (0.35…1.5 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.00 in² (0.35…2.5 mm²)flexible without cable end
tightening torque: 7.08 lbf.in (0.8 N.m) screw clamp terminals pozidriv No 1
control circuit voltage limits: Drop-out 0.2...0.75 Uc 122 °F (50 °C));Operational 0.85...1.1 Uc 122 °F (50 °C))
operating time: 6...8 ms coil de-energisation and NO opening;7...14 ms coil energisation and NO closing
mechanical durability: 10 Mcycles
maximum operating rate: 1200 cyc/h
inrush power in VA: 23 VA 68 °F (20 °C))
hold-in power consumption in VA: 4.9 VA 68 °F (20 °C))
heat dissipation: 1.5 W
Height: 2.28 in (58 mm)
Width: 1.77 in (45 mm)
Depth: 2.68 in (68 mm)
Net Weight: 0.29 lb(US) (0.132 kg)
Standards: NF C 63-110;VDE 0660;BS 5424;IEC 60947
Product Certifications: cULus
IP degree of protection: IP2x
protective treatment: TC IEC 60068
Ambient air temperature for operation: -4…122 °F (-20…50 °C)
Ambient Air Temperature for Storage: -58…158 °F (-50…70 °C)
operating altitude: 6561.68 ft (2000 m) without derating
Category: 22371-RELAYS;CONTROL
Discount Schedule: I12
GTIN: 3389110733143
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.83 in (7.2 cm)
Package 1 Width: 2.36 in (6.0 cm)
Package 1 Length: 1.85 in (4.7 cm)
Package 1 Weight: 6.00 oz (170.0 g)
Warranty: 18 months
