CA2SKE20M7 | TeSys SK Control Relay - 2 NO - <= 690 V - 220 V AC Coil | Schneider Electric (Square D)

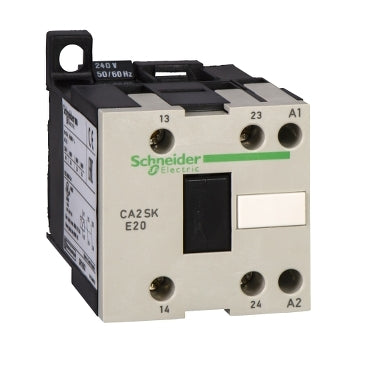

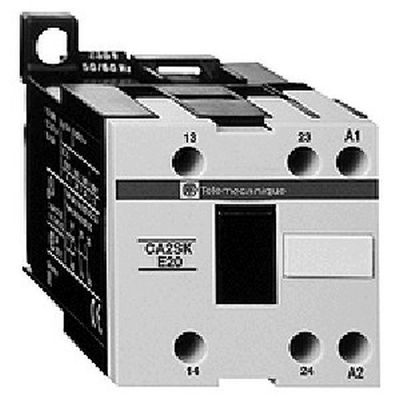

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to CA2SKE20M7
Documents and manuals
Schneider Electric (Square D) CA2SKE20M7 Documents
Overview
Details for CA2SKE20M7
Protect Your Electrical Equipment with NCO-CA2SKE20M7 Alternating Relay from Schneider Electric (Square D)
Introducing the CA2SKE20M7 alternating relay from Schneider Electric (Square D), an essential component for safeguarding your electrical systems. This durable relay offers reliable voltage switching, ensuring flawless operation of your critical equipment. Schneider Electric is renowned for its unwavering commitment to quality, making the CA2SKE20M7 a dependable choice for industrial engineers and maintenance professionals.
The NCO-CA2SKE20M7 is designed to handle 220V and 10Amp, making it suitable for a wide range of applications. Its compact design allows for easy integration into existing electrical systems, ensuring minimal space constraints. With a robust construction, this relay withstands the rigors of industrial environments, providing long-lasting performance.
Our HVAC supply store is proud to offer the CA2SKE20M7 alternating relay at competitive prices, backed by our commitment to fast and reliable shipping. As a trusted supplier of industrial products, we understand the importance of having the right components to keep your operations running smoothly. Choose Our HVAC supply store for all your industrial needs and experience the difference.
Specifications
- range
- TeSys
- product name
- TeSys CASK
- Product or Component Type
- Control relay
- device short name
- CA2SKE
- contactor application
- Control circuit
- utilisation category
- AC-15;DC-13
- pole contact composition
- 2 NO
- [Ue] rated operational voltage
- <= 690 V <= 400 Hz
- control circuit type
- AC 50/60 Hz
- [Uc] control circuit voltage
- 220 V AC 50/60 Hz
- [Ith] conventional free air thermal current
- 10 A 131 °F (55 °C)
- associated fuse rating
- 10 A gL VDE 0660;10 A gL IEC 60947
- [Ui] rated insulation voltage
- 690 V IEC 60947;690 V VDE 0110 group C;690 V BS 5424;690 V UL 508;690 V CSA C22.2 No 14
- Mounting Support
- Rail;Plate
- connections - terminals
- screw clamp terminals 1 0.00…0.01 in² (1.5…6 mm²)solid;screw clamp terminals 2 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 1 0.00…0.01 in² (0.5…6 mm²)flexible without cable end;screw clamp terminals 1 0.00…0.01 in² (0.35…6 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.00 in² (0.35…1.5 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.00 in² (0.35…2.5 mm²)flexible without cable end
- tightening torque
- 7.08 lbf.in (0.8 N.m) screw clamp terminals pozidriv No 1
- control circuit voltage limits
- Drop-out 0.2...0.75 Uc 122 °F (50 °C));Operational 0.85...1.1 Uc 122 °F (50 °C))
- operating time
- 6...8 ms coil de-energisation and NO opening;7...14 ms coil energisation and NO closing
- mechanical durability
- 10 Mcycles
- maximum operating rate
- 1200 cyc/h
- inrush power in VA
- 23 VA 68 °F (20 °C))
- hold-in power consumption in VA
- 4.9 VA 68 °F (20 °C))
- heat dissipation
- 1.5 W
- Height
- 2.28 in (58 mm)
- Width
- 1.77 in (45 mm)
- Depth
- 2.68 in (68 mm)
- Net Weight
- 0.29 lb(US) (0.132 kg)
- Standards
- BS 5424;NF C 63-110;IEC 60947;VDE 0660
- Product Certifications
- cULus
- IP degree of protection
- IP2x
- protective treatment
- TC IEC 60068
- Ambient air temperature for operation
- -4…122 °F (-20…50 °C)
- Ambient Air Temperature for Storage
- -58…158 °F (-50…70 °C)
- operating altitude
- 6561.68 ft (2000 m) without derating
- Category
- 22371-RELAYS;CONTROL
- Discount Schedule
- I12
- GTIN
- 3389110567090
- Returnability
- Yes
- Country of origin
- CZ
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.11 in (7.9 cm)
- Package 1 Width
- 2.36 in (6.0 cm)
- Package 1 Length
- 1.89 in (4.8 cm)
- Package 1 Weight
- 6.38 oz (181.0 g)
- Unit Type of Package 2
- S01
- Number of Units in Package 2
- 24
- Package 2 Height
- 5.91 in (15.0 cm)
- Package 2 Width
- 5.91 in (15.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 10.09 lb(US) (4.577 kg)
- Warranty
- 18 months
