CA2KN22G7 | TeSys K Control Relay, 2 NO + 2 NC, <=690V, 120VAC Coil, Screw Clamp Terminals | Schneider Electric (Square D)

Schneider Electric (Square D) | CA2KN22G7

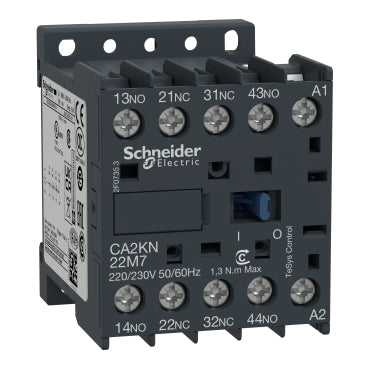

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CA2KN22G7

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) CA2KN22G7 Documents

More Info

Overview

Details for CA2KN22G7

The CA2KN22G7 120v Control Relay from Schneider Electric (Square D) is designed to provide reliable control in a wide range of industrial applications. With two normally open (NO) and two normally closed (NC) contacts, it offers versatile switching capabilities. Its compact design makes it suitable for space-constrained environments. The relay operates at 120 volts, making it compatible with standard industrial power systems. Additional technical specifications include: Number of Poles: 4 Coil Voltage: 120 volts Contact Rating: 10 amps Mounting Type: Panel mount Dimensions: 1.87" x 1.5" x 3.25" Our HVAC supply store offers the CA2KN22G7 Control Relay at competitive prices with fast shipping. We are your trusted source for industrial electrical products. Order now to enhance the reliability and efficiency of your control systems. TeSys K control relay, 4 contacts (2NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 120V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).

Specifications

range: TeSys
product name: TeSys CAK
Product or Component Type: Control relay
device short name: CA2K
contactor application: Control circuit
utilisation category: DC-13;AC-15
pole contact composition: 2 NO + 2 NC
[Ue] rated operational voltage: <= 690 V <= 400 Hz
control circuit type: AC 50/60 Hz
[Uc] control circuit voltage: 120 V AC 50/60 Hz
[Ith] conventional free air thermal current: 10 A 122 °F (50 °C)
Irms rated making capacity: 110 A IEC 60947
associated fuse rating: 10 A gG IEC 60947;10 A gG VDE 0660
[Ui] rated insulation voltage: 690 V IEC 60947;750 V VDE 0110 group C;690 V BS 5424;600 V CSA C22.2 No 14
Mounting Support: Rail;Plate
connections - terminals: screw clamp terminals 1 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 2 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 1 0.00…0.01 in² (0.75…4 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.01 in² (0.75…4 mm²)flexible without cable end;screw clamp terminals 1 0.00…0.00 in² (0.34…1.5 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.00 in² (0.34…1.5 mm²)flexible without cable end
tightening torque: 11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm;11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 0.24 in (6 mm);11.51 lbf.in (1.3 N.m) screw clamp terminals pozidriv No 2
control circuit voltage limits: Drop-out 0.2...0.75 Uc 122 °F (50 °C));Operational 0.8...1.15 Uc 122 °F (50 °C))
operating time: 10...20 ms coil de-energisation and NO opening;10...20 ms coil energisation and NO closing;15...25 ms coil de-energisation and NC closing;5...15 ms coil energisation and NC opening
mechanical durability: 10 Mcycles
maximum operating rate: 10000 cyc/h
immunity to microbreaks: 2 ms
inrush power in VA: 30 VA 68 °F (20 °C))
hold-in power consumption in VA: 4.5 VA 68 °F (20 °C))
heat dissipation: 1.3 W
minimum switching voltage: 17 V
minimum switching current: 5 mA
non overlap distance: 0.02 in (0.5 mm)
insulation resistance: > 10 MOhm
Height: 2.28 in (58 mm)
Width: 1.77 in (45 mm)
Depth: 2.24 in (57 mm)
Net Weight: 0.40 lb(US) (0.18 kg)
standards: BS 5424;IEC 60947;NF C 63-140;VDE 0660
Product Certifications: UL;CSA;UKCA
IP degree of protection: IP2x
protective treatment: TC IEC 60068
Ambient air temperature for operation: -13…122 °F (-25…50 °C)
Ambient Air Temperature for Storage: -58…176 °F (-50…80 °C)
operating altitude: 6561.68 ft (2000 m) without derating
flame retardance: V1 conforming to UL 94;Requirement 2 conforming to NF F 16-101;Requirement 2 conforming to NF F 16-102
mechanical robustness: Vibrations contactor open2 Gn;5...300 Hz IEC 60068-2-6;Vibrations contactor closed4 Gn;5...300 Hz IEC 60068-2-6;Shocks contactor open10 Gn for 11 ms IEC 60068-2-27;Shocks contactor closed15 Gn for 11 ms IEC 60068-2-27
Category: 22371-RELAYS;CONTROL
Discount Schedule: I12
GTIN: 3389110120721
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.56 in (6.5 cm)
Package 1 Width: 1.85 in (4.7 cm)
Package 1 Length: 2.40 in (6.1 cm)
Package 1 Weight: 6.35 oz (180.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 50
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 20.84 lb(US) (9.455 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 800
Package 3 Height: 30.31 in (77.0 cm)
Package 3 Width: 31.50 in (80.0 cm)
Package 3 Length: 23.62 in (60.0 cm)
Package 3 Weight: 350.49 lb(US) (158.98 kg)
Warranty: 18 months
