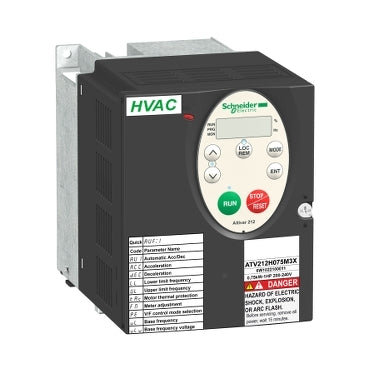

ATV212H075N4 | Altivar 212 VFD, 1 hp/2.2 amps, 400/480 VAC Three Phase Input/Three Phase Output, IP20 Housing (Replaces the Altivar21) | Schneider Electric (Square D)

Schneider Electric (Square D) VFD 480VAC 1HP ATV212H075N4 The Schneider Electric (Square D) ATV212H075N4 is a Variable Frequency Drive (VFD) designed to control the speed and torque of a 1HP electric motor running on 480VAC power. This VFD offers precise motor control, making it suitable for a range of industrial applications. Key features of the ATV212H075N4 VFD include: * Input voltage range of 480VAC * Output frequency range of 0.1-599Hz * Output current rating of 0.75kW (1HP) * Built-in EMC filter for compliance with electromagnetic compatibility regulations * Compact design for easy installation in space-constrained environments The ATV212H075N4 VFD provides advanced control features, including: * Sensorless vector control for precise speed and torque regulation * Built-in PID controller for process control applications * Multiple operating modes, including open-loop and closed-loop control * Programmable inputs and outputs for flexible integration with other systems With its robust design and advanced features, the Schneider Electric (Square D) ATV212H075N4 VFD is a reliable and efficient solution for controlling electric motors in industrial applications. Our HVAC supply store offers a wide selection of VFDs and other industrial automation products at competitive prices. Contact us today for a quote on the ATV212H075N4 VFD or other products you need for your next project. This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 0.75kW / 1hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 2kg and its dimensions are, 107mm wide, 143mm high, 150mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It can also be mounted directly on a 35 mm wide DIN rail, thanks to the kit VW3A31852, to order separately. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.

device short name

ATV212

product destination

Asynchronous motors

Phase

3 phase

motor power kW

0.75 kW

Maximum Horse Power Rating

1 hp

supply voltage limits

323…528 V

supply frequency

50...60 Hz - 5...5 %

line current

1.4 A 480 V;1.7 A 380 V

Range of Product

Altivar 212

Product or Component Type

Variable speed drive

Product Specific Application

Pumps and fans in HVAC

communication port protocol

Modbus;METASYS N2;APOGEE FLN;LonWorks;BACnet

[Us] rated supply voltage

380...480 V - 15...10 %

EMC filter

Class C2 EMC filter integrated

IP degree of protection

IP21

apparent power

1.6 kVA 380 V

continuous output current

2.2 A 380 V;2.2 A 460 V

maximum transient current

2.4 A 60 s

speed drive output frequency

0.5…200 Hz

speed range

1…10

speed accuracy

+/- 10 % of nominal slip 0.2 Tn to Tn

local signalling

for DC bus energized 1 LED (red)

output voltage

<= power supply voltage

isolation

Electrical between power and control

type of cable

Without mounting kit 1 IEC cable 113 °F (45 °C);copper 90 °C / XLPE/EPR;Without mounting kit 1 IEC cable 113 °F (45 °C);copper 70 °C / PVC;With UL Type 1 kit 3 UL 508 cable 104 °F (40 °C);copper 75 °C / PVC

electrical connection

VIA;VIB;FM;FLA;FLB;FLC;RY;RC;F;R;RES terminal 0.00 in² (2.5 mm²) / AWG 14;L1/R;L2/S;L3/T terminal 0.01 in² (6 mm²) / AWG 10

tightening torque

11.51 lbf.in (1.3 N.m);11.5 lb.in L1/R;L2/S;L3/T);5.31 lbf.in (0.6 N.m) VIA;VIB;FM;FLA;FLB;FLC;RY;RC;F;R;RES)

supply

Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %;<10 A overload and short-circuit protection;Internal supply 24 V DC 21…27 V);<200 A overload and short-circuit protection

sampling duration

2 ms +/- 0.5 ms F discrete;2 ms +/- 0.5 ms R discrete;2 ms +/- 0.5 ms RES discrete;3.5 ms +/- 0.5 ms VIA analog;22 ms +/- 0.5 ms VIB analog

response time

FM 2 ms +/- 0.5 ms analog;FLA;FLC 7 ms +/- 0.5 ms discrete;FLB;FLC 7 ms +/- 0.5 ms discrete;RY;RC 7 ms +/- 0.5 ms discrete

accuracy

+/- 0.6 % VIA) for a temperature variation 60 °C;+/- 0.6 % VIB) for a temperature variation 60 °C;+/- 1 % FM) for a temperature variation 60 °C

linearity error

VIA +/- 0.15 % of maximum value input;VIB +/- 0.15 % of maximum value input;FM +/- 0.2 % output

analogue output type

FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits;FM switch-configurable current 0...20 mA 970 Ohm 10 bits

discrete output type

Configurable relay logic FLA;FLC) NO - 100000 cycles;Configurable relay logic FLB;FLC) NC - 100000 cycles;Configurable relay logic RY;RC) NO - 100000 cycles

minimum switching current

3 mA 24 V DC configurable relay logic

maximum switching current

5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL;R);5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL;R);2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL;R);2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL;R)

discrete input type

F programmable 24 V DC level 1 PLC 4700 Ohm;R programmable 24 V DC level 1 PLC 4700 Ohm;RES programmable 24 V DC level 1 PLC 4700 Ohm

discrete input logic

Positive logic (source) F;R;RES);<= 5 V;>= 11 V;Negative logic (sink) F;R;RES);>= 16 V;<= 10 V

dielectric strength

3535 V DC between earth and power terminals;5092 V DC between control and power terminals

insulation resistance

>= 1 mOhm 500 V DC for 1 minute

frequency resolution

Display unit 0.1 Hz;Analog input 0.024/50 Hz

Communication Service

Read device identification (43);Time out setting from 0.1 to 100 s;Write single register (06);Write multiple registers (16) 2 words maximum;Monitoring inhibitable;Read holding registers (03) 2 words maximum

option card

Communication card LonWorks

power dissipation in W

55 W

air flow

5019.36 Gal/hr(US) (19 m3/h)

functionality

Mid

specific application

HVAC

Variable speed drive application selection

Compressor for scroll Building - HVAC;Fan Building - HVAC;Pump Building - HVAC

Motor power range AC-3

0.55…1 kW 380…440 V 3 phase;0.55…1 kW 480…500 V 3 phase

motor starter type

Variable speed drive

discrete output number

2

analogue input number

2

analogue input type

VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits;VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits;VIB configurable PTC probe 0...6 probes 1500 Ohm;VIA switch-configurable current 0...20 mA 250 Ohm 10 bits

analogue output number

1

physical interface

2-wire RS 485

Connector Type

1 open style;1 RJ45

Transmission Rate

9600 bps or 19200 bps

transmission frame

RTU

number of addresses

1…247

data format

8 bits;1 stop;odd even or no configurable parity

type of polarization

No impedance

asynchronous motor control profile

Voltage/frequency ratio;automatic IR compensation (U/f + automatic Uo);Voltage/frequency ratio - Energy Saving;quadratic U/f;Voltage/frequency ratio;2 points;Flux vector control without sensor;standard;Voltage/frequency ratio;5 points

torque accuracy

+/- 15 %

transient overtorque

120 % of nominal motor torque +/- 10 % 60 s

acceleration and deceleration ramps

Automatic based on the load;Linear adjustable separately from 0.01 to 3200 s

motor slip compensation

Not available in voltage/frequency ratio motor control;Automatic whatever the load;Adjustable

switching frequency

6...16 kHz adjustable;12...16 kHz with derating factor

nominal switching frequency

12 kHz

braking to standstill

By DC injection

Network Frequency

47.5...63 Hz

prospective line Isc

5 kA

protection type

Overheating protection drive;The
