9080LBA362104 | Power distribution block, Linergy, 3 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V | Schneider Electric (Square D)

Schneider Electric (Square D) | 9080LBA362104

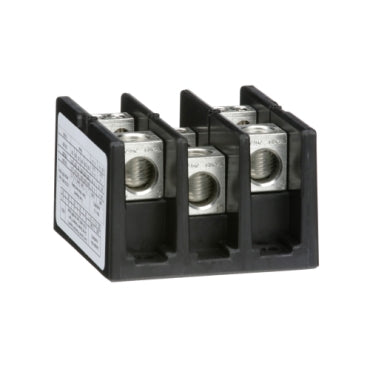

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9080LBA362104

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9080LBA362104 Documents

More Info

Overview

Details for 9080LBA362104

Schneider Electric (Square D) 9080LBA362104 Power Distributor Block: The Schneider Electric (Square D) 9080LBA362104 is a POWER DISTRIBUTOR BLOCK. Our HVAC supply store offers the best prices and fast shipping for your products! Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and four lug openings on the load (branch) side. The line side lug is rated to accept one #14 to 2/0 copper or aluminum wires. Each load side lug is rated to accept one #14 to #4 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 175 amperes with copper wire and 135 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact thermoplastic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Specifications

Range: 9080LB
Product: Power Distribution Block
Current Rating: 175 A copper;135 A aluminium
Short Circuit Current Rating: 65 kA
Voltage Rating: 600 V AC/DC
Mounting Type: Surface mount
number of poles: 3
Terminals per Pole: 1 line;4 load
Wire Size: Line 4;AWG 14...AWG 2/0;copper or aluminium;Load 2;AWG 14...AWG 4;copper or aluminium
Electrical Connection: Tin plated aluminium lugs
SCCR: 100 kA UL 508 A
Ambient air temperature for operation: -40…302 °F (-40…150 °C)
Block Material: Phenolic block
Terminal Tightening Torque: Line lug 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium;Line lug 35 lbf.in (3.95 N.m) AWG 12...AWG 10 copper or aluminium;Line lug 35 lbf.in (3.95 N.m) AWG 14 copper;Line lug 120 lbf.in (13.56 N.m) AWG 6...AWG 2/0 copper or aluminium;Load lug 120 lbf.in (13.56 N.m) AWG 14...AWG 4 copper
wire stripping length: Line 0.5 in (12.70 mm);Load 0.44 in (11.18 mm) top;Load 0.75 in (19.05 mm) bottom
Height: 2.88 in (73.15 mm)
Width: 1.94 in (49.28 mm)
Depth: 1.78 in (45.21 mm)
End Barrier: 9080LB23
Net Weight: 0.49 lb(US) (0.22 kg)
Certifications: CSA file 70361 class 6228 01;UL recognized E60616 CCN XCFR2;CE
Category: 21711-9080 LB
Discount Schedule: CP1
GTIN: 785901097457
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.70 in (4.318 cm)
Package 1 Width: 2.70 in (6.858 cm)
Package 1 Length: 2.80 in (7.112 cm)
Package 1 Weight: 7.84 oz (222.26 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 24
Package 2 Height: 7.50 in (19.05 cm)
Package 2 Width: 6.40 in (16.256 cm)
Package 2 Length: 12.20 in (30.988 cm)
Package 2 Weight: 12.67 lb(US) (5.747 kg)
Unit Type of Package 3: BB1
Number of Units in Package 3: 4
Package 3 Height: 2.20 in (5.588 cm)
Package 3 Width: 5.90 in (14.986 cm)
Package 3 Length: 6.10 in (15.494 cm)
Package 3 Weight: 32.80 oz (929.864 g)
Warranty: 18 months
