9038CG36Z20 | Float Switch: 575 VAC 1HP Type C + Options | Schneider Electric (Square D)

Schneider Electric (Square D) | 9038CG36Z20

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9038CG36Z20

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9038CG36Z20 Documents

Datasheet More Info

Overview

Details for 9038CG36Z20

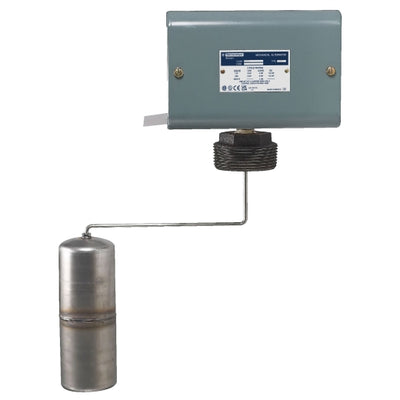

CloseOnRise Left Pos. Float Sw. Designed for industrial applications, our NCO-9038CG36Z20 CloseOnRise Left Pos. Float Sw is engineered to provide reliable performance and durability. This float switch features a robust construction, ensuring it can withstand harsh industrial environments. Its compact design allows for easy installation in various applications. The switch is commonly used in industrial settings to monitor and control liquid levels in tanks, reservoirs, and other liquid-containing vessels. Its precise operation and reliable performance make it a valuable asset for maintaining optimal fluid levels in industrial processes. Shop our HVAC supply store today for the best prices and fast shipping!

Specifications

Range of product: Square D Pumptrol
Product or component type: Mechanical alternator
device application: Closed tank with bushing
device short name: 9038C
Product specific application: Mechanically alternating the operation of two pumps or motors
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 8 knock-outs for 1/2" or 3/4"conduit conforming to UL 508
Contacts type and composition: 4 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…121 °C
Sea water at specific gravity of 0.85 in or higher -18…121 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…121 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…121 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 4.75...9.25 in adjustable
Float position: Left
Float rod angle: 90° (offset)
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Stainlesss steel 304
Viton
Yellow brass
Cast iron
Stainless steel 316
Enclosure material: Painted cold-rolled steel
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 8 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 4.06 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float
Rod
Float switch
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: CSA file LR25490
UL listed file E12158
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 23.9 cm
Package 1 Width: 27.9 cm
Package 1 Length: 31.0 cm
Package 1 Weight: 3.82 kg
Warranty: 18 months
