9038CG35 | Float Switch: 575 VAC 1HP Type C + Options | Schneider Electric (Square D)

Schneider Electric (Square D) | 9038CG35

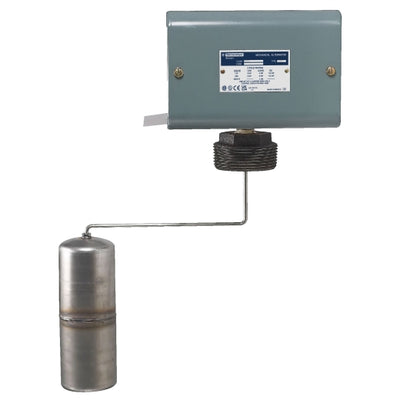

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9038CG35

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9038CG35 Documents

Datasheet More Info

Overview

Details for 9038CG35

CLOSED TANK ALT. NEMA 1 by Schneider Electric (Square D) (SKU: 9038CG35) The Schneider Electric (Square D) CLOSED TANK ALT. NEMA 1 is a specialized electrical component designed to enhance the safety and efficiency of industrial operations. This alternative enclosure option offers NEMA 1 compliance, providing protection against dust, falling dirt, and light splashing water. Its rugged construction ensures durability in harsh industrial environments, while its compact design allows for easy installation in tight spaces. The closed tank configuration minimizes contamination and ensures reliable operation in demanding conditions. Key Features: - NEMA 1-rated enclosure for superior protection against dust, dirt, and water - Robust construction for enhanced durability - Compact design for easy installation - Engineered by Schneider Electric (Square D) for industry-leading reliability Applications: - Industrial machinery and equipment - Manufacturing and processing facilities - Outdoor applications requiring protection from the elements - Harsh environments with exposure to dust, dirt, or water Our HVAC supply store offers the best prices and fast shipping on all your electrical supply needs. Contact us today to learn more about the Schneider Electric (Square D) CLOSED TANK ALT. NEMA 1 and to get a quote. Elevate your industrial operations with our unbeatable products and exceptional service!

Specifications

Range of product: Square D Pumptrol
Product or component type: Mechanical alternator
device application: Closed tank with bushing
device short name: 9038C
Product specific application: Mechanically alternating the operation of two pumps or motors
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 8 knock-outs for 1/2" or 3/4"conduit conforming to UL 508
Contacts type and composition: 4 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…104 °C
Sea water at specific gravity of 0.85 in or higher -18…104 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…104 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…104 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 4.75...9.25 in adjustable
Float position: Right
Float rod angle: 90° (offset)
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Cast iron
Stainless steel 316
Yellow brass
Nitrile (Buna-N) or equivalent rubber
Stainlesss steel 304
Enclosure material: Painted cold-rolled steel
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 8 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 2.81 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float switch
Rod
Float
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 29.871 cm
Package 1 Width: 11.76 cm
Package 1 Length: 75.872 cm
Package 1 Weight: 2.812 kg
Warranty: 18 months
